Multiplexes up to sixteen independent T1 or E1 circuits ■
from copper links onto one fiber link
10/100/1000 copper Ethernet service multiplexed with ■
T1/E1 circuits
Small Form Pluggable (SFP) or fixed fiber transceivers, ■
in standard and CWDM wavelengths
Supports multimode, single-mode dual fiber and single- ■
mode single-fiber
Remotely-managed configuration and testing enables ■
rapid deployment
Management via local serial port, Telnet, or SNMP ■
Configurable alarm relay contacts for audio/visual fault ■
notification
Supports local and remote fiber and copper loop-back ■
modes
Commercial (0 to 50º C ) and wide (-40 to 60º C) ■
operating temperature ranges
Lifetime Warranty and free 24/7 Technical Support ■
iConverter
T1/E1 MUX/M
Managed T1/E1 Multiplexer

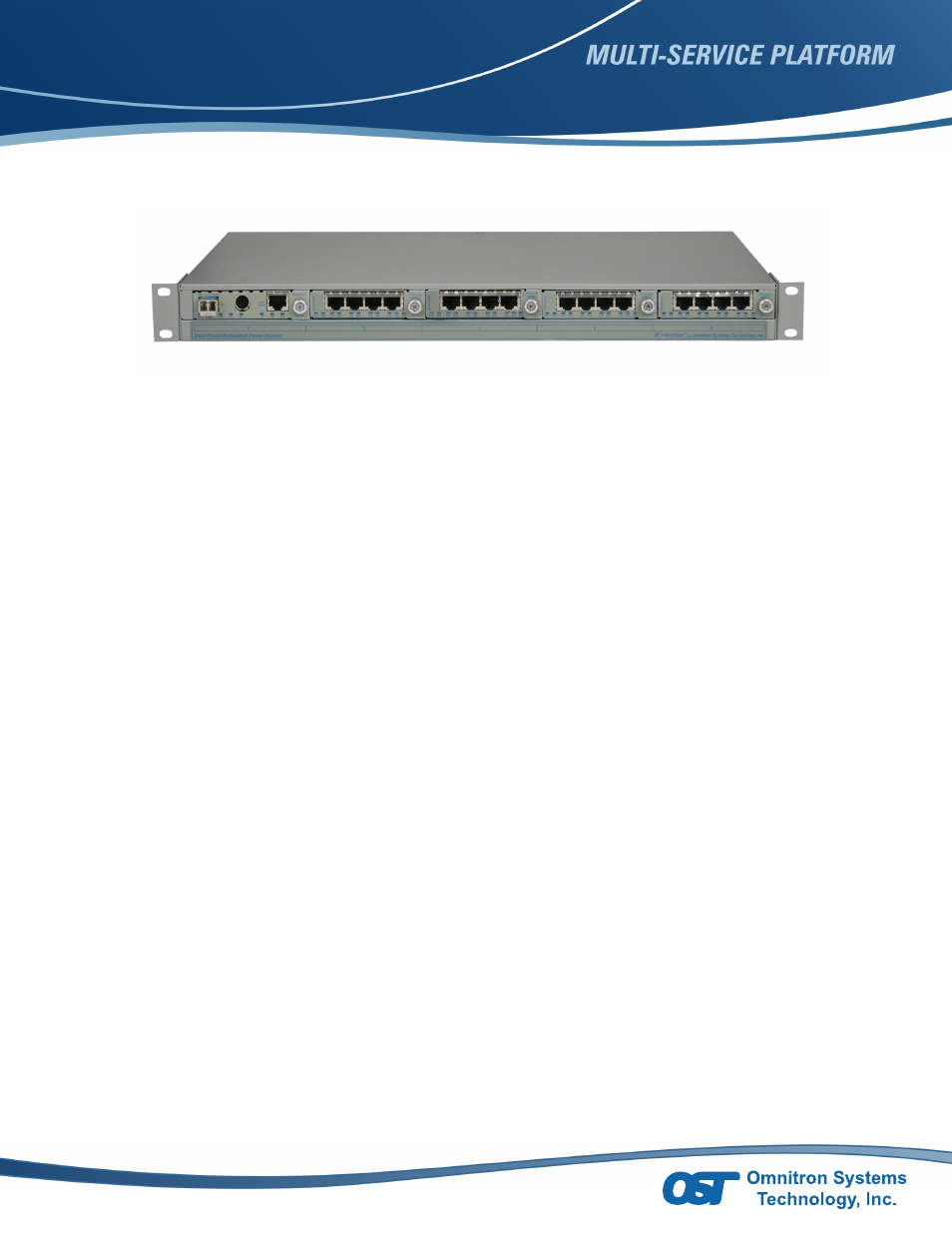

The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or
E1 circuits and one 10/100/1000 Ethernet service onto a fiber
optic transport link, and features remotely managed testing
and configuration capabilities.
The iConverter T1/E1 MUX/M operates in a back-to-back
configuration, and can be used in applications such as multiple
T1/E1 extension, mobile backhaul and building-to-building
PBX connectivity.
The T1/E1 copper interfaces are available in 4, 8, 12 or 16
RJ-48 port configurations for balanced T1/E1 applications.
Optional adapter cables are available to convert each RJ-
48 interface to a BNC interface for unbalanced E1 transport
applications.
Additional hot-swappable 4-Port T1/E1 MUX modules can
be installed to increase system capacity up to 16 T1/E1 ports
maximum per 1U (1.75 inch) chassis.
The T1/E1 MUX/M is available with fixed-fiber or Small Form
Pluggable (SFP) transceivers, enabling easy adaptability to
different fiber types, distances and wavelengths. The T1/E1
MUX/M supports multimode, single-mode, single-mode single-
fiber in standard (850nm, 1310nm and 1550nm) and CWDM
wavelengths.
The T1/E1 MUX/M features user-selectable local loop-back
on both the copper and fiber ports, remote fiber loop-back
and circuit test modes. These features facilitate testing of
the remote unit, and minimize the need for test equipment
and support personnel. Alarm relays and LEDs provide fault
notification for loss of power, LOS and AIS.
Configuration of T1/E1 line codes, line build out, loopbacks
and circuit test is accomplished via local serial port, Telnet,
SNMP, or DIP-switches.
The 1U high iConverter T1/E1 MUX/M chassis can be mounted
in a 19-inch or 23-inch rack and features two load-sharing
power supplies. It supports hot-swappable universal AC,
24VDC or 48VDC power supplies for power redundancy.
