1.5.2 Out-of-Band Managed 4-Port Switch Application

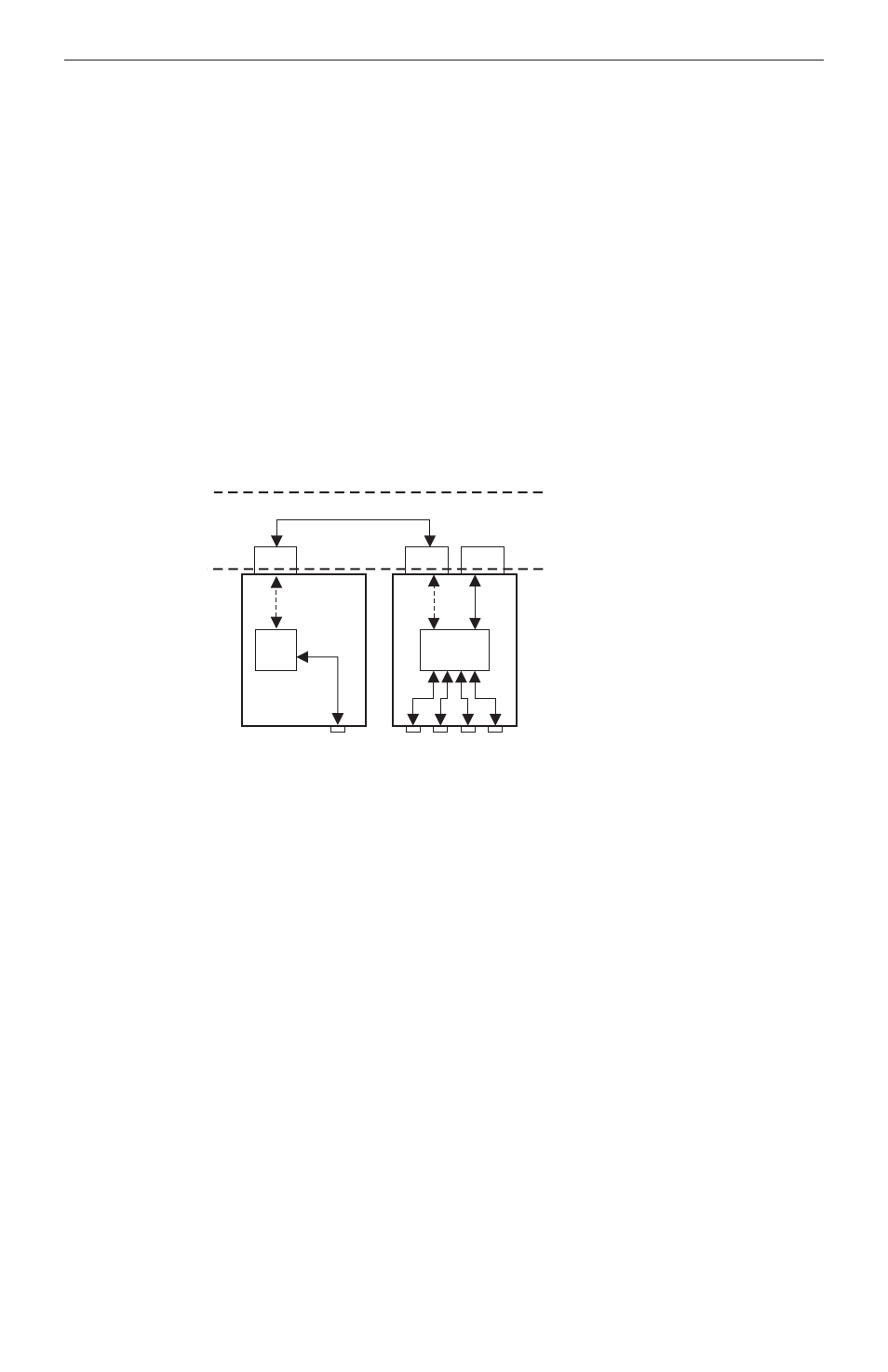

Fig 4. Depicts a typical managed switch application.
This application uses a 4TxVT 4-Port 10/100 switch module and an
iConverter
Network
Management Module (NMM) for management. Both modules are plugged into the
2-Module chassis.
The 4TxVT features four front-plane 10/100BASE-T UTP Ethernet ports and two
10/100Mbps Ethernet backplane ports (A and B Ports).
The NMM features a 10BASE-T front-plane port and a 10Mbps Ethernet backplane
A Port.
Out-of-band management is provided by connecting to the front-plane port on the NMM
module. The management data is separate from the user data on the 4TxVT.
This configuration provides the network administrator with the ability to efficiently and
cost effectively manage a small (4-port) workgroup switch.
4TxVT Module
Internal
10/100
switch chip
4-port 10/100 UTP
Switch
NMM Module
NMM
NMM UTP
10 port
“A” Link
Chassis
Backplane
Note that the
2-Module Chassis
does not include
the B Backplane Link
A Port
A Port
B Port
Fig. 4 Managed 4-Port Switch Application
2.0 UNPACKING, VISUAL INSPECTION AND INVENTORY
Review contents. The following items should be included:
iConverter
2-Module Power Chassis
One AC power cord (AC MODULES ONLY)
One DC power connector (DC MODULES ONLY)
User Manual
Inspect equipment and immediately report any damage or discrepancies to Omnitron
at 949-250-6510. If equipment is damaged, do not apply power to the equipment.
