RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|5
No. of pos. A B
Dim. C
(Type 1)
Dim. C
(Type 2)
D Ø E
09 31.00 25.00 35.50 50.50 14.80 12.10
15 39.40 33.30 40.00 55.00 14.80 12.10
25 53.20 47.04 40.00 55.00 14.80 12.10
37 69.60 63.50 40.00 55.00 14.80 12.10
50 67.00 61.10 42.00 57.00 17.80 14.60
D-SUB Hoods and Accessories
Description
Order data

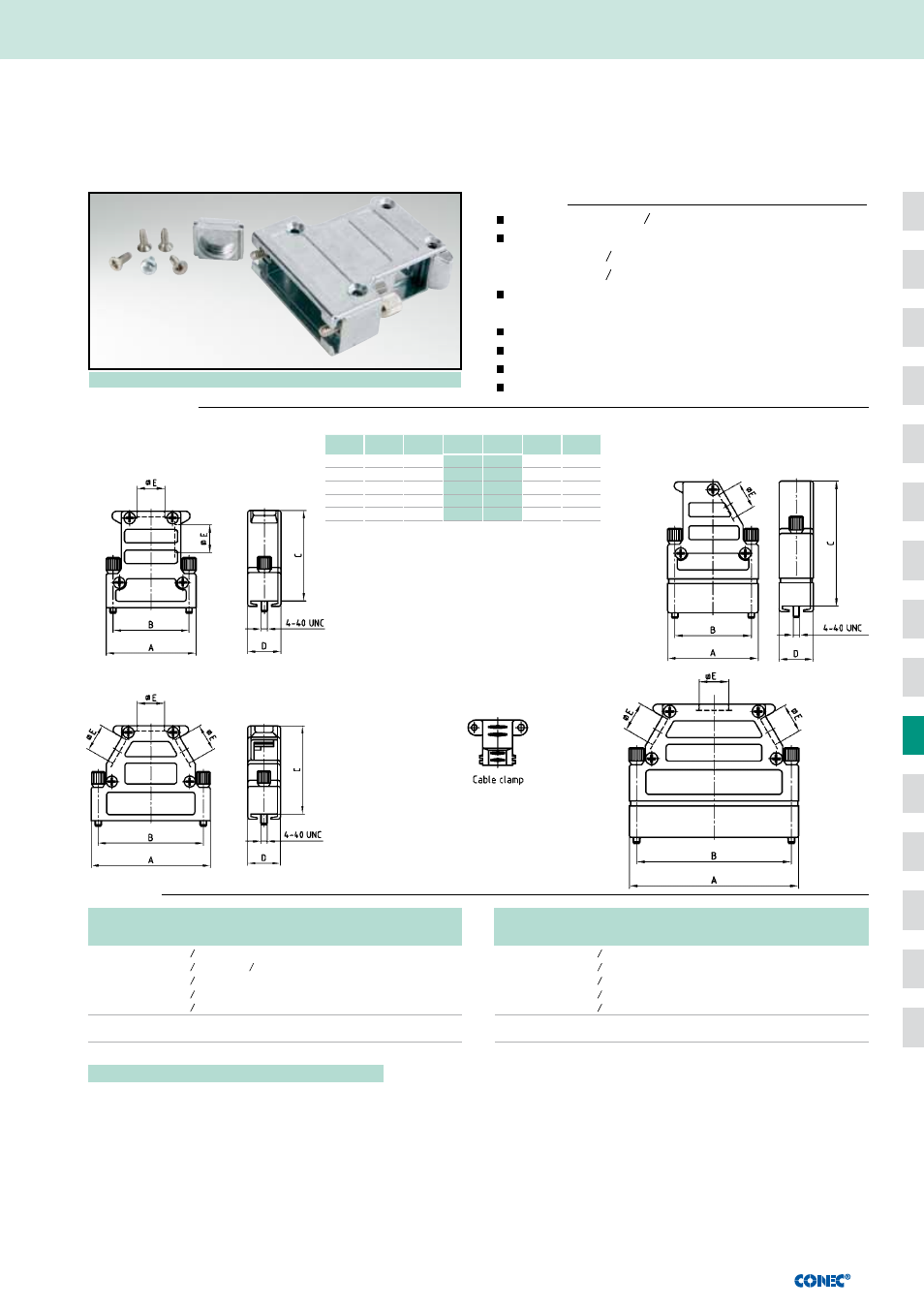

Product drawing
D-SUB Metal Hood
Variable cable entries – 9-50 pos. – Jack screws
Zinc die-cast hood, EMI RFI shielding
Two designs:
- Type 1: 1.575“ 40 mm height
- Type 2: 2.165“ 55 mm height
Delivery includes: Hood, blanking plugs, screws for assembly
grounding screws, 4-40 UNC jack screws
Cable clamp must be ordered separately
Crimp fitting and crimp tool please contact factory
Bulk or single packaged units
M3 thread design for jack screws available on request
9-15 pos.
25-50 pos. 25-50 pos.
9-15 pos.
D-SUB Metal hood – Variable cable entries – jack screw – Type 2
No. of pos. Design Part Number
09 Housing One side cable entry 165 X 14409 X
15 Housing One side cable entry 165 X 14419 X
25 Housing Three cable entries 165 X 14429 X
37 Housing Three cable entries 165 X 14439 X
50 Housing Three cable entries 165 X 14449 X
09-37 Cable clamp 160 X 11189 X
50 Cable clamp 160 X 11199 X
D-SUB Metal hood – Variable cable entries – jack screw – Type 1
No. of pos. Design Part Number
09 Housing One straight cable entry 165 X 11609 X
15 Housing One straight One side cable entry 165 X 11619 X
25 Housing Three cable entries 165 X 11629 X
37 Housing Three cable entries 165 X 11639 X
50 Housing Three cable entries 165 X 11649 X
09-37 Cable clamp 160 X 11189 X
50 Cable clamp 160 X 11199 X
Type 1: max. installation height 42 mm Type 2: max. Installation height 57 mm
For single packaged add the letter „E“ at the end of the part number.
