No. of pos. A B C D E Ø F
09 31.80 25.00 39.50 42.40 15.40 5.00
15 40.30 33.30 41.00 43.50 15.40 5.00
25 54.00 47.00 45.00 47.70 15.40 7.00
37 70.20 63.50 48.00 50.40 15.40 7.00
50 67.80 61.10 48.00 50.40 18.50 9.30
D-SUB Hoods and Accessories
Description
Order data

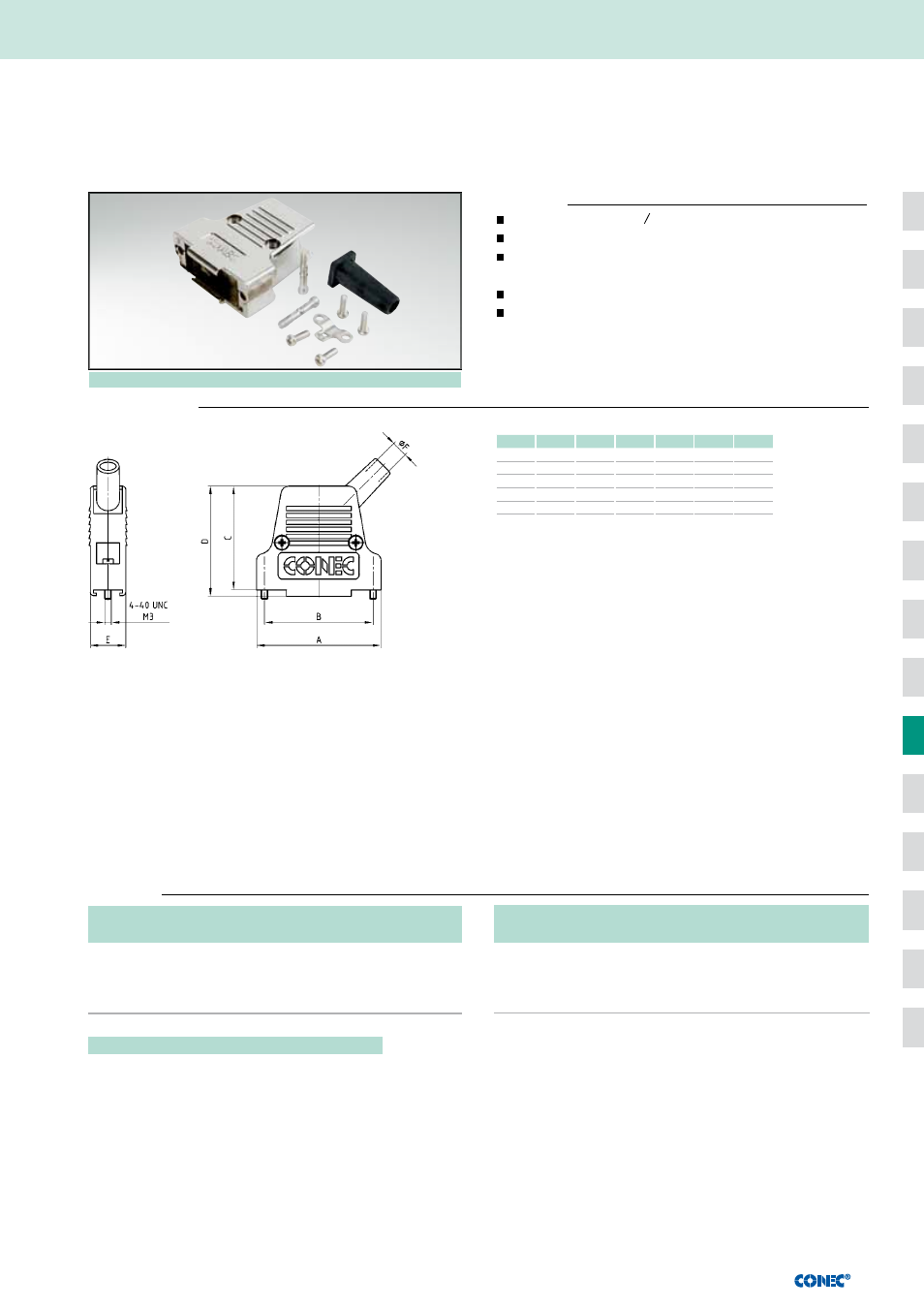

Product drawing
D-SUB Metal hood – Short screw
No. of pos. Design 4-40 UNC Part Number
09 Short screw 165 X 17559 X
15 Short screw 165 X 17569 X
25 Short screw 165 X 17579 X
37 Short screw 165 X 17589 X
50 Short screw 165 X 17599 X
Zinc die-cast hood, EMI RFI shielding
Cable sleeve
Fastening:
- short screws 4-40 UNC or M3 thread
Housing nickel plated
Bulk or single packaged units
D-SUB Metal hood – Short screw
No. of pos. Design M3 Part Number
09 Short screw 165 X 17609 X
15 Short screw 165 X 17619 X
25 Short screw 165 X 17629 X
37 Short screw 165 X 17639 X
50 Short screw 165 X 17649 X
D-SUB Metal Hood
Side cable entry – 9-50 pos.
For single packaged add the letter „E“ at the end of the part number.
