RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|36
Shellsize A B C Ø D E F G H Cable Ø
1 40.76 25.00 SW 22 24.60 51.00 22.00 77.00 44.00 5 - 10
2 49.06 33.30 SW 24 26.50 51.00 22.00 79.00 52.00 6 - 12
3 62.80 47.04 SW 24 26.50 59.50 22.00 87.50 52.00 6 - 12
4 78.86 63.50 SW 33 36.20 67.00 22.00 99.00 52.00 9 - 16
5 76.46 61.10 SW 42 47.00 67.00 24.80 107.00 52.00 13 - 20
D-SUB Hoods and Accessories
Description
Order data

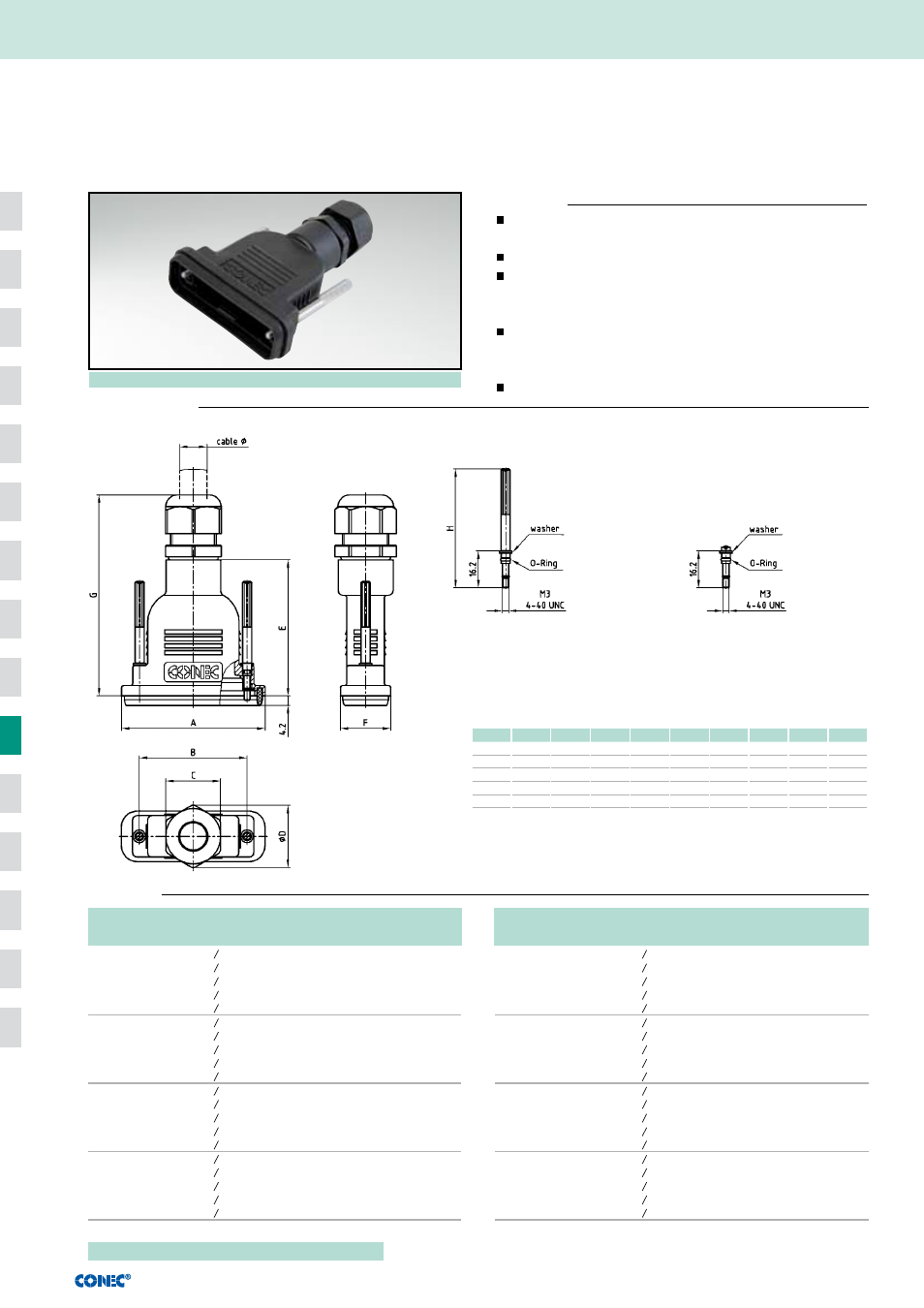

Product drawing
D-SUB Plastic Hood IP67
Straight cable entry – 9-50 pos.
Water resistant hood for Standard D-SUB and Combination
D-SUB Connectors
With large internal space for high power and coaxial contacts
Material:
- Plastic hood black: PBT + Glas filled, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
- M3 or 4-40 UNC short screws stainless steel
- M3 or 4-40 UNC jack screws stainless steel
Bulk or single packaged units
Jack screw Short screw
D-SUB Plastic hood – Black
No. of pos. Design Part Number
09 Black housing M3 Jack screw 165 X 15119 X
15 Black housing M3 Jack screw 165 X 15129 X
25 Black housing M3 Jack screw 165 X 15139 X
37 Black housing M3 Jack screw 165 X 15149 X
50 Black housing M3 Jack screw 165 X 15159 X
09 Black housing 4-40 UNC Jack screw 165 X 14819 X
15 Black housing 4-40 UNC Jack screw 165 X 14829 X
25 Black housing 4-40 UNC Jack screw 165 X 14839 X
37 Black housing 4-40 UNC Jack screw 165 X 14849 X
50 Black housing 4-40 UNC Jack screw 165 X 14859 X
09 Black housing M3 Short screw 165 X 15169 X
15 Black housing M3 Short screw 165 X 15179 X
25 Black housing M3 Short screw 165 X 15189 X
37 Black housing M3 Short screw 165 X 15199 X
50 Black housing M3 Short screw 165 X 15209 X
09 Black housing 4-40 UNC Short screw 165 X 14869 X
15 Black housing 4-40 UNC Short screw 165 X 14879 X
25 Black housing 4-40 UNC Short screw 165 X 14889 X
37 Black housing 4-40 UNC Short screw 165 X 14899 X
50 Black housing 4-40 UNC Short screw 165 X 14909 X
D-SUB Plastic hood – Metallized
No. of pos. Design Part Number
09 Metallized housing M3 Jack screw 165 X 15319 X
15 Metallized housing M3 Jack screw 165 X 15329 X
25 Metallized housing M3 Jack screw 165 X 15339 X
37 Metallized housing M3 Jack screw 165 X 15349 X
50 Metallized housing M3 Jack screw 165 X 15359 X
09 Metallized housing 4-40 UNC Jack screw 165 X 15019 X
15 Metallized housing 4-40 UNC Jack screw 165 X 15029 X
25 Metallized housing 4-40 UNC Jack screw 165 X 15039 X
37 Metallized housing 4-40 UNC Jack screw 165 X 15049 X
50 Metallized housing 4-40 UNC Jack screw 165 X 15059 X
09 Metallized housing M3 Short screw 165 X 15369 X
15 Metallized housing M3 Short screw 165 X 15379 X
25 Metallized housing M3 Short screw 165 X 15389 X
37 Metallized housing M3 Short screw 165 X 15399 X
50 Metallized housing M3 Short screw 165 X 15409 X
09 Metallized housing 4-40 UNC Short screw 165 X 15069 X
15 Metallized housing 4-40 UNC Short screw 165 X 15079 X
25 Metallized housing 4-40 UNC Short screw 165 X 15089 X
37 Metallized housing 4-40 UNC Short screw 165 X 15099 X
50 Metallized housing 4-40 UNC Short screw 165 X 15109 X
For single packaged add the letter „E“ at the end of the part number.
