No. of pos. A B C D E Ø F
09 34.00 25.00 25.00 27.75 14.50 8.50
15 42.30 33.30 37.00 39.75 14.50 10.00
25 56.00 47.00 37.00 39.75 14.50 10.50
37 72.50 63.50 37.00 39.75 14.50 10.50
50 67.00 61.10 49.10 51.40 19.80 14.00
D-SUB Hoods and Accessories
Description
Order data

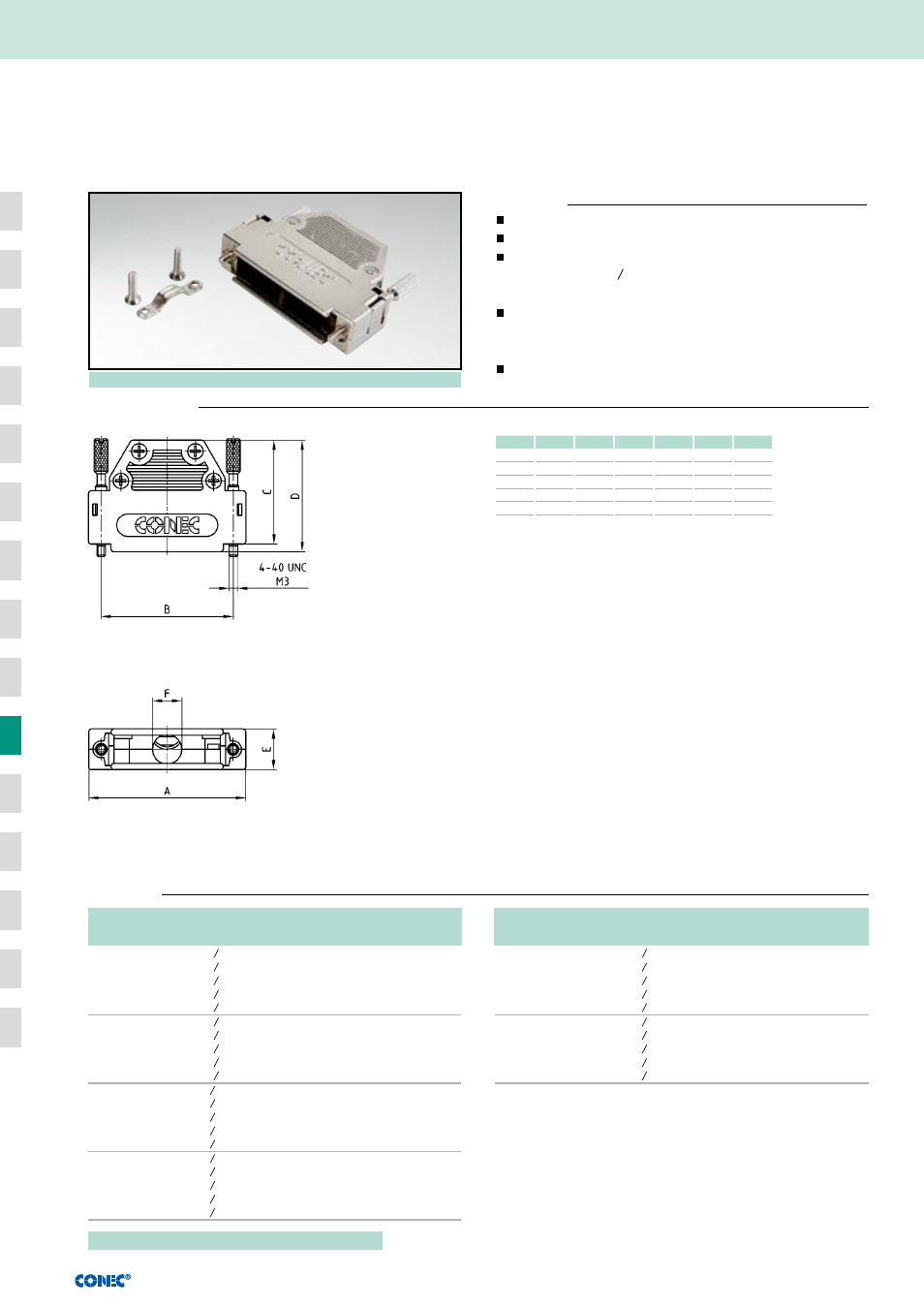

Product drawing
D-SUB Plastic hood – Straight cable entry
No. of pos. Design Part Number
09 Black housing 4-40 UNC Jack screw 165 X 10139 X
15 Black housing 4-40 UNC Jack screw 165 X 10149 X
25 Black housing 4-40 UNC Jack screw 165 X 10159 X
37 Black housing 4-40 UNC Jack screw 165 X 10169 X
50 Black housing 4-40 UNC Jack screw 165 X 10179 X
09 Black housing M3 Jack screw 165 X 10189 X
15 Black housing M3 Jack screw 165 X 10199 X
25 Black housing M3 Jack screw 165 X 10209 X
37 Black housing M3 Jack screw 165 X 10219 X
50 Black housing M3 Jack screw 165 X 10229 X
09 Grey housing 4-40-UNC Jack screw 165 X 14109 X
15 Grey housing 4-40-UNC Jack screw 165 X 14119 X
25 Grey housing 4-40-UNC Jack screw 165 X 14129 X
37 Grey housing 4-40-UNC Jack screw 165 X 14139 X
50 Grey housing 4-40-UNC Jack screw 165 X 14149 X
09 Grey housing M3 Jack screw 165 X 14159 X
15 Grey housing M3 Jack screw 165 X 14169 X
25 Grey housing M3 Jack screw 165 X 14179 X
37 Grey housing M3 Jack screw 165 X 14189 X
50 Grey housing M3 Jack screw 165 X 14199 X
D-SUB Plastic hood – Straight cable entry - Metallized
No. of pos. Design Part Number
09 Metallized housing 4-40 UNC Jack screw 165 X 10909 X
15 Metallized housing 4-40 UNC Jack screw 165 X 10919 X
25 Metallized housing 4-40 UNC Jack screw 165 X 10929 X
37 Metallized housing 4-40 UNC Jack screw 165 X 10939 X
50 Metallized housing 4-40 UNC Jack screw 165 X 10949 X
09 Metallized housing M3 Jack screw 165 X 10959 X
15 Metallized housing M3 Jack screw 165 X 10969 X
25 Metallized housing M3 Jack screw 165 X 10979 X
37 Metallized housing M3 Jack screw 165 X 10989 X
50 Metallized housing M3 Jack screw 165 X 10999 X
D-SUB Plastic Hood
Straight cable entry – 9-50 pos. – With jack screws
Two-part plastic hood
Integrated cable clamping
Material:
- Plastic hood grey black: Polyamide + Glas filled, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
- 4-40 UNC jack screw
- M3 jack screw
Bulk or single packaged units
For single packaged add the letter „E“ at the end of the part number.
