D-SUB Hoods and Accessories
Description
Order data

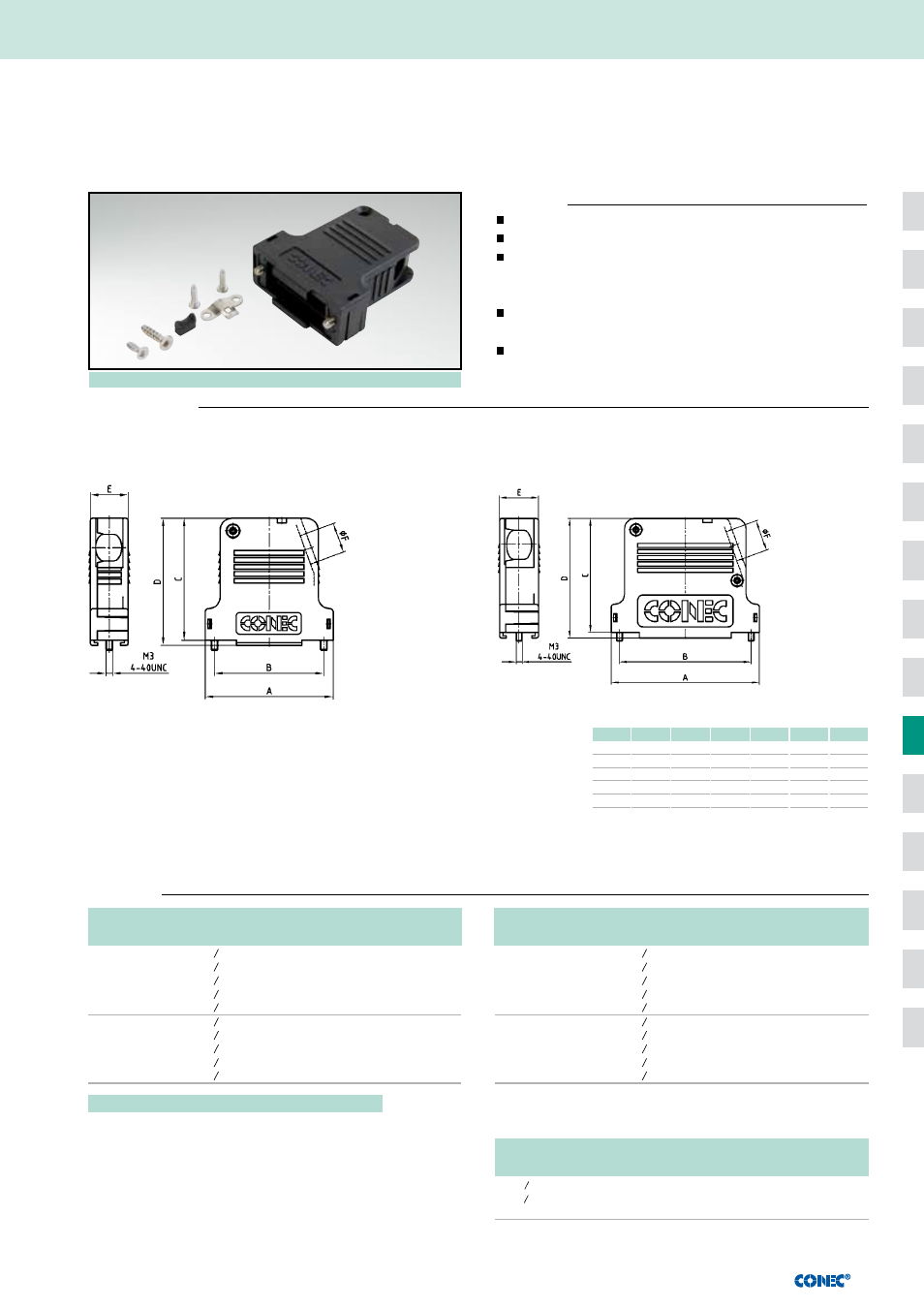

Product drawing
D-SUB Plastic Hood
Side cable entry – 9-50 pos.
Suitable for Combination D-SUB Connectors
Large internal space for crimp, high power and coaxial contacts
Material:
- Plastic hood black: Polyester, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
4-40 UNC or M3 short screw
Bulk or single packaged units
9-25 pos. 37-50 pos
D-SUB Plastic hood black
No. of pos. Design Part Number
09 Black housing 4-40 UNC Short screw 165 X 13419 X
15 Black housing 4-40 UNC Short screw 165 X 13429 X
25 Black housing 4-40 UNC Short screw 165 X 13439 X
37 Black housing 4-40 UNC Short screw 165 X 13449 X
50 Black housing 4-40 UNC Short screw 165 X 13459 X
09 Black housing M3 Short screw 165 X 14559 X
15 Black housing M3 Short screw 165 X 14569 X
25 Black housing M3 Short screw 165 X 14579 X
37 Black housing M3 Short screw 165 X 14589 X
50 Black housing M3 Short screw 165 X 14599 X
D-SUB Plastic hood metallized
No. of pos. Design Part Number
09 Metallized housing 4-40 UNC Short screw 165 X 13519 X
15 Metallized housing 4-40 UNC Short screw 165 X 13529 X
25 Metallized housing 4-40 UNC Short screw 165 X 13539 X
37 Metallized housing 4-40 UNC Short screw 165 X 13549 X
50 Metallized housing 4-40 UNC Short screw 165 X 13559 X
09 Metallized housing M3 Short screw 165 X 14659 X
15 Metallized housing M3 Short screw 165 X 14669 X
25 Metallized housing M3 Short screw 165 X 14679 X
37 Metallized housing M3 Short screw 165 X 14689 X
50 Metallized housing M3 Short screw 165 X 14699 X
Cable grommet
No. of pos. Design Part Number
09 15 Cable grommet for 9 and 15 pos. hood 795-907600
25 37 Cable grommet for 25 and 37 pos. hood 795-907700
50 Cable grommet for 50 pos. hood 795-907800
For single packaged add the letter „E“ at the end of the part number.
