RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|2
No. of pos. A B C D E Ø F
09 31.70 25.00 30.00 32.70 15.00 5.00
15 40.00 33.30 32.00 34.70 15.00 5.00
25 53.70 47.00 35.00 37.70 15.00 7.00
37 70.20 63.50 41.00 43.70 15.00 7.00
50 67.80 61.10 41.00 43.70 17.70 9.30
D-SUB Hoods and Accessories
Description
Order data

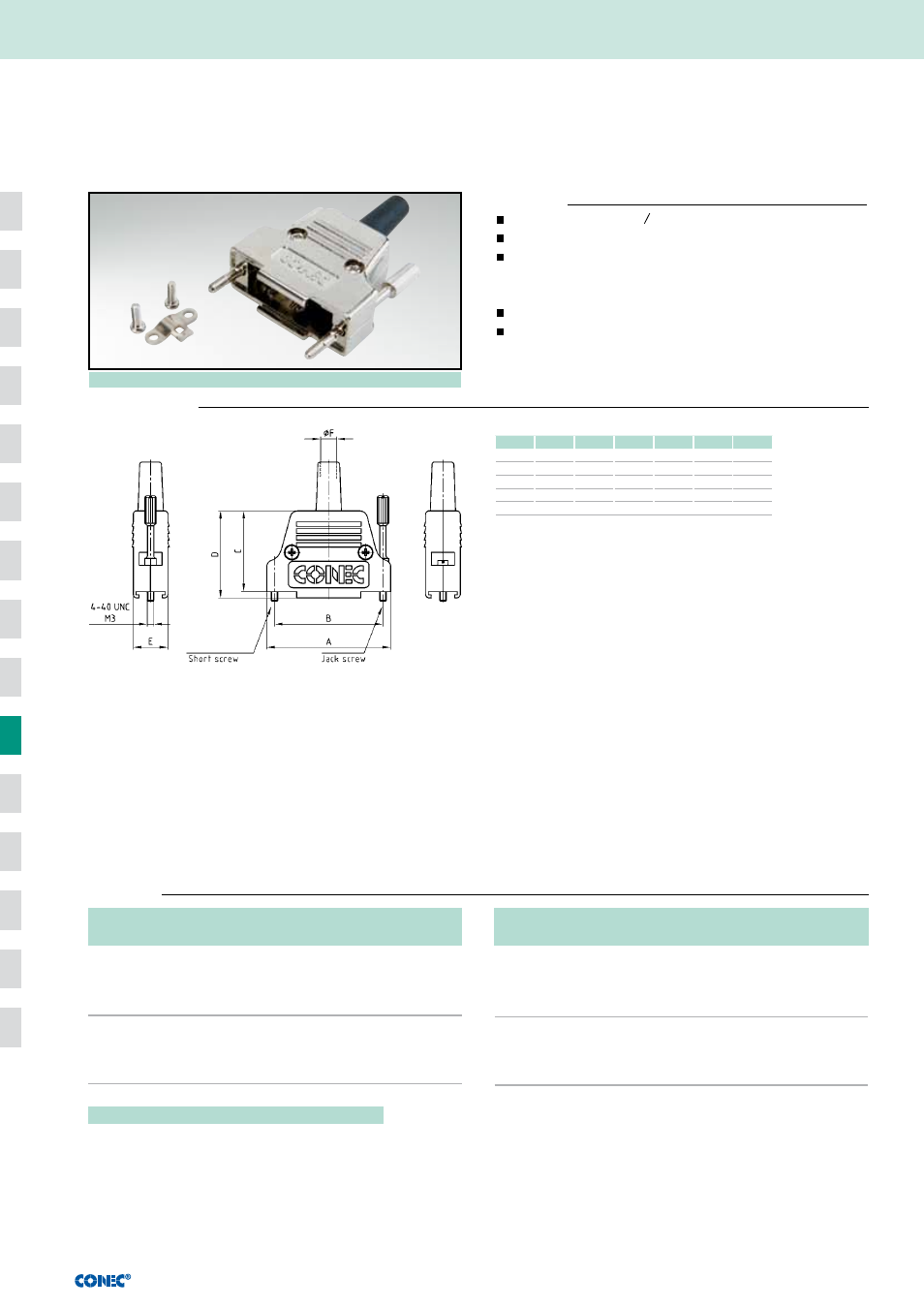

Product drawing
D-SUB Metal Hood
Straight cable entry – 9-50 pos.
D-SUB Metal hood – Short screw
No. of pos. Design Part Number
09 4-40 UNC Short screw 165 X 17409 X
15 4-40 UNC Short screw 165 X 17419 X
25 4-40 UNC Short screw 165 X 17429 X
37 4-40 UNC Short screw 165 X 17439 X
50 4-40 UNC Short screw 165 X 17449 X
09 M3 Short screw 165 X 17459 X
15 M3 Short screw 165 X 17469 X
25 M3 Short screw 165 X 17479 X
37 M3 Short screw 165 X 17489 X
50 M3 Short screw 165 X 17499 X
Zinc die-cast hood, EMI RFI shielding
Cable sleeve
Fastening:
- short screws 4-40 UNC or M3 thread
- jack screws 4-40 UNC or M3 thread
Housing nickel plated
Bulk or single packaged units
D-SUB Metal hood – Jack screw
No. of pos. Design Part Number
09 4-40 UNC Jack screw 165 X 17309 X
15 4-40 UNC Jack screw 165 X 17319 X
25 4-40 UNC Jack screw 165 X 17329 X
37 4-40 UNC Jack screw 165 X 17339 X
50 4-40 UNC Jack screw 165 X 17349 X
09 M3 Jack screw 165 X 17359 X
15 M3 Jack screw 165 X 17369 X
25 M3 Jack screw 165 X 17379 X
37 M3 Jack screw 165 X 17389 X
50 M3 Jack screw 165 X 17399 X
For single packaged add the letter „E“ at the end of the part number.
