RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|51
No. of pos. A B C
09 35.00 27.40 12.00
15 43.30 35.70 11.50
25 57.00 49.40 12.00
37 74.40 65.90 12.00
50 72.00 63.50 15.00

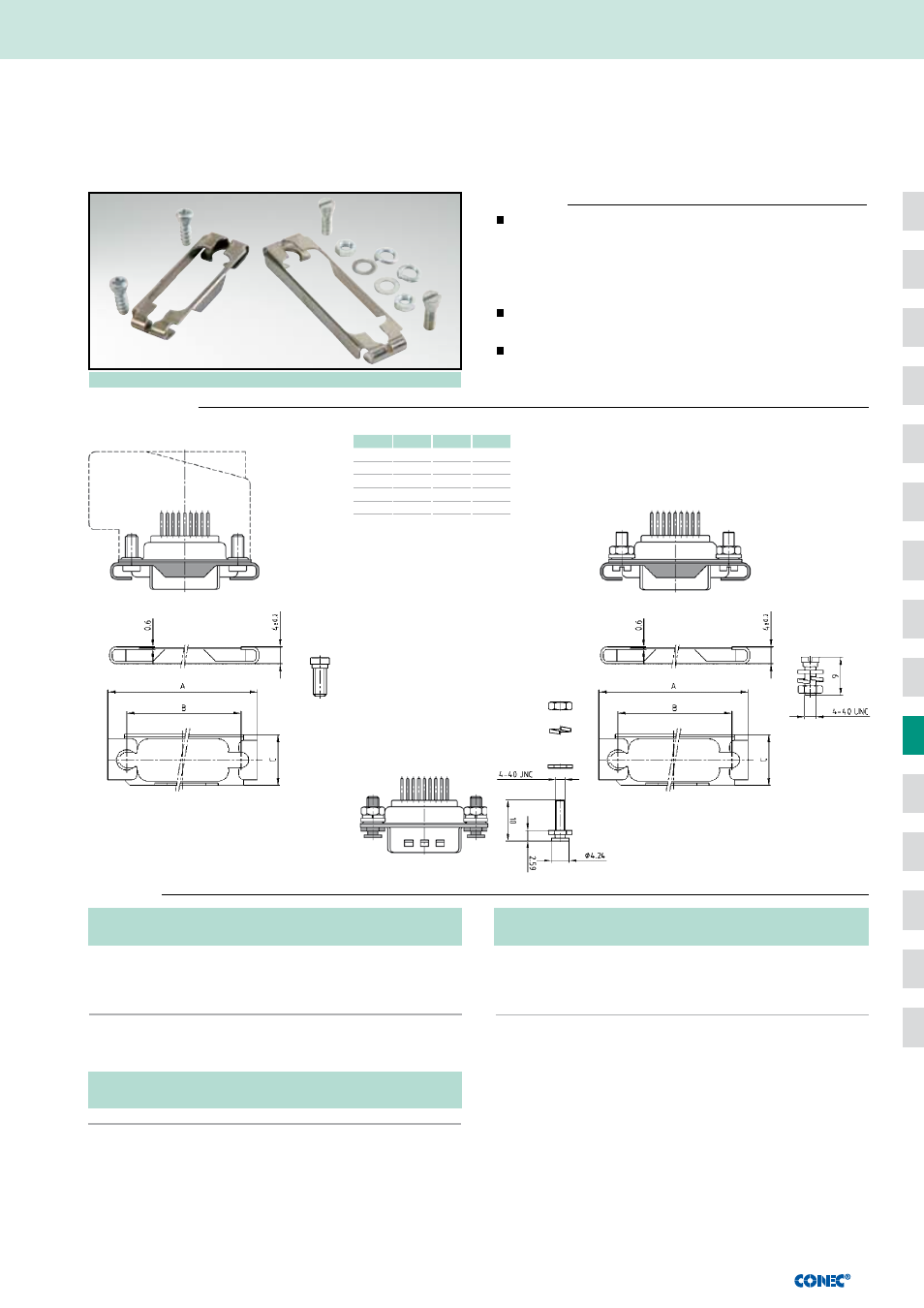

D-SUB Hoods and Accessories
Description
Order data
Product drawing
D-SUB Hardware accessories
Slide lock with holding bolt – Mounting for 9-50 pos.
Slide lock set in two designs:
- Type 3: 1 frame, 2 screws 4-40 UNC, 2 grommets,
2 spring rings, 2 4-40 UNC nuts
- Type 4: 1 frame, 2 4-40 UNC screws,
2 grommets, 2 spring rings, 2 4-40 UNC nuts
Holding bolt set consists of
2 hex bolts, 2 grommets, 2 spring rings, 2 nuts
Bulk packaged
Type 3 Type 4
holding bolt for slide lock
Slide lock Type 3
No. of pos. Design Part Number
09 Slide lock set type 3 160 X 10159 X
15 Slide lock set type 3 160 X 10169 X
25 Slide lock set type 3 160 X 10179 X
37 Slide lock set type 3 160 X 10189 X
50 Slide lock set type 3 160 X 10199 X
Slide lock Type 4
No. of pos. Design Part Number
09 Slide lock set type 4 160 X 10689 X
15 Slide lock set type 4 160 X 10699 X
25 Slide lock set type 4 160 X 10709 X
37 Slide lock set type 4 160 X 10719 X
50 Slide lock set type 4 160 X 10729 X
holding bolt for slide lock
No. of pos. Design Part Number
09 - 50 Slide lock type 3 and type 4 160 X 10209 X
