Northern Connectors Conec D-Sub Hoods & Accessories - Manual (Page 31)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|30
No. of pos. A B C
25 53.20 47.00 35.80
37 69.50 63.50 50.50
D-SUB Hoods and Accessories
Description
Order data

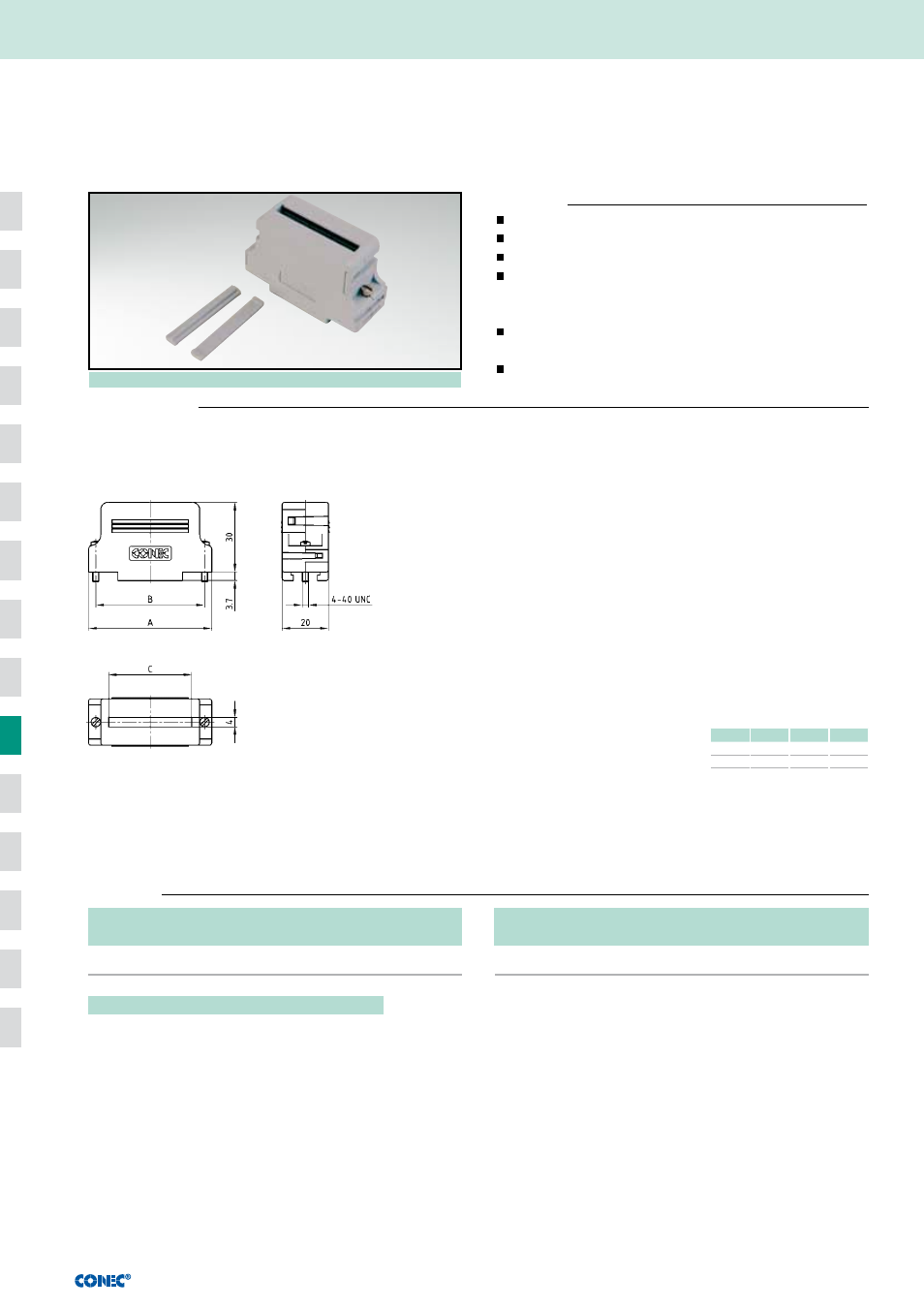

Product drawing
D-SUB Plastic Hood
For flat cable – Snap locking – 25 and 37 pos.
D-SUB Plastic hood
No. of pos. Design Part Number
25 Grey housing 165 X 14029 X
37 Grey housing 165 X 14039 X
D-SUB Plastic hood – Metallized
No. of pos. Design Part Number
25 Metallized housing 165 X 14069 X
37 Metallized housing 165 X 14079 X
Hood for IDC D-SUB Connectors
Quick assembly snap locking feature
Integrated strain relief
Material:
- plastic hood grey: ABS, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
4-40 UNC short screws
Bulk or single packaged units
For single packaged add the letter „E“ at the end of the part number.
