RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|37
No. of pos. A B C
09 09 34.00 25.00 53.00
15 15 41.30 33.30 52.00
25 25 55.60 47.00 53.00
D-SUB Hoods and Accessories
Description
Order data

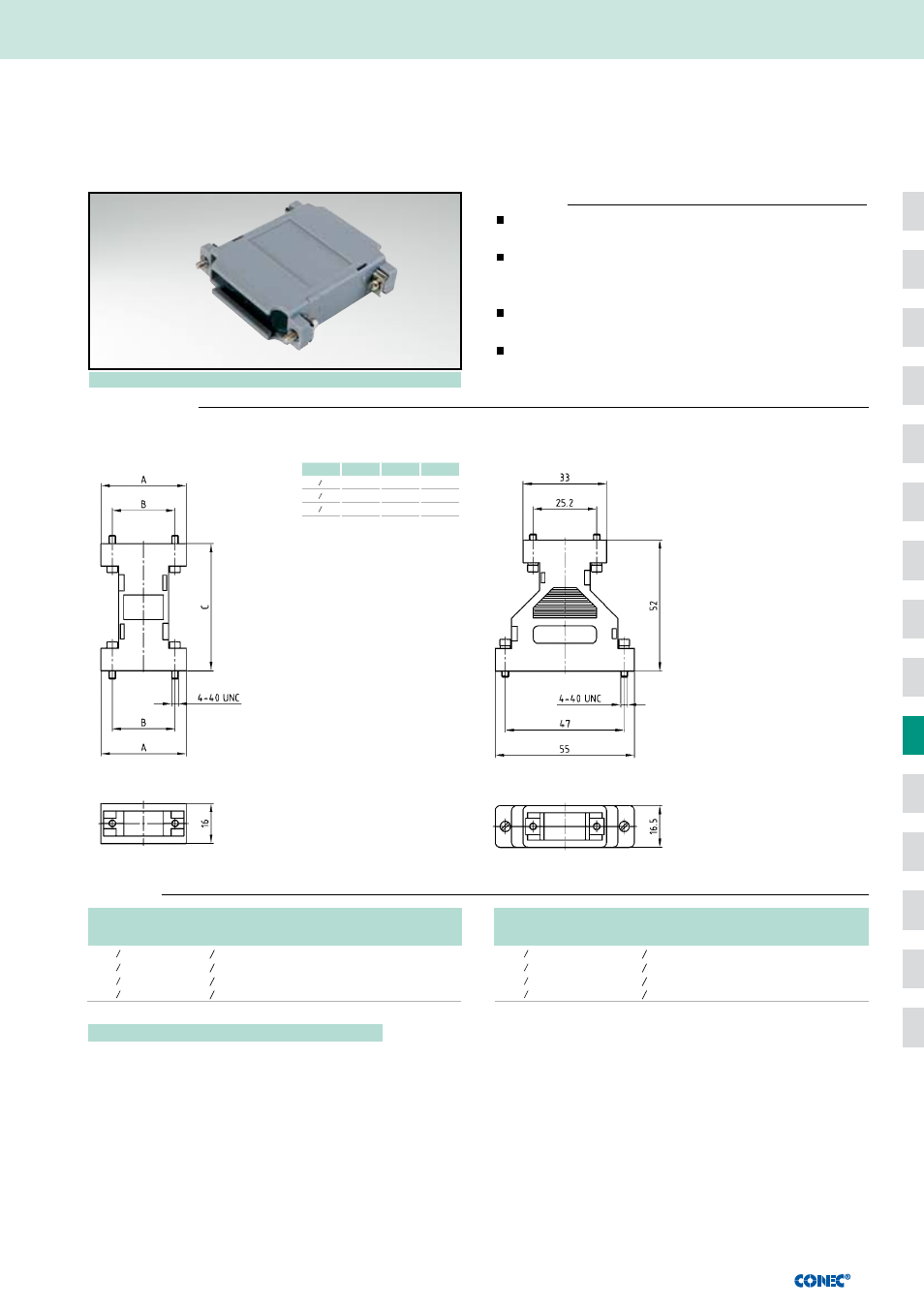

Product drawing
D-SUB Adapter Hood
Plastic design – 9-25 pos.
Adapter hood with large internal space inside for
custom applications
Material:
- Plastic hood grey: ABS, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
4-40 UNC short screws
Bulk or single packaged units
9-25 pos.
D-SUB Adapter hood – Grey
No. of pos. Design 4-40 UNC Part Number
09 09 Grey housing Short screw 300 X 10729 X
15 15 Grey housing Short screw 300 X 10739 X
25 25 Grey housing Short screw 300 X 10749 X
09 25 Grey housing Short screw 300 X 10759 X
D-SUB Adapter hood – Metallized
No. of pos. Design 4-40 UNC Part Number
09 09 Metallized housing Short screw 300 X 10779 X
15 15 Metallized housing Short screw 300 X 10789 X
25 25 Metallized housing Short screw 300 X 10799 X
09 25 Metallized housing Short screw 300 X 10809 X
For single packaged add the letter „E“ at the end of the part number.
