RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
10|25
Ш 11,0
40,0
53,0
47,0
Ш
11,0
D-SUB Hoods and Accessories
Description
Order data

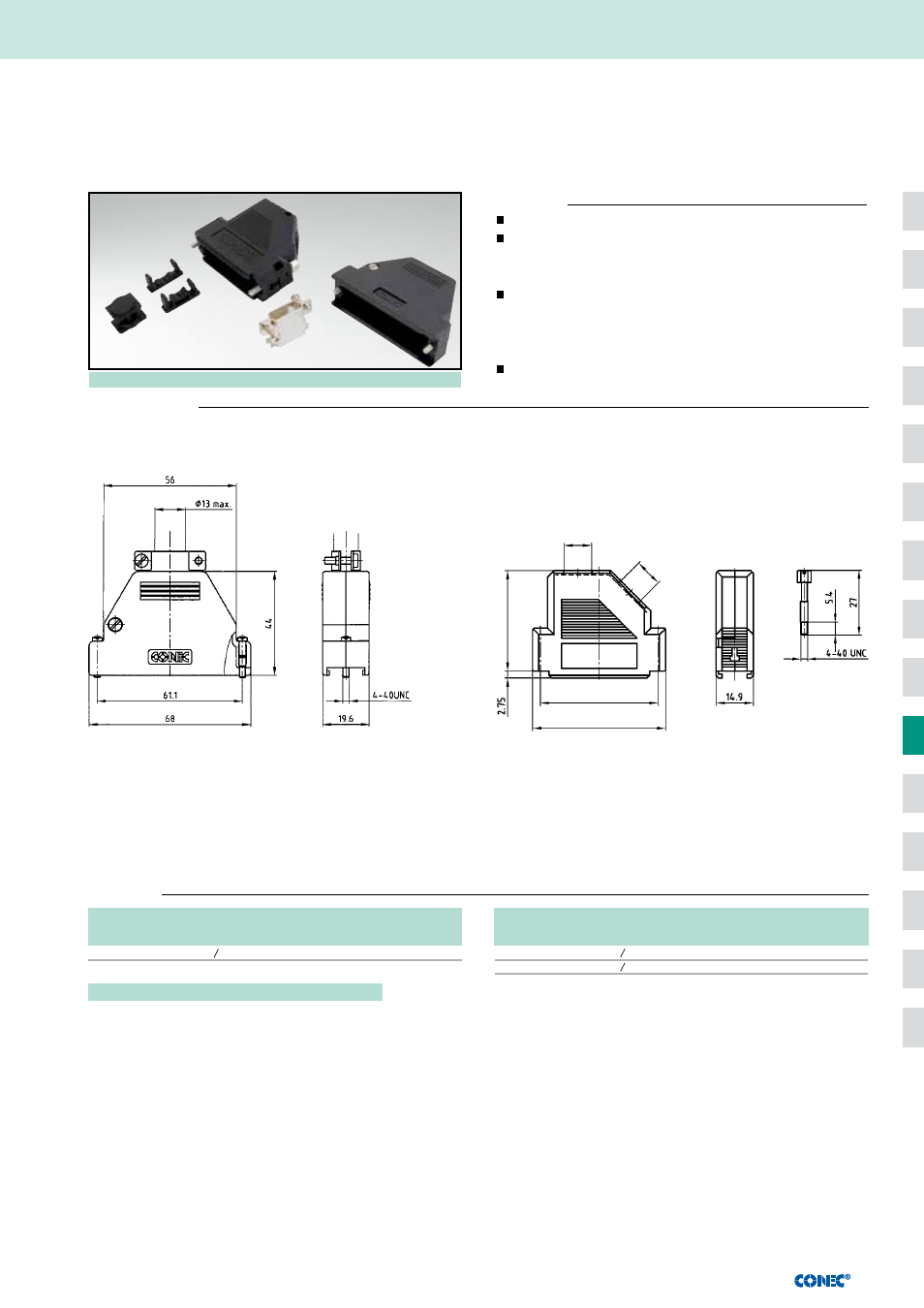

Product drawing
D-SUB Plastic Hood
50 pos. with large cable opening – 25 pos. – Snap locking hood
Large cable opening
50 pos. version
- Plastic hood black: Polyamide 6.6 + Glas filled, UL 94 V-0
- Fastening: 4-40 UNC short screws
25 pos. version with snap locking for simple assembly
- integrated strain relief for several cable diameters
- Plastic hood black: ABS, UL 94 V-0
- Fastening: with or without Jack screws 4-40 UNC
Bulk or single packaged units
25 pos. plastic hood – two cable openings
D-SUB Plastic hood – 25 pos. with Snap locking
No. of pos. Design Part Number
25 Black housing Without jack screws 165 X 11419 X
25 Black housing With 4-40 UNC Jack screw 165 X 11459 X
D-SUB Plastic hood – 50 pos.
No. of pos. Design Part Number
50 Black housing 4-40 UNC Short screw 165 X 13269 X
50 pos. plastic hood with large strain relief
jack screw
For single packaged add the letter „E“ at the end of the part number.
