RoHS compliant
10|47
No. of pos. A -0.2 B +0.2 C -0.2 D +0.2 E +0.5
09 38.36 33.96 20.00 15.60 9.90
15 46.66 42.26 20.00 15.60 9.90
25 60.40 56.00 20.00 15.60 9.90
37 76.86 72.46 20.00 15.60 9.90
50 74.50 70.10 22.80 18.40 9.90
No. of pos. A B C
09 44.56 12.60 25.60
15 52.86 12.60 25.60
25 66.60 12.60 25.60
37 82.66 12.60 25.60
50 80.26 12.60 28.40
D-SUB Hoods and Accessories
Description
Order data
Product drawing

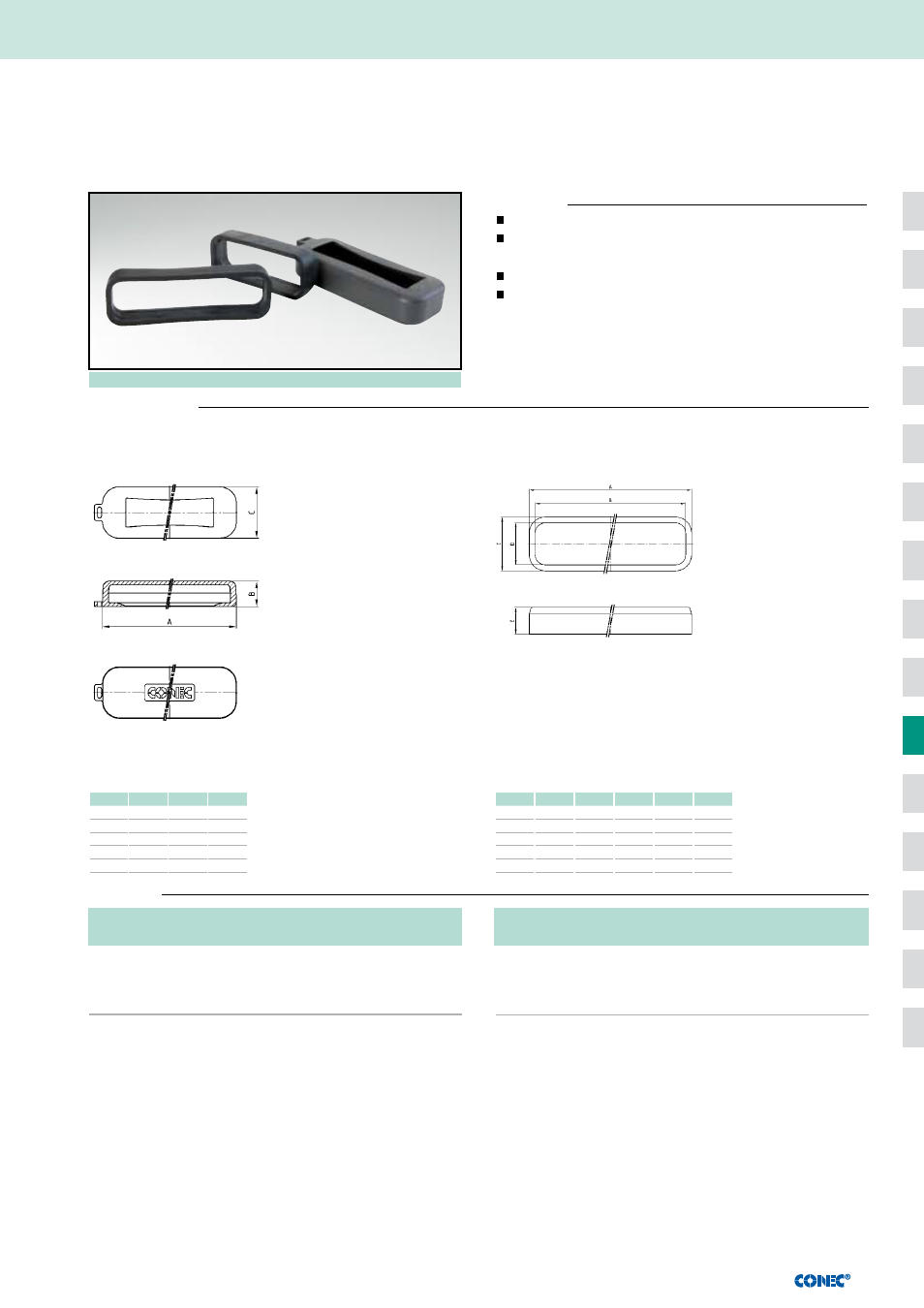

D-SUB Shell – IP67 Accessories
Protection cap and sealing – 9-50 pos. – Gasket refer to page 10|36
Protection cap for use with IP67 hoods
Outside sealing as accessory for IP67 D-SUB Connector
for front panel mounting
Material: TPE
Bulk packaged
Protection cap
No. of pos. Design Part Number
09 Protection cap 165 X 17509 X
15 Protection cap 165 X 17519 X
25 Protection cap 165 X 17529 X
37 Protection cap 165 X 17539 X
50 Protection cap 165 X 17549 X
Outside sealing
No. of pos. Design Part Number
09 Outside sealing 795-305420
15 Outside sealing 795-305490
25 Outside sealing 795-305580
37 Outside sealing 795-305640
50 Outside sealing 795-305710
Outside sealing Protection cap
