10|40
No. of pos. A -0,76 B1 -0,25 B2 +0,25 C D -0,3
09 31.19 16.46 16.79 25.00 6.12
15 39.52 24.79 25.12 33.30 6.12
25 53.42 38.50 38.84 47.04 5.99
37 69.70 54.96 55.30 63.50 5.99
50 67.31 52.55 52.68 61.10 5.99
50 pos. = Dim. in (..)
RoHS compliant
For socket connector For plug connector
D-SUB Hoods and Accessories
Description
Order data

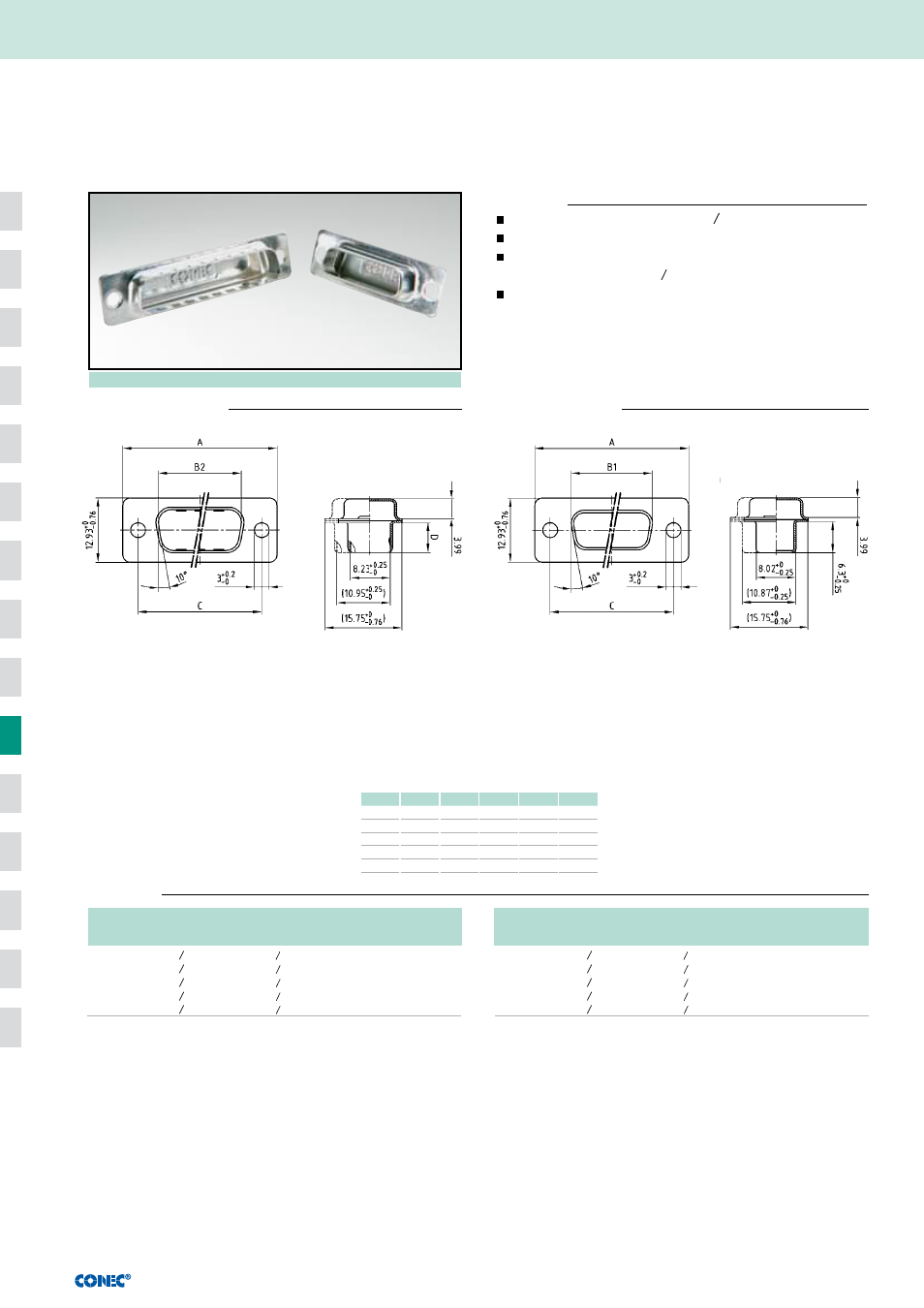

D-SUB Shielded cap
Metal design – Shielded – 9-50 pos. – For use with shell size 1-5
Shielded cap protecting against EMI RFI
Material: Steel tin plated
Mounting style:
with Through-hole Ø .118" 3.00 mm
Bulk packaged
Shielded cap for socket connector
No. of pos. Design Part Number
09 Metal Through-hole Ø .118" 3.00 mm 165 X 12969 X
15 Metal Through-hole Ø .118“ 3.00 mm 165 X 12979 X
25 Metal Through-hole Ø .118“ 3.00 mm 165 X 12989 X
37 Metal Through-hole Ø .118“ 3.00 mm 165 X 12999 X
50 Metal Through-hole Ø .118“ 3.00 mm 165 X 13009 X
Shielded cap for plug connector
No. of pos. Design Part Number
09 Metal Through-hole Ø .118" 3.00 mm 165 X 13129 X
15 Metal Through-hole Ø .118“ 3.00 mm 165 X 13139 X
25 Metal Through-hole Ø .118“ 3.00 mm 165 X 13149 X
37 Metal Through-hole Ø .118“ 3.00 mm 165 X 13159 X
50 Metal Through-hole Ø .118“ 3.00 mm 165 X 13169 X
