10|41
No. of pos. A -0,76 B1 -0,25 B2 +0,25 C D -0,3
09 31.19 16.46 16.79 25.00 6.12
15 39.52 24.79 25.12 33.30 6.12
25 53.42 38.50 38.84 47.04 5.99
37 69.70 54.96 55.30 63.50 5.99
50 67.31 52.55 52.68 61.10 5.99
50 pos. = Dim. in (..)
RoHS compliant
For socket connector For plug connector
D-SUB Hoods and Accessories
Description
Order data

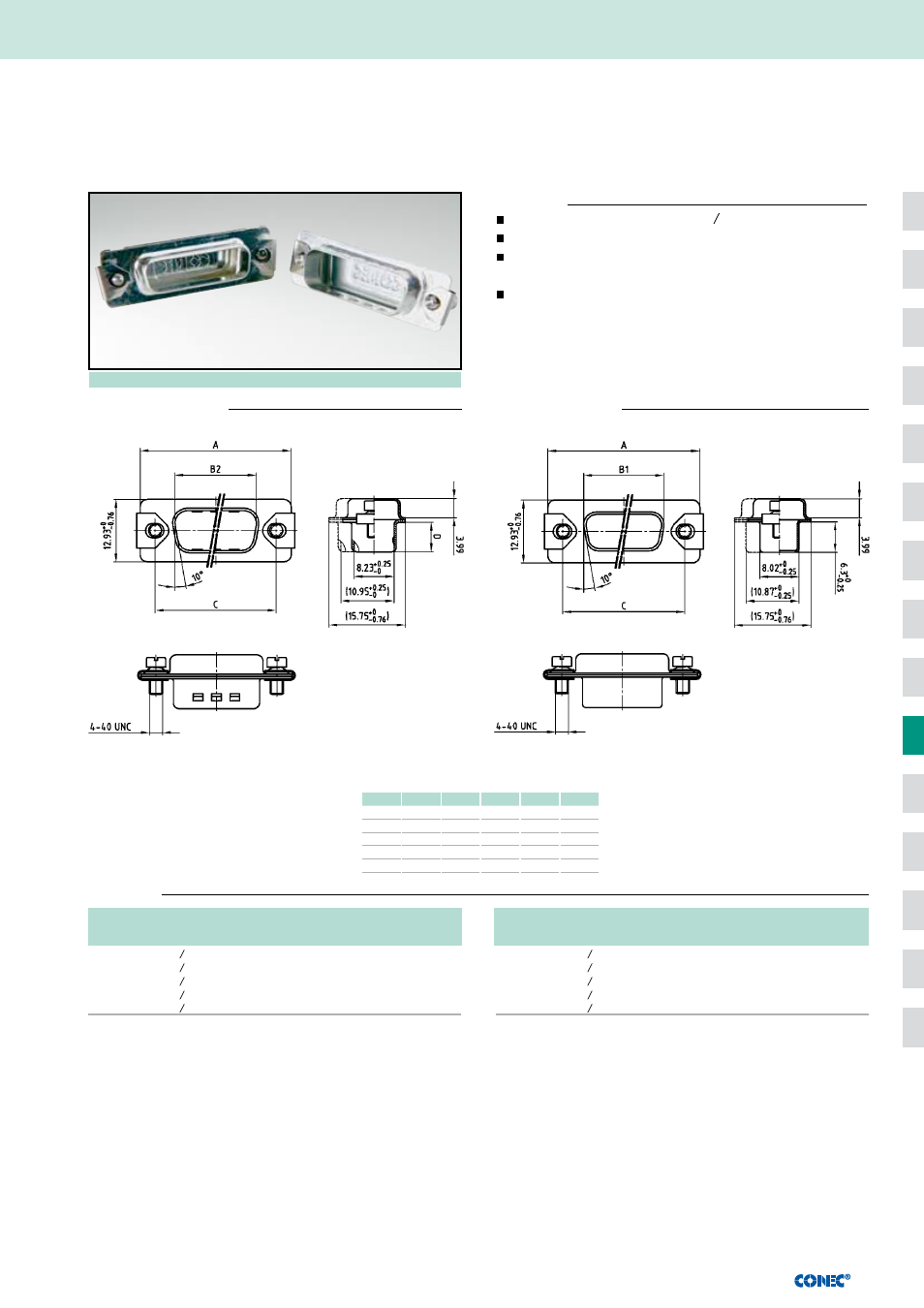

D-SUB Shielded cap
Metal design – Shielded – 9-50 pos. – For use with shell size 1-5 – Fastening screws
Shielded cap protecting against EMI RFI
Material: Steel tin plated
Mounting style:
with 4-40 UNC screw and clip
Bulk packaged
Shielded capfor socket connector
No. of pos. Design 4-40 UNC Part Number
09 Metal Screw and clip 165 X 16719 X
15 Metal Screw and clip 165 X 16729 X
25 Metal Screw and clip 165 X 16739 X
37 Metal Screw and clip 165 X 16749 X
50 Metal Screw and clip 165 X 16759 X
Shielded cap for plug connector
No. of pos. Design 4-40 UNC Part Number
09 Metal Screw and clip 165 X 16769 X
15 Metal Screw and clip 165 X 16779 X
25 Metal Screw and clip 165 X 16789 X
37 Metal Screw and clip 165 X 16799 X
50 Metal Screw and clip 165 X 16809 X
