STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 27
STR46SPVG — MAINTENANCE (ENGINE/TROWEL)
Day-to-day addition of coolant is done from the reservoir
tank. When adding coolant to the radiator, DO NOT remove
the radiator cap until the unit has completely cooled. Make
sure the coolant level in the reservoir tank is always between
the "H" and the "L" markings.
If adding coolant/antifreeze mix to the
radiator, DO NOT remove the radiator cap
until the unit has completely cooled. The
possibility of
hot! coolant exists which
can cause severe burns.
WARNING - BURN HAZARDS
Engine Fan Belt (Yearly)
1. Check the condition of the fan belt periodically, if worn
or damage replace immediately.

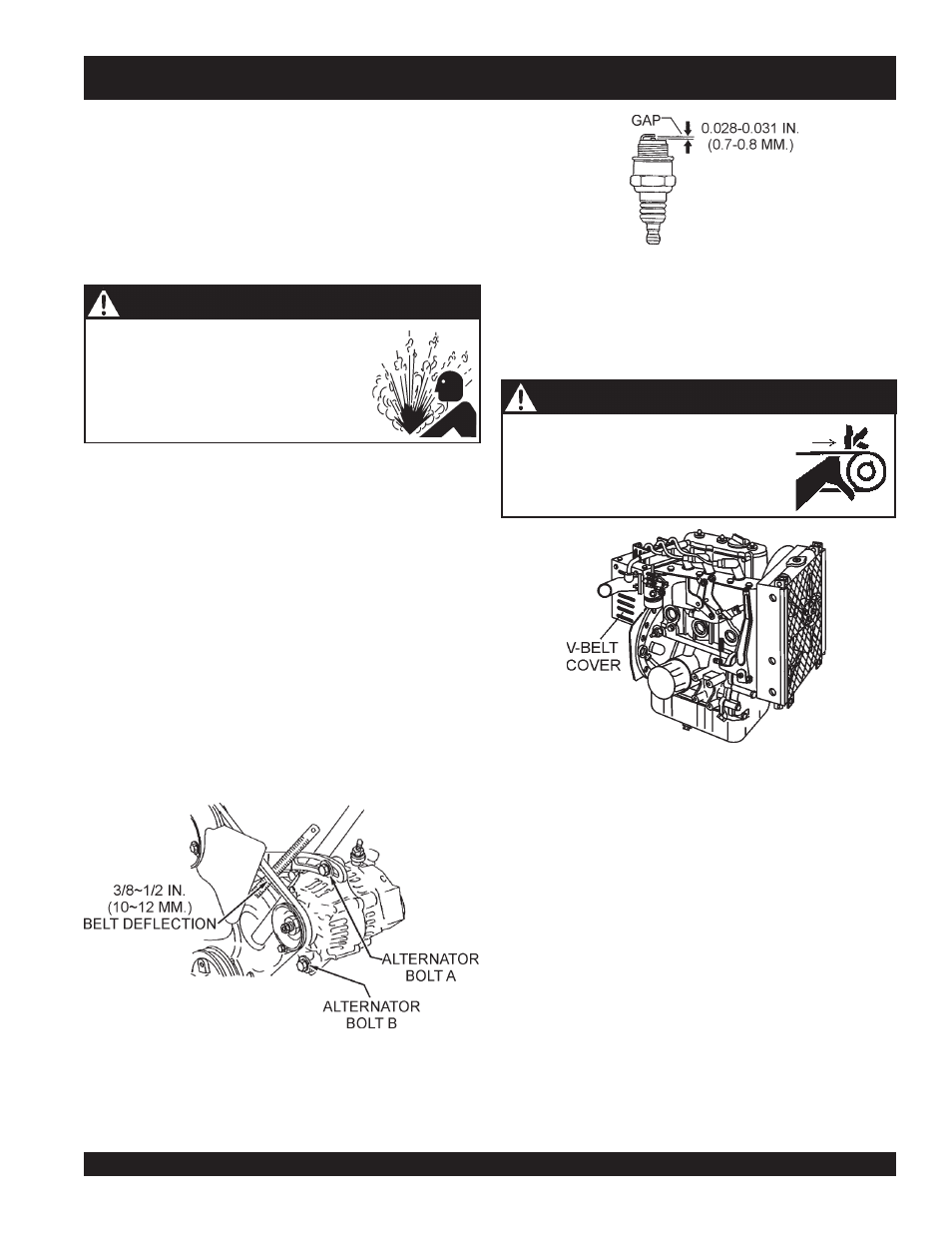

2. For long lasting V-belt life, check fan belt (Figure 15)
for correct tension. There should be between 3/8~1/2-
inch (10~12 mm) deflection at the center point of the V-
belt between the fan and the alternator.
3. Torque alternator bolt A to 14 ft-lbs (195 kg-cm) and
torque alternator bolt B to 45 ft-lbs (622 kg-cm).
Figure 15. V-Belt Deflection
Figure 16. Spark Plug Gap
Spark Plug (Yearly)
1. Remove and clean the spark plug (Figure 16), then adjust
the spark gap to 0.028 ~0.031 inch (0.6~0.7 mm).
Checking Drive V-Belts
In order to inspect the the drive V-belts for signs of wear or,
belt adjustment the V-belt guard cover (Figure 17) must be
removed.
The first indication of belt wear is reduced blade speed despite
the engine running at full speed. Visually inspect the belts
for signs of damage or excessive wear.
Always replace the belt guard after inspecting, adjusting or
replacing the belts.
Drive Belt Tension Adjustment Procedure
Belt tension is adjusted by sliding the entire engine fore and
aft on the trowel, The motor mount plate is slotted to allow
this motion.
To adjust the belt tension, loosen the four engine mounting
bolts, slide the engine forward to tighten the belts or slide
the engine towards the rear of the machine to loosen the
belts. Make sure to tighten the engine mounting bolts after
setting the belt tension.
Figure 17. V-belt Cover Removal
NEVER perform service on the trowel or
insert hands or tools into the belt area
while the engine is running.
CAUTION - Rotating Parts/V-Belt Safety
Radiator/Cooling System
1. Check and clean radiator fins.
2. Check cooling water.
3. Check radiator hoses for fatigue or cracking.
4. Check radiator cap sea.
Refer to your engine manual for additional information.
