STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 22

STR46SPVG — INSPECTION

Fuel

To determine if the engine fuel is low, remove the cap from the
fuel tank and visually inspect the fuel level. If fuel level is low, fill
with unleaded gasoline. Handle fuel safely. Motor fuels are highly
flammable and can be dangerous if mishandled. DO NOT smoke
while refueling. Do not attempt to refuel the ride-on trowel if the
engine is hot or running.

The level of oil in the gearbox should just reach the bottom
of the fill plug hole. The fill hole plug is located
approximately half way up the side of the gearbox. If
needed, refill with specially formulated Whiteman gearbox
lubricant P/N 10139 or ISO 680 oil.

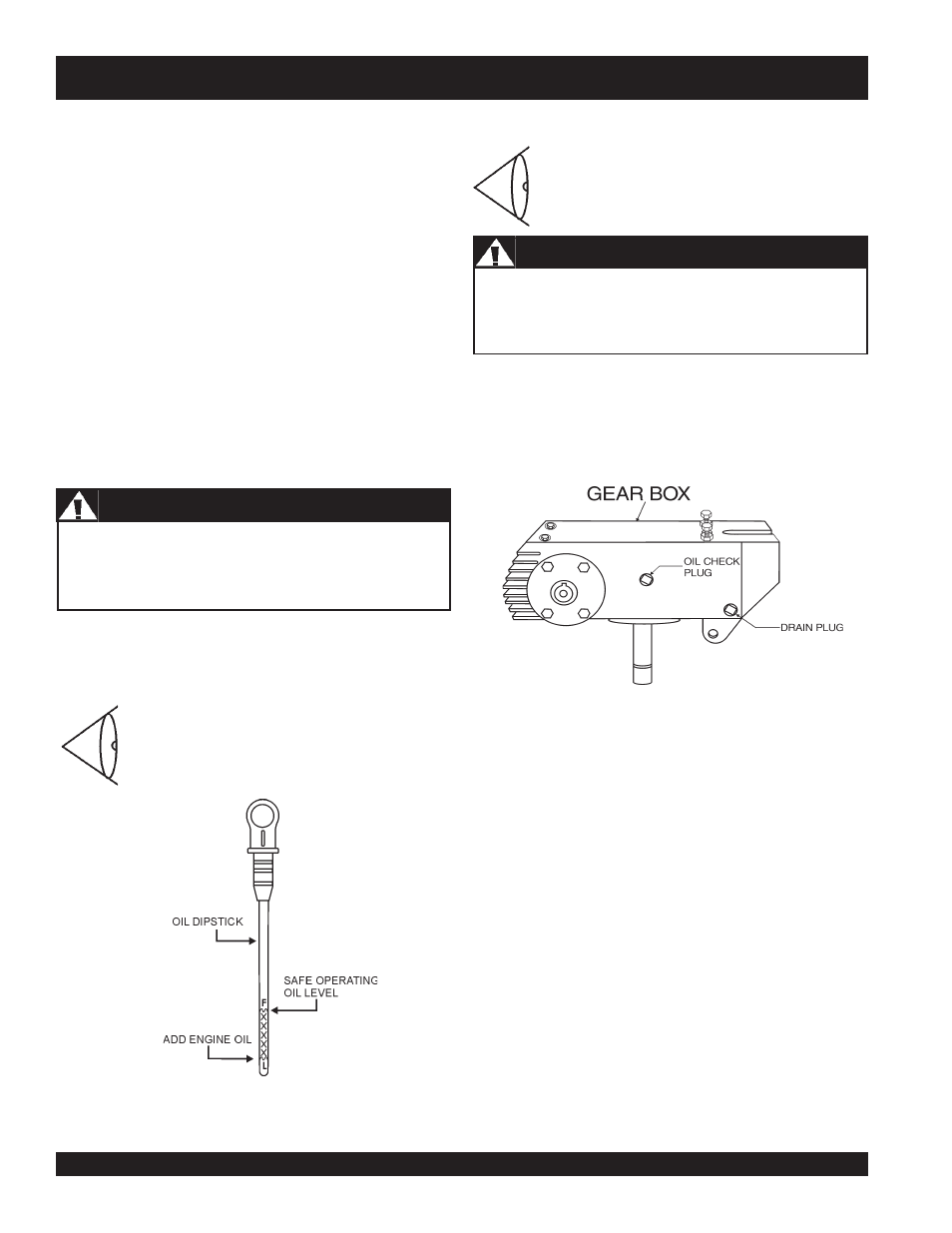

Figure 6. Gearbox Oil Plugs

1. Check and clean battery terminals for corrosion.

Check and keep battery electrolyte between upper and
lower limits indicated on the battery. Never operate or
recharge without sufficient fluid in the battery.

Never attempt to charge a battery that is frozen. The battery
can explode unless first allowed to thaw.

Disconnect the negative terminal ( - ) of the battery during
storage. If unit will be stored where ambient temperature
will drop to -15

C or less, remove and store battery in a

warm, dry place.

This section is intended to assist the operator with the initial
start-up of the STR46SPVG Ride-On Power trowel. It is extremely
important that this section be read carefully before attempting to
use the trowel in the field.

DO NOT use your ride-on power trowel until this section is
thoroughly understood.

See Figures 2 and 3 for the location of any control or indicator
referenced in this manual.

Engine Oil Level

Figure 5. Engine Oil Dipstick

Pull the engine oil dipstick from its holder.

Determine if engine oil is low (Figure 5), add
correct amount of engine oil to bring oil level
to a normal safe level.

Failure to understand the operation of the STR46SPVG Ride-
On Power Trowel could result in severe damage to the trowel
or personal injury.

WARNING

WARNING - Damage and Injury

Check the gearbox oil level in both gearboxes
by removing the plug located on the side of
the gearbox. See Figure 6.

Gearbox Oil Level

WARNING

CAUTION - Gearbox Plugs

Use caution when removing plugs on the gearbox, there are
two of them. Removal of the bottom most plug (Drain Plug) will
drain the oil in the gearbox.
