STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 18
one function. The functions of each control or indicator is
described below and on the next page.
1. Seat – Place for operator to sit. Engine will not start unless
operator is seated. Seat is adjustable, fore and aft for
operator comfort.
2. Steering Control Lever (right side) -Allows the unit to
move in either a forward, reverse left or right direction.
4. Single Pitch Control – Adjusts the blade pitch separately
for each side of the trowel.
6. Steering Control Lever (left side) -Allows the unit to move
in either a forward, reverse left or right direction.
7. Light Switch – When activated, turns on four halogen
lights. Lights offer better visibility when working indoors.
8. Ignition Switch – With key inserted turn clockwise to
start engine.
9. Oil Indicator Light - Lights red when oil pressure is low.
10. Water Indicator Light - Lights red when water temperature
is high.
11. Charge Indicator - Lights red when electrical system is
not charging properly.
12. Hour Meter - Indicates number of hours machine has been
in use or hours engine was run.
13. Choke Control Lever. - In cold weather pull this lever
forward about half way to start engine. After engine warms
push knob all the way in.
14. Fuel Gauge/Filler Cap - Indicates the amount of fuel in
the fuel tank. Remove this cap to add fuel.
15. Fuel Tank - Holds 5 gallons of unleaded gasoline.
16. Spare Belt Carrier - Contains 2 spare belts. Belts are
used on the drive pulley.
17. Left Foot Riser – Operator foot rest pedal.
19. Right Foot Pedal – Controls blade speed. Slow blade
speed is accomplished by slightly depressing the foot pedal.
Maximum blade speed is accomplished by fully depressing
the foot pedal.
STR46SPVG — CONTROLS AND INDICATORS

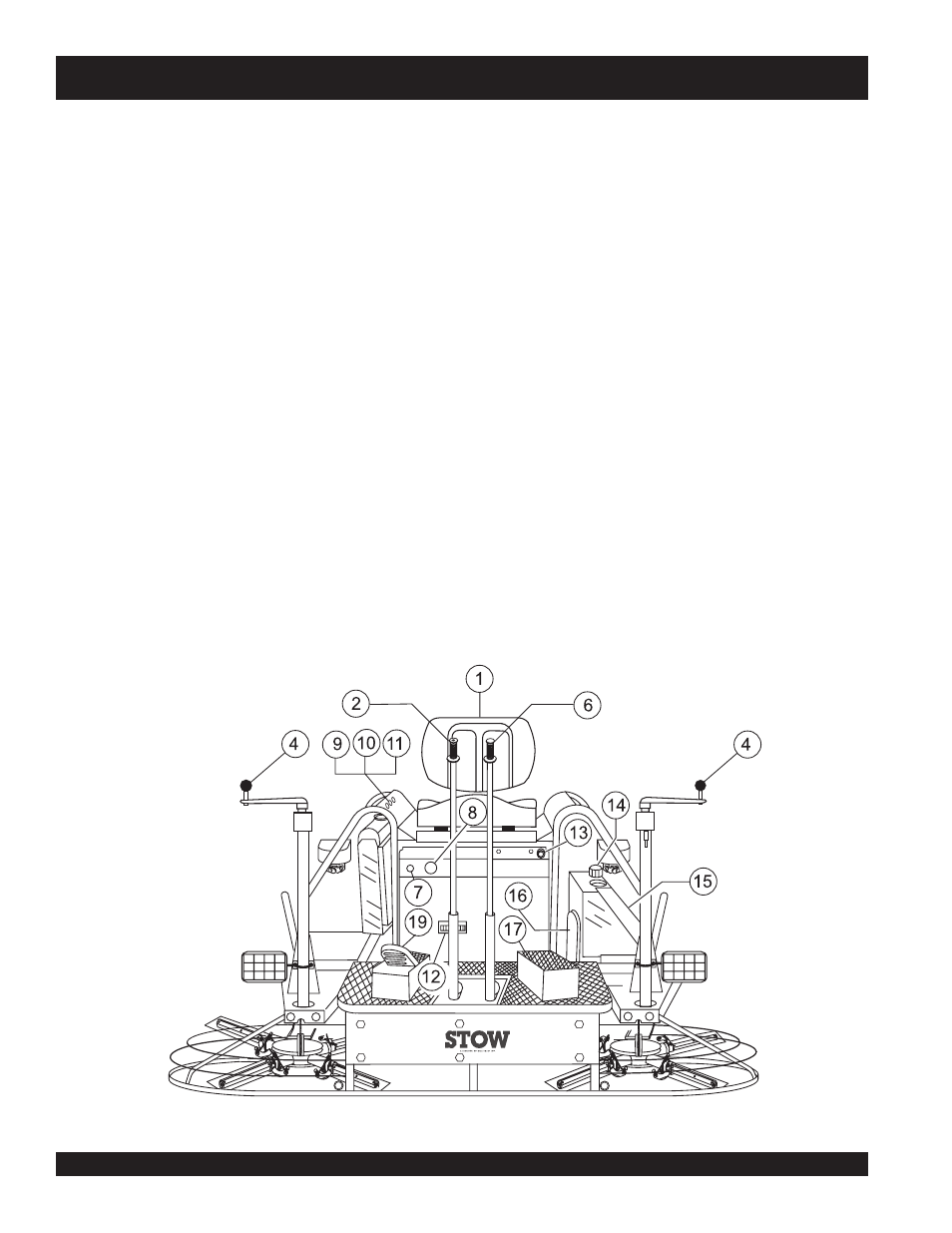

Figure 2. STR46SPVG Controls and Indicators (Front)
