page 30 — WSHe/a vibraTory TruSS Screed • operaTion manual — rev. #0 (05/22/12)
aSSeMbly
TURNBUCKLE
INSTALL MOUNTING HARDWARE
3 TURNS ONLY
TORQUE
70 FT-LBS
(95 N m)
JAM NUT (2)
R
L
R
L
BULL FLOAT
BLADE
TOP PIPE
TRUSS
FRAME
FRONT
REAR
BLADE
CONNECTOR
FRONT BLADE
FLAT ASSEMBLY
SURFACE
REMOVE MOUNTING
HARDWARE
BOLT
FLAT WASHER
COUPLER
SET SCREW
APPLY LOCTITE
242 BLUE
TUBE MOUNT
ECCENTRIC SHAFT
TURN BUCKLE
TORQUE
30 FT-LBS
(41 N m)

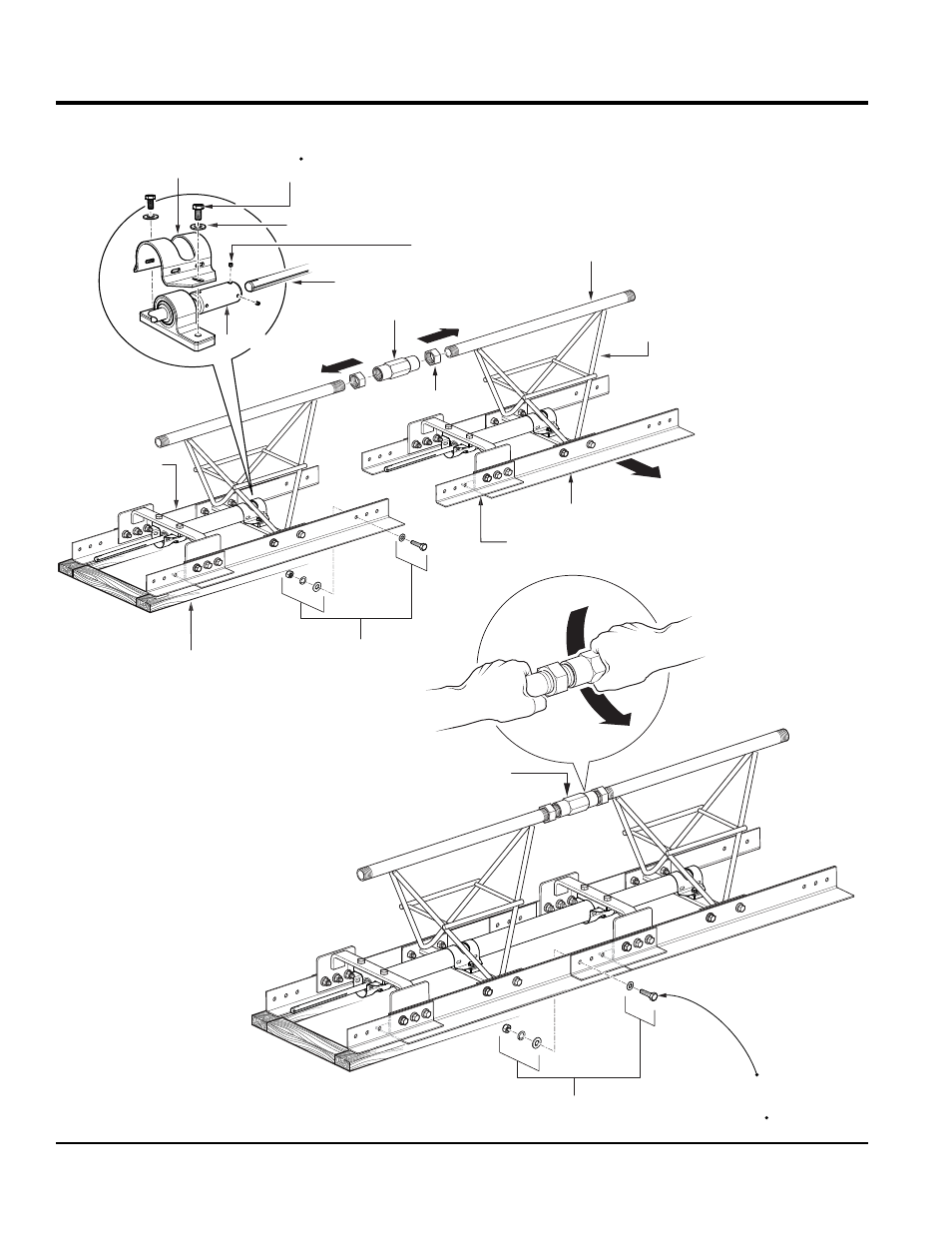

Figure 16. Truss Frame and Eccentric
Shaft Connections
