page 22 — WSHe/a vibraTory TruSS Screed • operaTion manual — rev. #0 (05/22/12)
cOMpOnentS
1
2
14
13
15
13
15
17
16
5
3
3
4
19
20
21
22
23
18

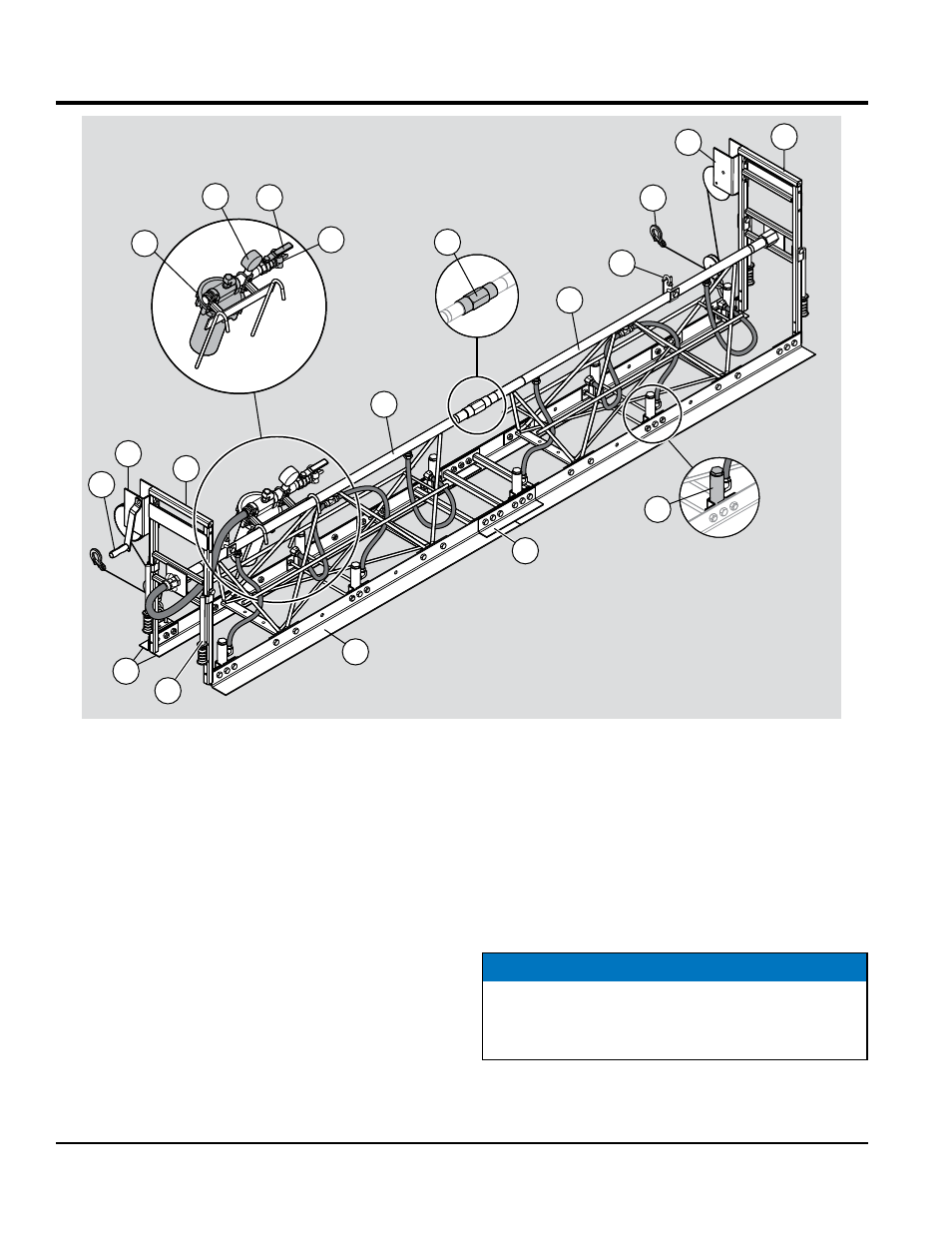

Figure 6. WSHA Components
13.
end Handle Section — Two end handle sections
required for screed assembly.
14.
end Handle — Allows lifting of screed onto and off of slab.
15.
manual Winch — Heavy duty 2500 lb, 2 speed winch
with 100 feet of 1/8" aircraft cable located on one or
both ends of the screed. Self-propelled hydraulic winch
option minimizes labor and offers speeds from 0 to
12 feet per minute.
16.
Winch Handle — Rotate handle to facilitate screed
movement.
17.
cable Hook — Fastened to stationary point in line of
screed travel.
18.
lifting Hanger — One hanger located on both ends
of the screed.
19.
air vibrator — Naval bronze piston vibrators produce
9,500 vibrations per minute.
20.
oil mist lubricator — Holds one quart of oil to lubricate
air vibrators. Multiquip recommends SAE 10 wt. non-
gumming type oil.
21.
air gauge — Indicates vibrator air pressure.
22.
on-off valve — Rotate valve to allow air to flow into or
prevent air from entering vibrators.
23.
Quick-disconnect coupler — Connects screed to air
compressor.
NOTICE
The air vibrator operates at 80 PSI, consuming only 4.5
CFM of air to provide effective consolidation of concrete
without over-vibration.
