PAGE 18 — MVH150VD2 PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #0 (10/10/08)
OPERATION
INITIAL STARTUP

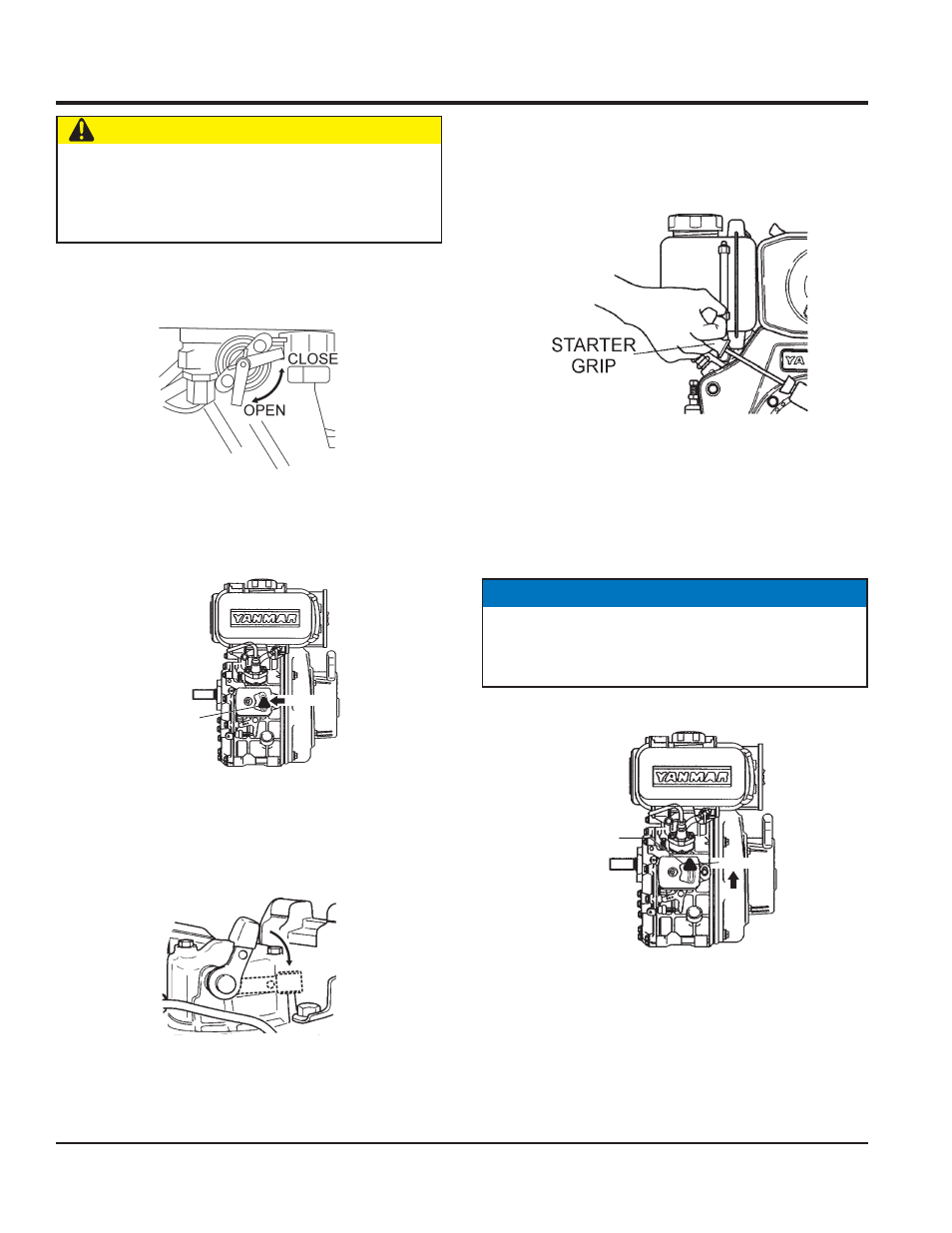

Open the fuel cock (Figure 11). 1.
Fuel Cock Figure 11.
Move the engine speed control lever (Figure 12) to the 2.
IDLE position.
Engine Speed Control Lever (Idle Figure 12.
Position)
Push down the decompression lever (Figure 13) and 3.
release.
Decompression Lever Figure 13.
CAUTION
Never attempt to check the V-belt with the engine
running. Severe injury can occur if your hand (Figure 8)
gets caught between the V-belt and clutch. Always use
safety gloves.
IDLE
ENGINE SPEED
CONTROL
LEVER
Grasp the starter grip (Figure 14) and slowly pull it out. 4.
The resistance becomes the hardest at a certain
position, corresponding to the compression point. Pull
the starter grip briskly and smoothly for starting.
Starter Grip Figure 14.
If the engine does not start, repeat steps 1 thru 4. 5.
OPERATION
Once the engine has started, move the engine speed 1.
lever quickly to the FAST (Figure 15) position.
Speed Control (Fast Position) Figure 15.
With the engine speed control lever placed in the FAST 2.
position, the engine speed should be between 2,300
~2,600 RPM’s, therefore engaging the centrifugal
clutch.
NOTICE
Always move the speed control lever quickly without
hesitation because increasing the engine speed slowly
causes the clutch to slip.
FAST
ENGINE SPEED
CONTROL
LEVER
