5 Parameter setting & configuration
5.1 Basic signal flow
The functional core of the table positioning is the profile data management which
transmits the required profile data to the basic drive function "Positioning". The true
sequence control is carried out by a master control (e.g. PLC) which communicates with the
application via predefined ports.

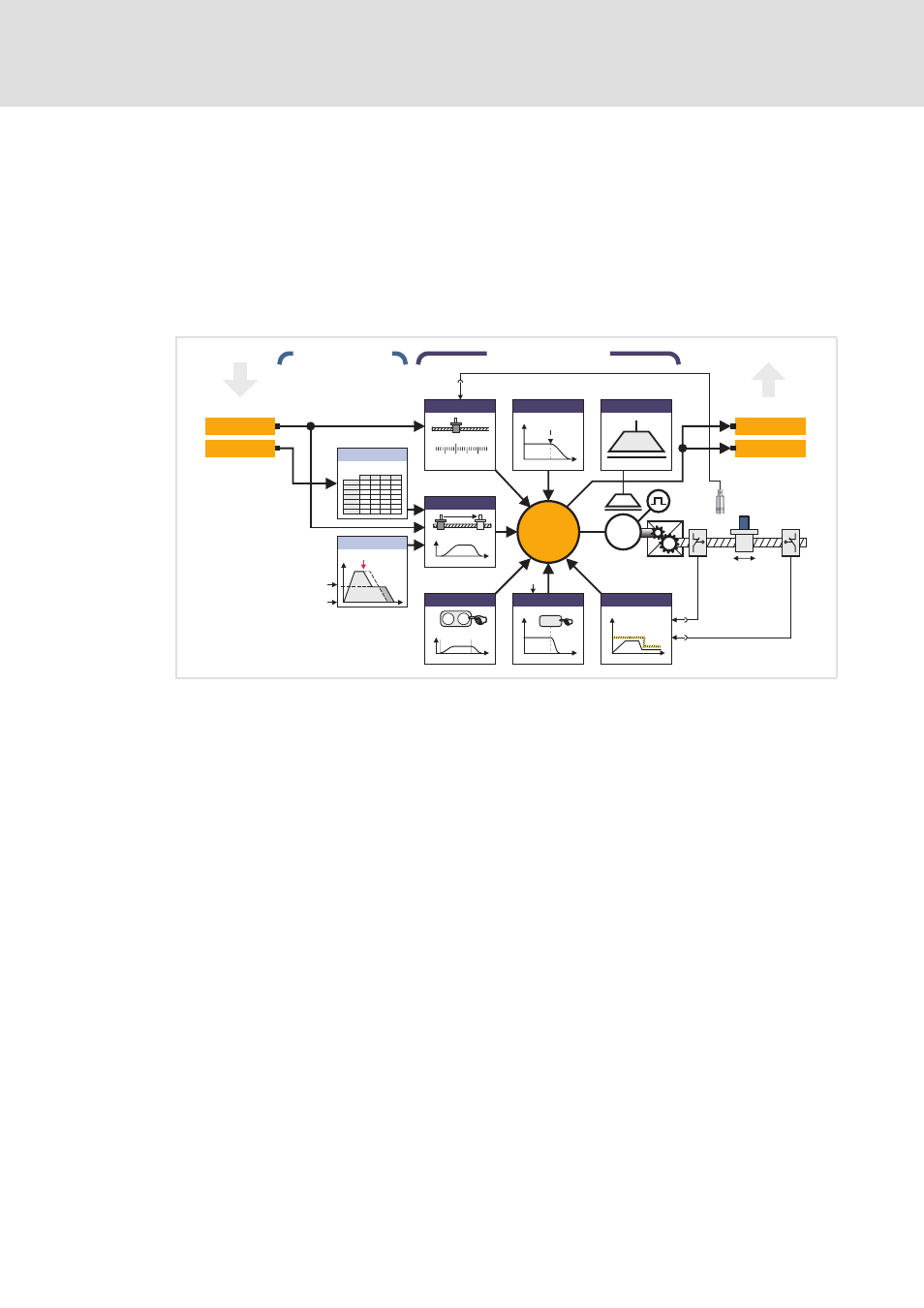

[5-1] Signal flow of the TA "Table positioning" (schematic diagram)
Table positioning
 Predefined ports for the communication with a master control
 Profile data management
 Speed/acceleration override
Basic drive functions
 Homing
 Positioning
 Manual jog
 Stop
 Quick stop
 Brake control (optional)
 Limiter (optional)
