Getting started - operating the Application Sample
The buttons of the visualisation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

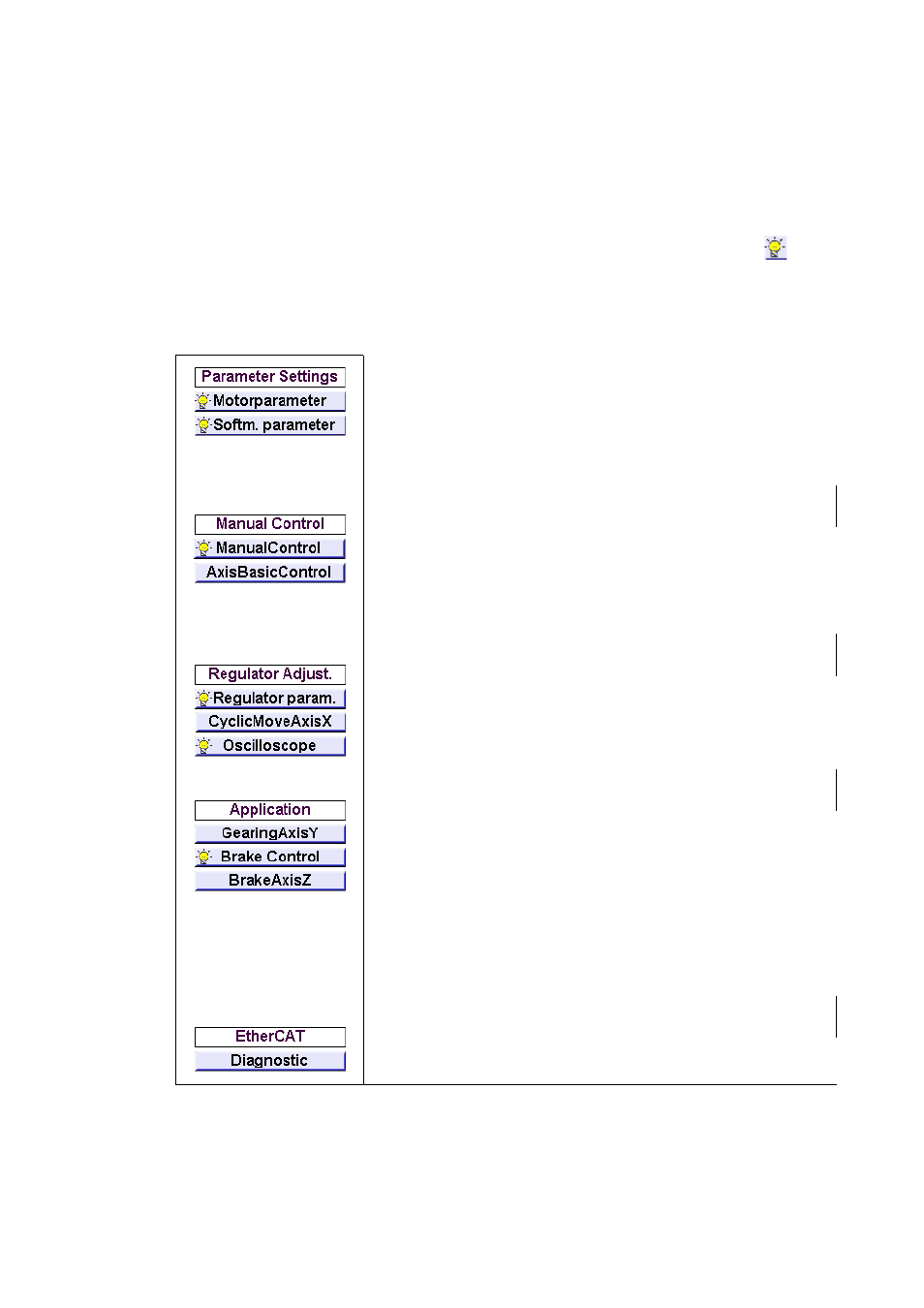

7.1 The buttons of the visualisation

Tip!
The information pages of the visualisation are marked with the symbol .
• The pages provide information on what to do to get the system started:
"Getting started".
Setting parameters
Motor parameters: information page "Getting started"
• Step 1:
How to parameterise the motor data
Softm. parameters: information page "Getting started"
• Step 2:
How to parameterise the SoftMotion data
Manual control
ManualControl: information page "Getting started"
• Step 3:
How to move the axes (AxisX/AxisY/AxisZ) in the manual mode (manual
jog)
AxisBasicControl: user interface
• Axis control via the visualisation of the L_SMC_AxisBasicControl FB.
Controller settings
Regulator param.: information page "Getting started"
• Step 4:
How to change the controller settings
CyclicMoveAxisX: user interface
• Visualisation of the CyclicMoveAxisX program
Application
Oscilloscope: information page "Getting started"
• Step 5:
How to optimise the controller settings
GearingAxisY:
• Visualisation of the GearingAxisY program
BrakeControl: information page "Getting started"
• Step 6:
How to use the holding brake
BrakeAxisZ: user interface
• Visualisation of the BrakeAxisZ program
EtherCAT
Diagnostic: EtherCAT diagnostic page
• Query/set EtherCAT state (bus/slave)
