Opening the Application Sample
Creating a new project - opening the Application Sample
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

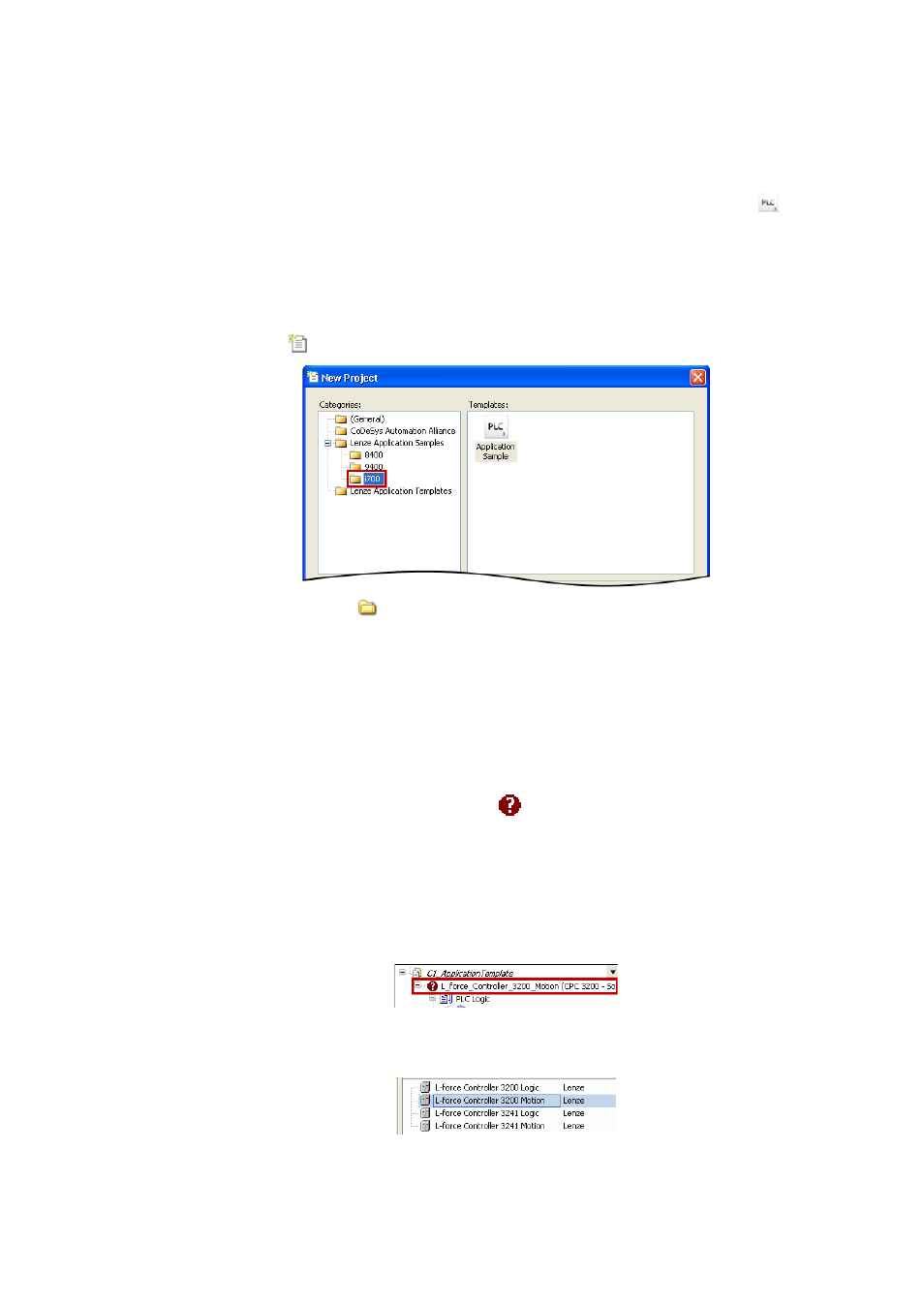

6.1 Creating a new project - opening the Application Sample
The Application Sample is available as a predefined »PLC Designer« project (*.project, ). To call
the Application Sample, a new project must be created with the Application Sample being the
sample project.

How to proceed:
1. Creating a new project:
• File New Project
• Select category Lenze Application Samples
• Open Application Sample
6.2 Updating the Controller in the project (optional)
The Controller must optionally be updated in the »PLC Designer« if the project has older firmware
information than the hardware to be used.
• If the Controller is marked with the symbol after opening the project, the device must be
updated.
• Use the »WebConfig« to determine the firmware used by the Controller to be able to select the
corresponding setting in the »PLC Designer«.

How to proceed:
1. Select the desired Controller.
• Execute command Update Device in the context menu.
• Double-click the suitable Controller in the Update Device dialog window to update the
Controller in the device view:
