Overview - The structure of the Application Sample
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5
Overview - The structure of the Application Sample
The Application Sample i700 is a sample project which provides support during commissioning and
helps you entering the world of Lenze "Controller-based Automation" with the »PLC Designer«.
• The Application Sample is included as project file in the »PLC Designer« setup:
L_AppSample_i700.project
• Lenze devices already contained in the project are:
• I/O modules on the backplane bus of the Controller (I/O system 1000),
• Three axes (AxisX...Z) on the EtherCAT fieldbus (single axis of i700 servo inverter each).

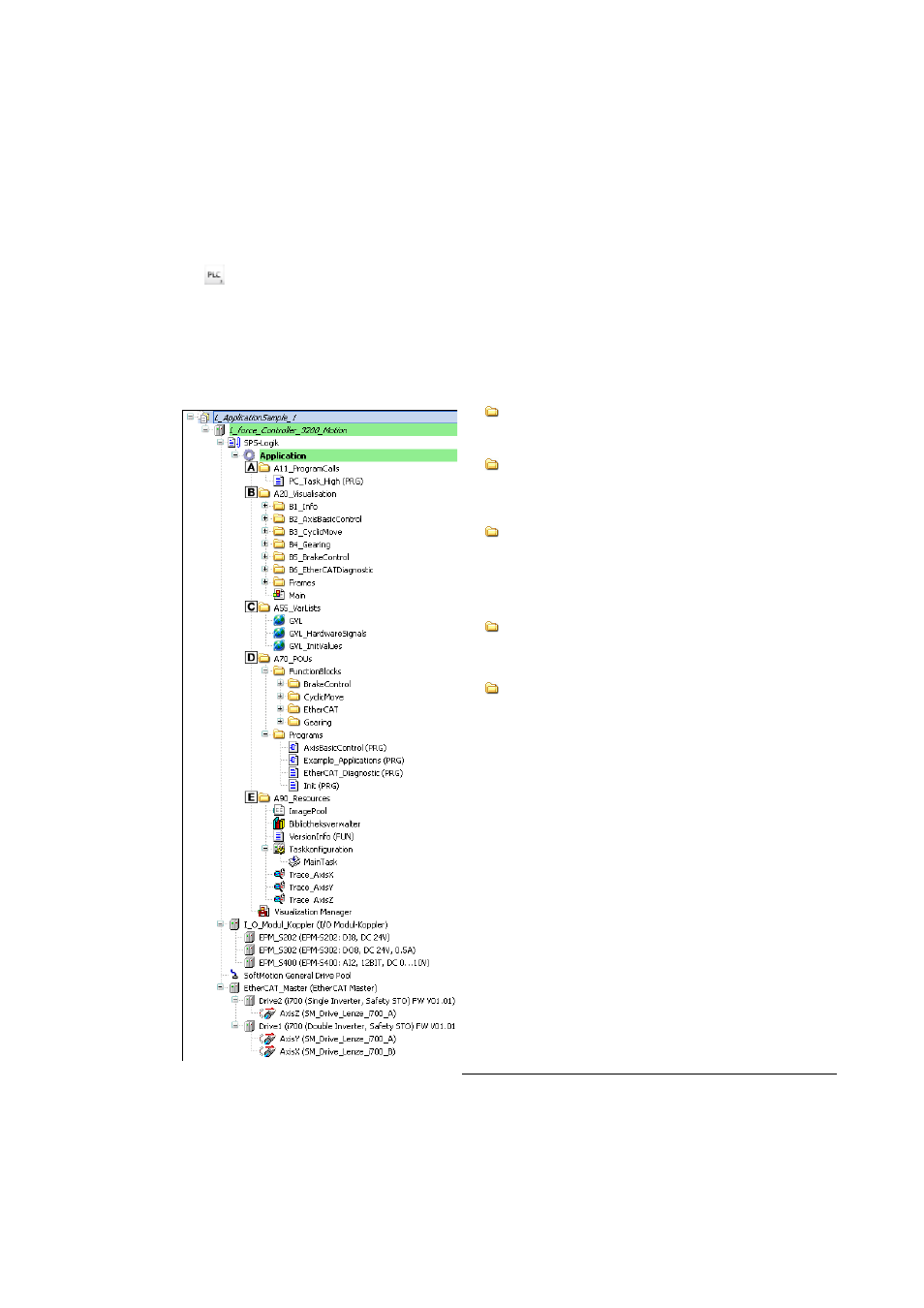

• The Application Sample i700 has the following (fixed) structure:
A11_ProgramCalls
• ... contains all program calls.
A20_Visualisation
• ... contains the visualisations for the device-independent
functions.
A55_VarLists
• ... contains the declarations of the global variables:
• Variables for switching over the visualisation: GVL
• I/O variables: GVL_Hardsignals
• Initialisation variables: GVL_InitValues
A70_POUs
• ... contains the programs for:
• BrakeControl/CyclicMove/EtherCAT/Gearing
A90_Resources
• ... contains all system data such as:
• task settings,
• used libraries,
• predefined traces,
• visualisation managers.
