Appendix
Dimensions of 931M 24 V or 42 V DC, double mounting (resolver + brake)
10

54 GHB 13.0002-EN 3.1

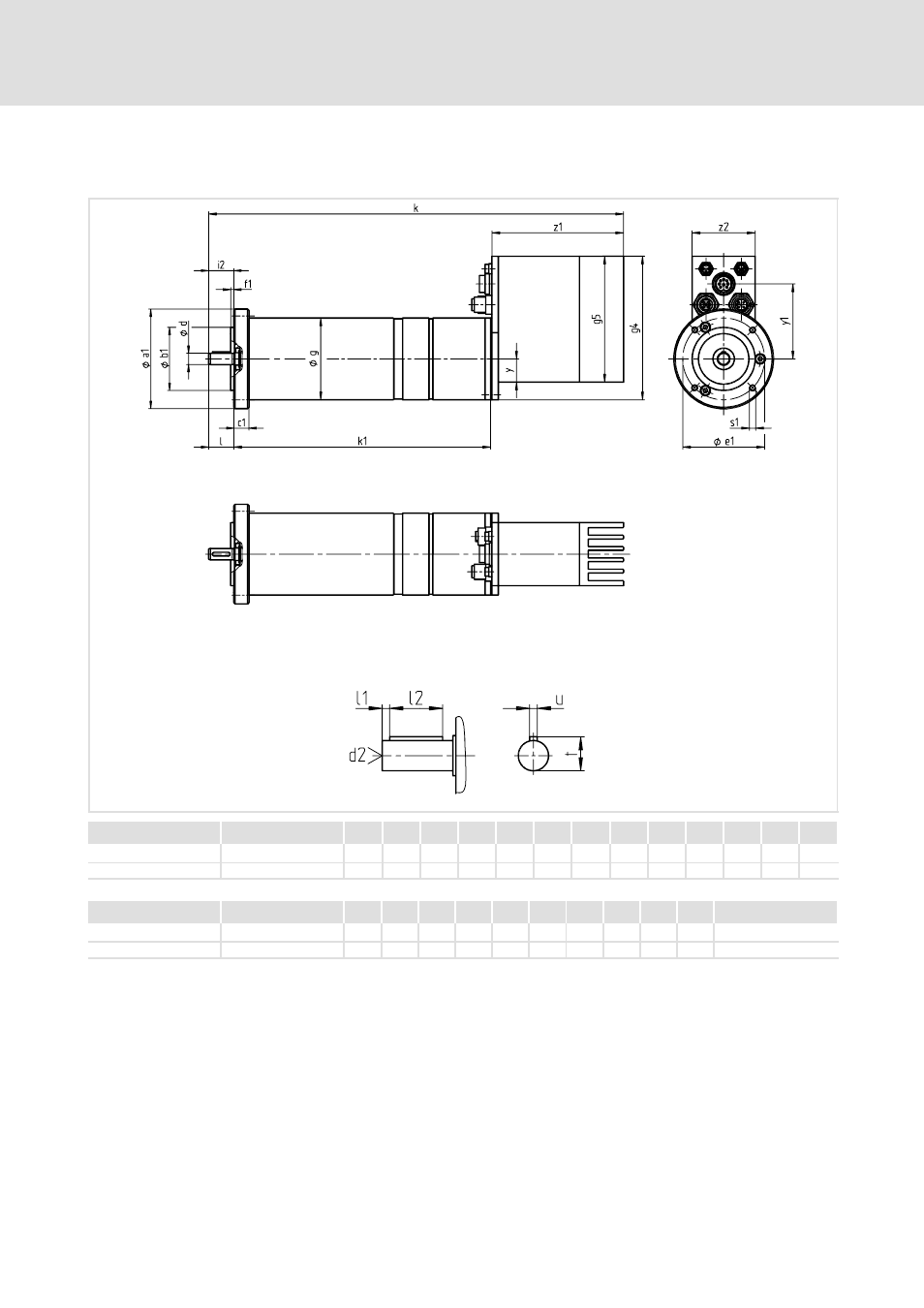

10.3 Dimensions of 931M 24 V or 42 V DC, double mounting (resolver + brake)
M13.1066
Motor frame size Frame size a1 b1
j7
c1 d
k6
d2 e1 f1 g g4 g5 i2 k k1
SDSGSSR035-22 IEC58C80 79 50 12 9 M3 65 2.5 65 114 100 20 329.5 205
SDSGSSR047-22 IEC56C80 79 50 12 9 M3 65 2.5 75 124 100 20 358 233.5
Motor frame size Frame size l l1 l2 s1 t u y y1 z1 z2 Weight
SDSGSSR035-22 IEC58C80 20 3 14 M5 10.2 3 18.5 59.5 104.5 50 3.3
SDSGSSR047-22 IEC57C80 20 3 14 M5 10.2 3 18.5 64.5 104.5 50 4.3
