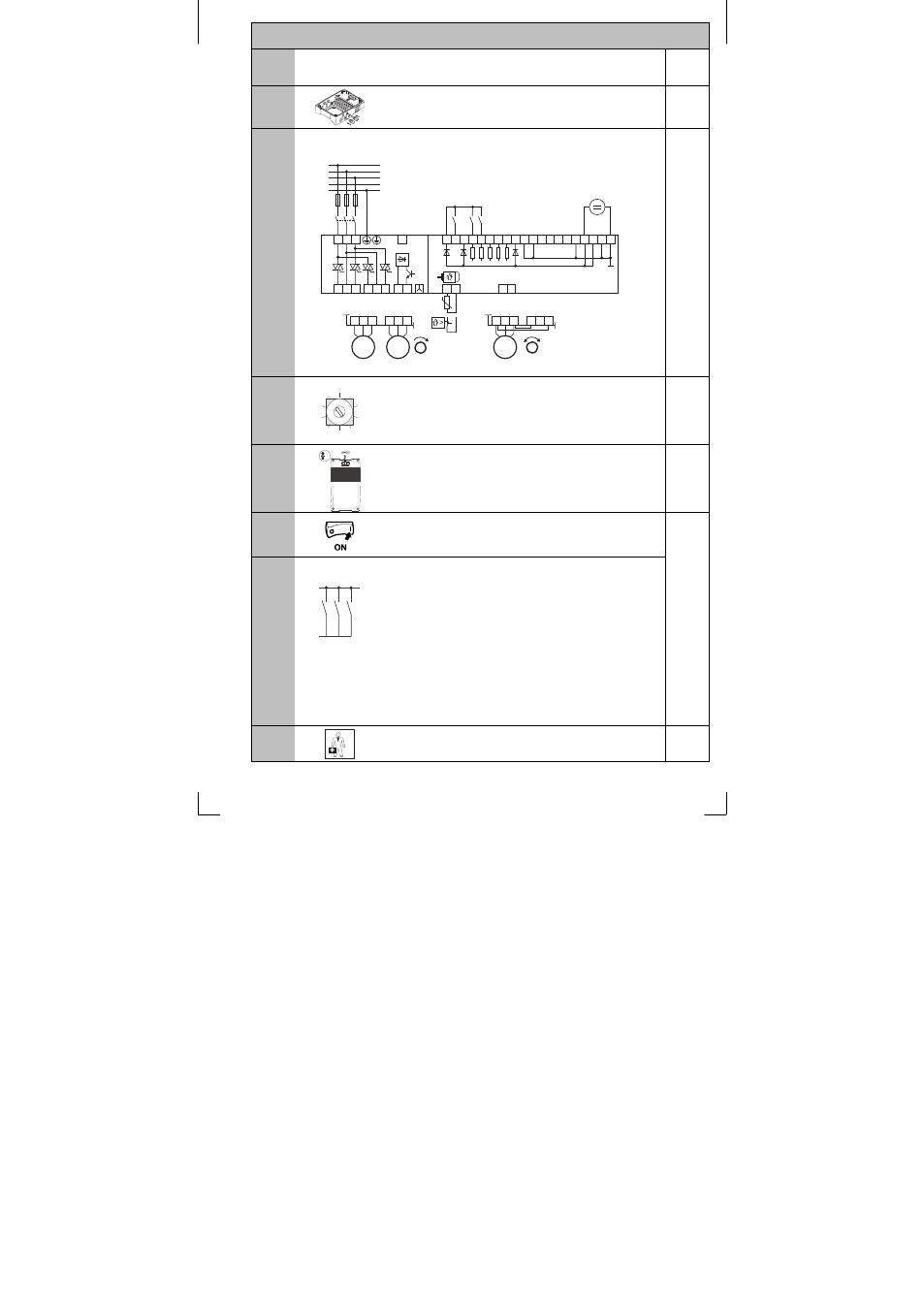

Quick commissioning
1
,
Read safety instructions ^ 73
2
start033
Assemble starttec ^ 83
3
Establish minimum wiring
^ 86
start230
BN
GND
L1
L3
N
3/N/PE AC 100 … 550 V
45 … 65 Hz
L2
+ -
20 28 E1 7 E2 E3 E4 E5 A1 A2 A3 A4
A+ A-
7 59 59 X3
T1 T2 X3 X3 B1 B2 2W 2V 2U 1W 1V 1U
PE
+24 V DC
(+18 VDC - 0 % … +30 VDC + 0 %,
200 mA ... 1.5 A)
7 20 7 7 20 L1 L2 L3
M
3~
1W 2W 1V 2V 1U 2U
M
3~
M
3~
1W 2W 1V 2V 1U 2U
X1
X1 X1
X1 X1
2 motors Reversal of direction of rotation
4 1.4 A
1.8 A
2.4
A
3.0 A 4.0
A
5.5 A
7.0 A
9.5
A
OFF
1.0
A
0 1 2
3
45 67
8
9 start032 Set the rated motor current with stepping switch for I 2 t monitoring
(
Position 0" (OFF) = no I 2 t monitoring
^ 100
5
2.4 Nm 21 lb-in IP65
}
start019
Close starttec ^ 102
6
7. Ensure that terminal X3/28 = LOW
8. Switch in mains voltage
9. Switch on 24−VDC supply
^ 101
7
X3/28 X3/E1 X3/E3
start035
Start the drive
2 motors
1. Release starttec:
– X3/28 = HIGH
2. Release brake, if necessary:
– X3/E3 = HIGH
3. Start the motors:
– Motor 1: X3/E1 = HIGH
– Motor 2: X3/E2 = HIGH
Reversal of direction of
rotation
1. Release starttec:
– X3/28 = HIGH
2. Release brake, if necessary:
– X3/E3 = HIGH
3. Start the motor:
– X3/E1 = HIGH
4. Select direction of rotation:
– CW: X3/E2 = LOW
– CCW: X3/E2 = HIGH
? ?
Faults during commissioning or during operation? ^ 133
