Commissioning
With hand terminal
7
EDK71MMXXX−020 DE/EN/FR 5.0
111
L

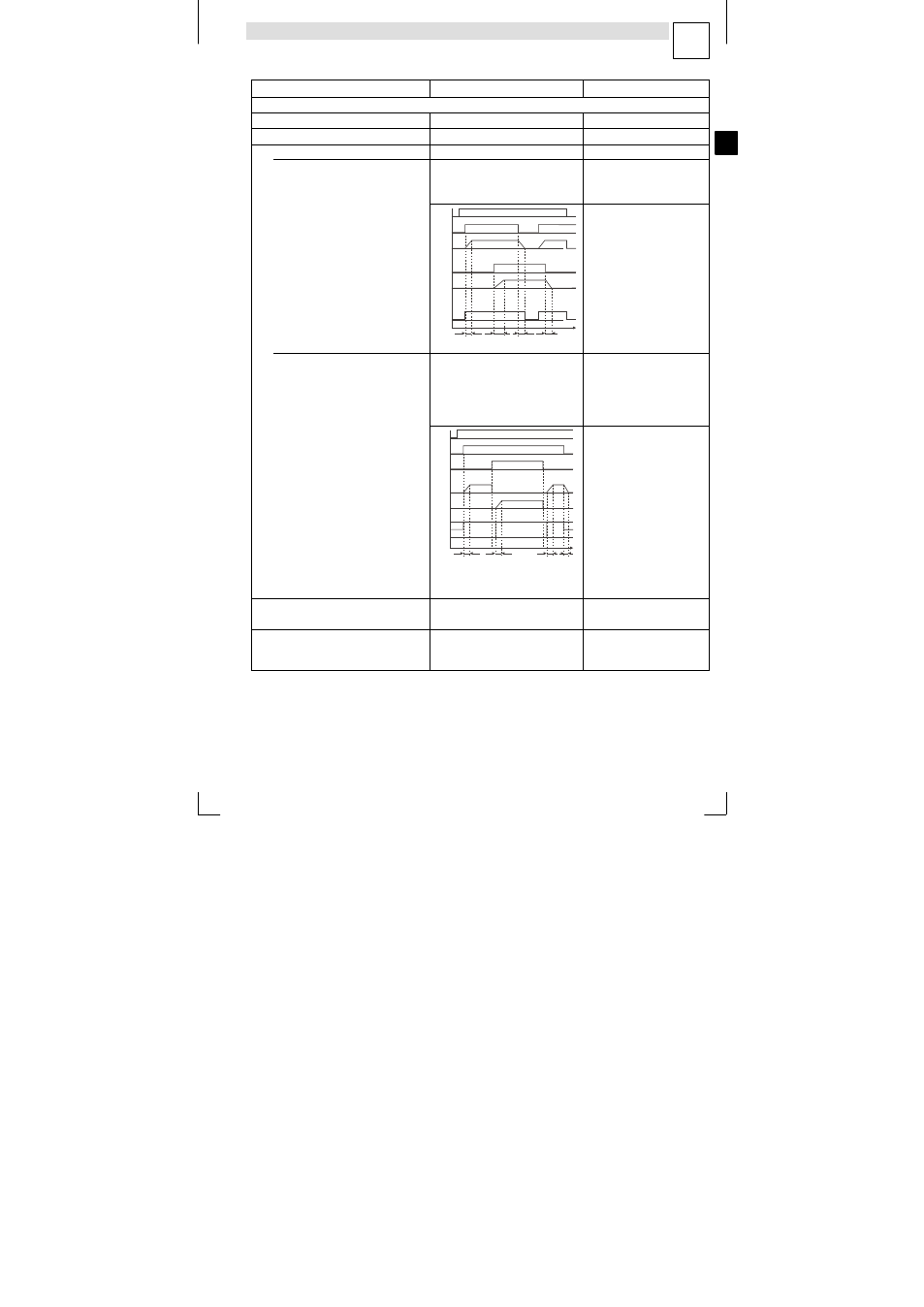

Switch−on sequence Comment
After you finalised all settings:
16. Release starttec Terminal X3/28 = HIGH
17. Release brake, if necessary Terminal X3/E3 = HIGH
18. Start the drive
A 2 motors
Start motor 1 Terminal X3/E1 = HIGH
Start motor 2 Terminal X3/E2 = HIGH
start213
CINH
E1
E2
M1
M2
E3
t
tir1 tir2 tif2 tif1
CINH Release starttec via
X3/28
E1 Start motor 1
M1 Voltage characteristic at
X1/1U, 1V, 1W (motor 1)
E2 Start motor 2
M2 Voltage characteristic at
X1/2U, 2V, 2W (motor 2)
E3 Brake control at X1/B1,
B2
t
irx
Acceleration times
t
ifx
Deceleration times
B Reversal of direction of
rotation
Start motor Terminal X3/E1 = HIGH
CW rotation Terminal X3/E2 = LOW
CCW rotation Terminal X3/E2 = HIGH
start233
CINH
E1
E2
M1
M2
CW
CCW
t
tir tir tir tif
CINH Release starttec via
X3/28
E1 Start motor
E2 Reverse direction of
rotation
M1 Voltage characteristic at
X1/1U, 1V, 1W (motor 1)
M2 Voltage characteristic at
X1/2U, 2V, 2W (motor 2)
CW CW rotation
CCW CCW rotation
t
ir
Acceleration time
t if Deceleration time 0.5 s
(C0013)
19. The drive is now running If the drive does not start, also
press
u
20. If the hand terminal is removed, the
AIF interface must be capped with
the supplied rubber cap! Only then is enclosure IP65
ensured.
