Technical data
Dimensions
4
EDKMF2102 DE/EN/FR 7.1
57
l
H1_Daten−abmess

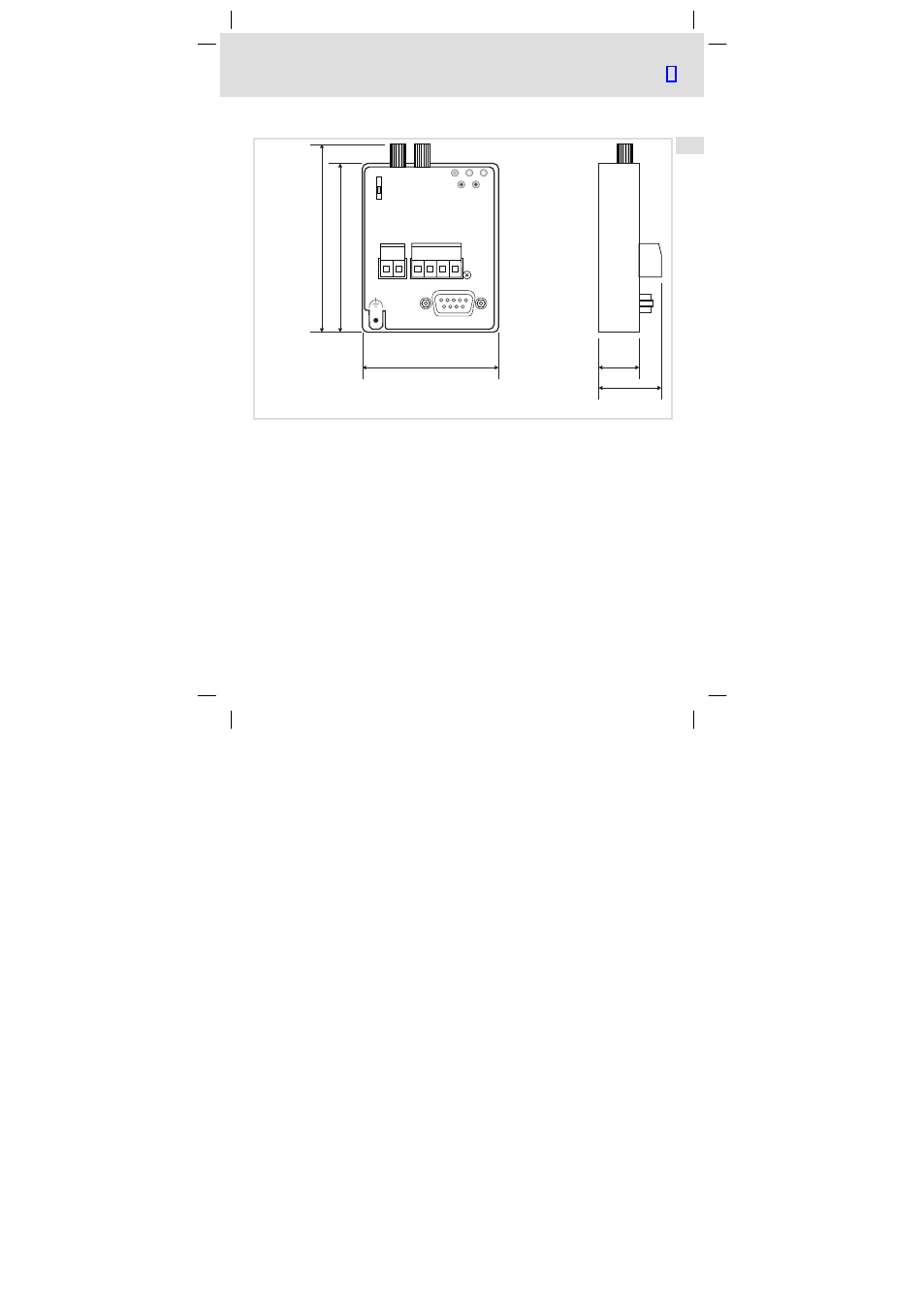

Dimensions
A/B/LI
2102
RS232
L
+ _
71 72 88 89
RS485 24V DC
ON
OFF
S1
IN OUT
LECOM
+ _
18
61
75
84
28
a
b
b1
e1
e
2102LEC013
a 61 mm
b 83 mm (only EMF2102IBC−V003, LECOM−LI)
b1 75 mm
e 28 mm
e1 18 mm
