Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 2.0 - 10/2013

76

Parameter data transfer (explicit messages)

Read parameters

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

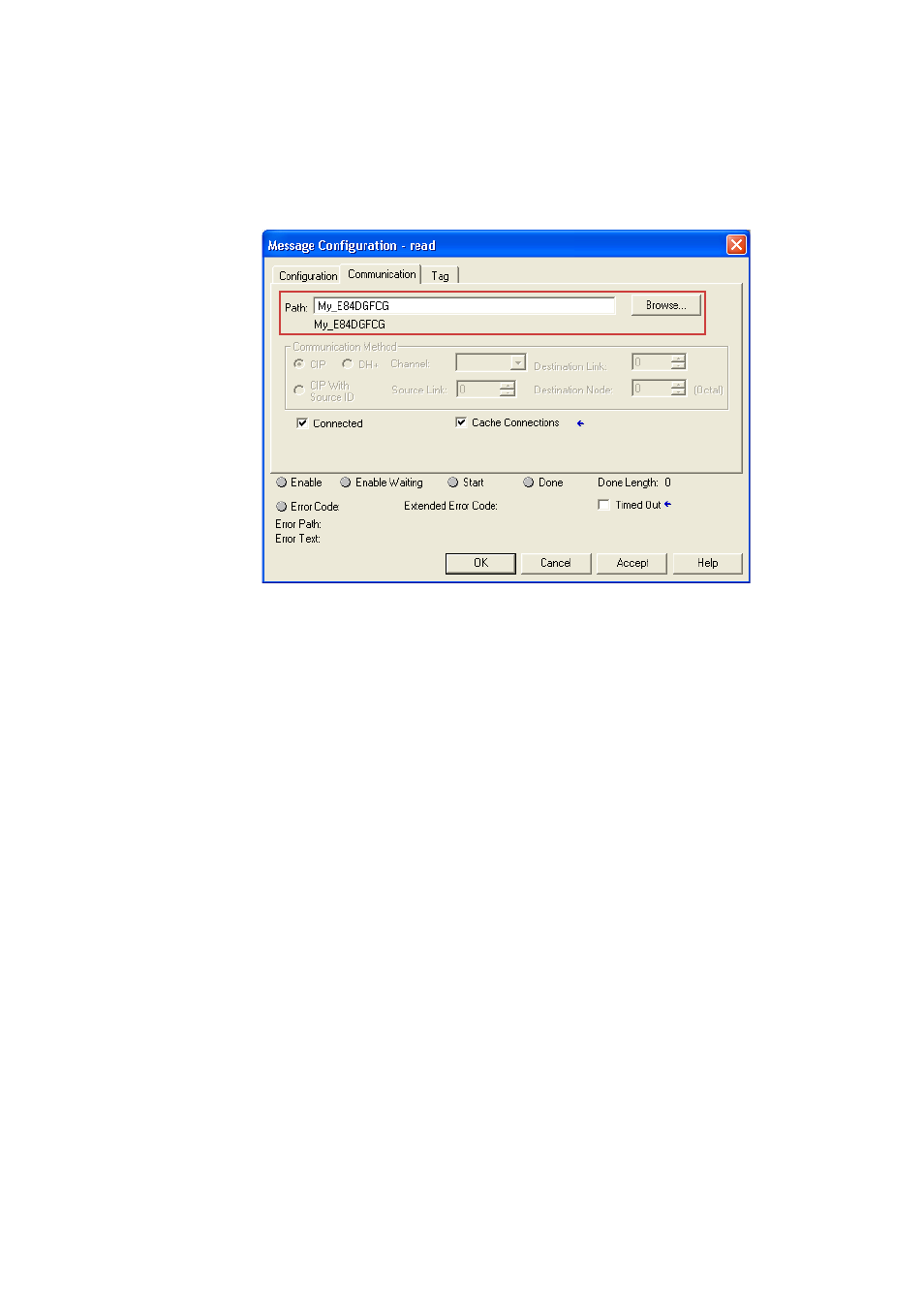

For every "explicit message", the path for sending the message via the Ethernet port of the

controller to the IP address of the drive needs to be set under the Communication tab.
If you need assistance with the setting of this path, please consult the PLC manufacturer.
