I/O data transfer (implicit messages)
I/O configuration with »RSLogix 5000« version 19 or lower
59
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 2.0 - 10/2013
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

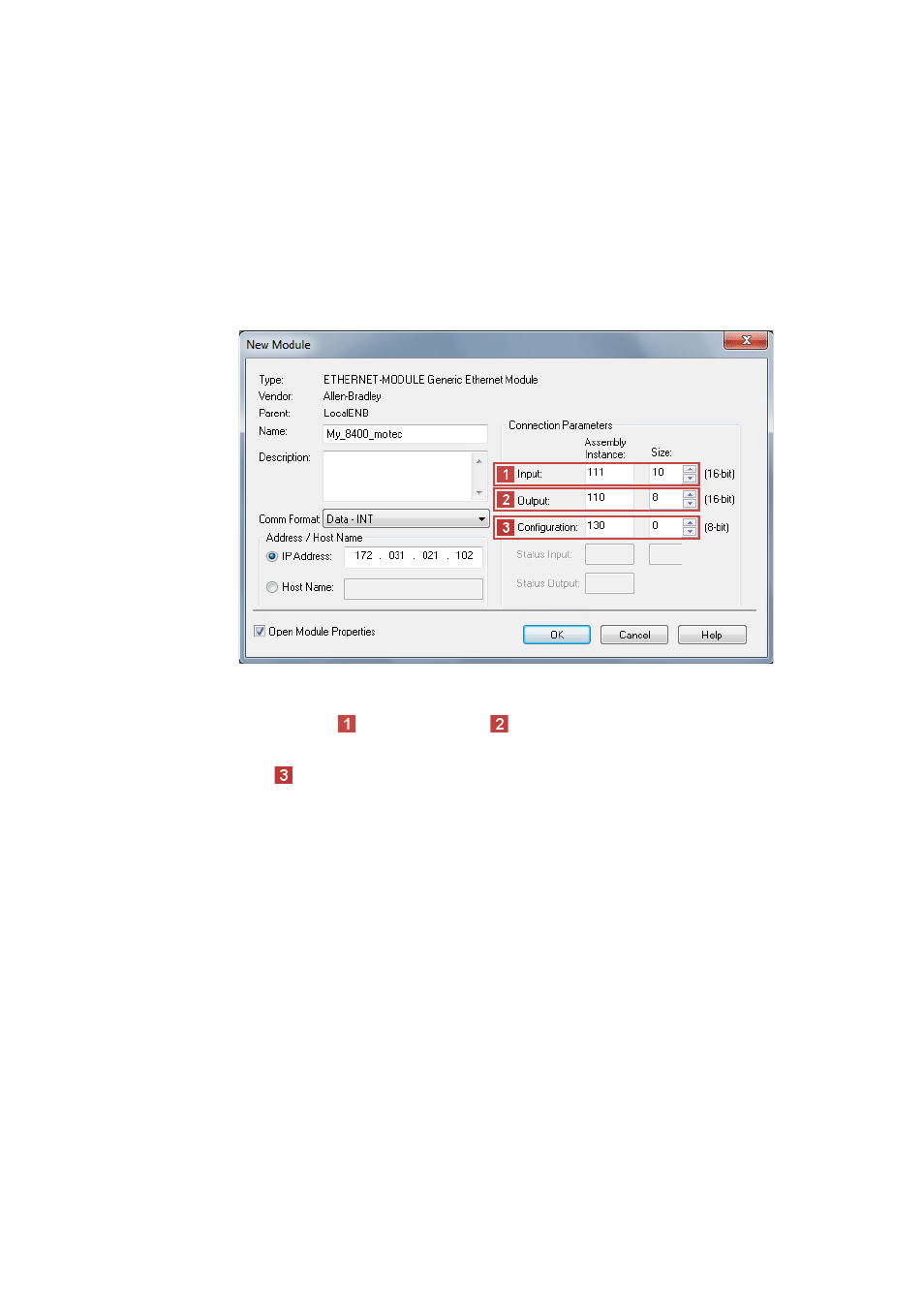

5. Go to the "New Module" dialog window and define the properties of the newly added
device .
The terms "input" and "output" refer to the point of view of the scanner:
• Assembly input objects (input) are sent from the adapter to the scanner.
• Assembly output objects (output) are sent from the scanner to the adapter.
Settings for Lenze technology applications or user-definable parameter sets:
If you use a Lenze technology application or an individual parameter set in the drive, you
can exchange up to 10 user-definable words (INT) via the MCI_OUT port using the assembly
object distance
"Input = 111". The "Output = 110" assembly object instance serves
to exchange up to 8 user-definable words (INT) via the MCI_IN port.
Go to "Configuration" and enter the Assembly instance "130" and the Size "0".
