Page 32: 6commissioning
Lenze · E84AYCPM communication module (PROFIBUS®) · Communication Manual · DMS 5.0 EN · 11/2012 · TD17
32
6
Commissioning
6.3
Setting the station address
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.3
Setting the station address

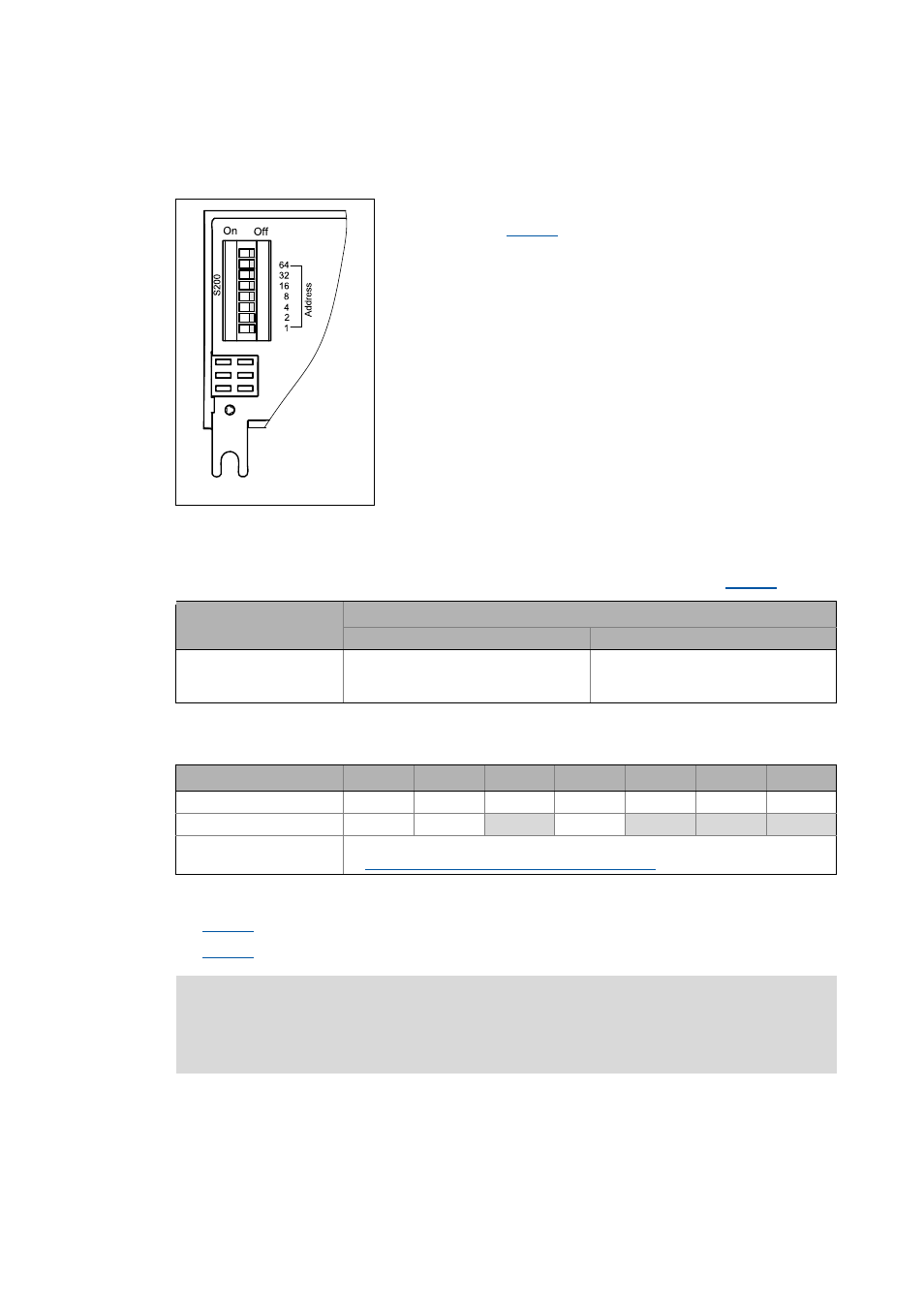

[6-1]
DIP switch
The station addresses must differ from each other if several networked PROFIBUS stations are used.
The station address can be set via DIP switches 1 ... 64 or via the »Engineer« (code
).
The housing labelling indicates the valencies of the individual DIP switches for setting the station
address.
• Valid address range: 1 … 126 (max. 126 slave stations)
•
: Display of the current address setting of the switches
•
: Display of the station address active on the PROFIBUS
E84YCPM001G
The station address can be set via DIP switches 1 ... 64 or via the
»Engineer« (code
).
The unlabelled DIP switch (topmost position) does not have any
function.
Lenze setting: all switches in OFF position
Setting the station address via ...
DIP switch
C13899
Condition
At least one switch 1 … 64 = ON
• Switches 1 ... 64 = OFF
• All switches 1 ... 64 = ON
(invalid value "127")
DIP switch
64
32
16
8
4
2
1
Switch position
OFF
OFF
ON
OFF
ON
ON
ON
Value
0
0
16
0
4
2
1
Station address
= sum of the valencies = 16 + 4 + 2 + 1 = 23
DIP switch positions for setting the station address ( 107)
Note!
Switch off the voltage supply of the communication module and then on again in order
to activate changed settings.
