3 Product description
3.3 Features
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.3 Features
• Interface module for the PROFIBUS communication system for connection to the expansion
slots of the Inverter Drives 8400
• Support of parameter data channels DRIVECOM (DP-V0) and PROFIDrive (DP-V1)
• A maximum of 16 process data words per direction can be exchanged.
• The communication module is supplied with voltage via the standard device.
• Bus coupling via remote bus according to the RS485 standard
• Automatic detection of the baud rate (9.6 kbps to 12 Mbps)
• Setting of the station address is possible via DIP switch or code.
• Access to all Lenze parameters
3.4 Terminals and interfaces

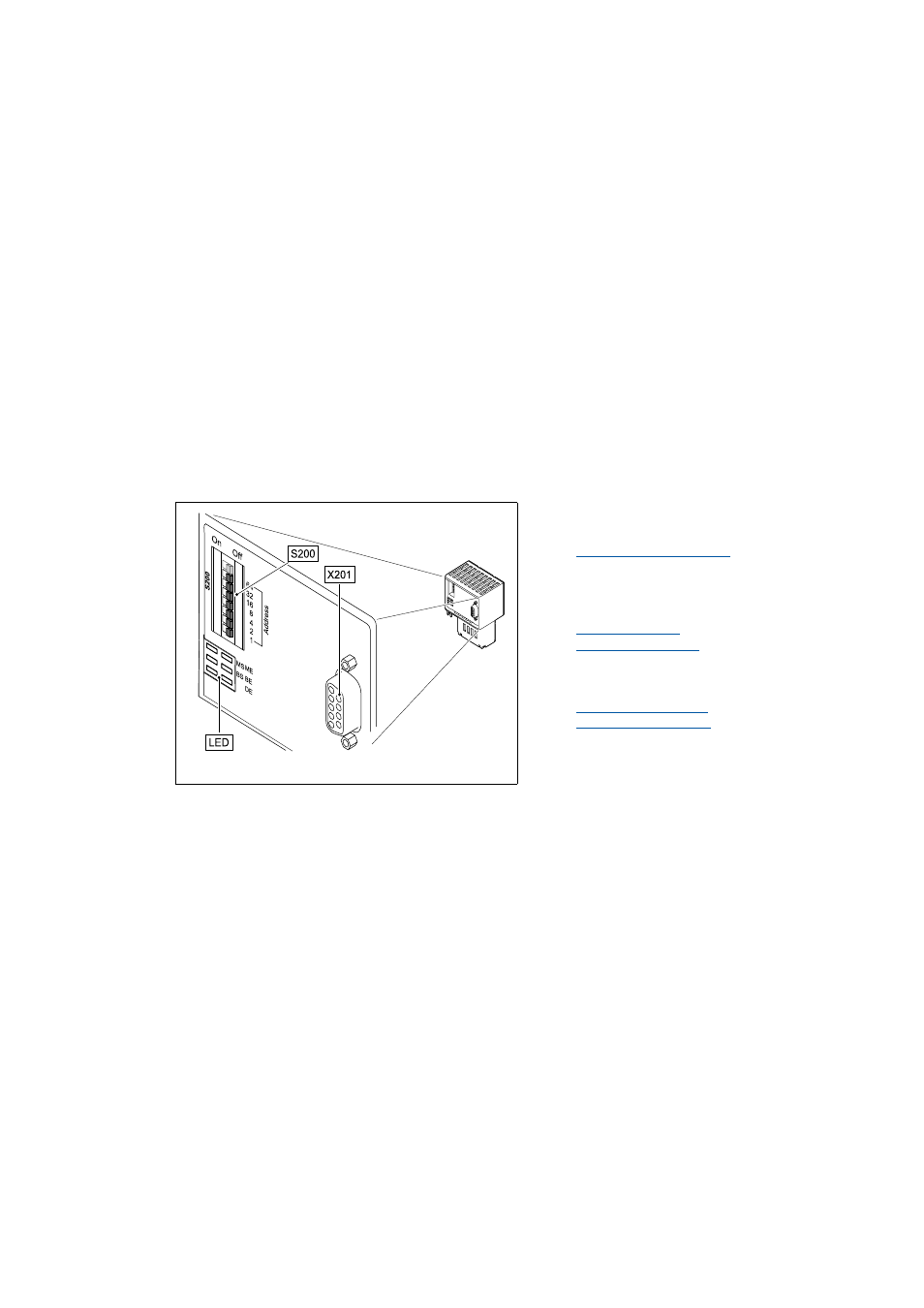

[3-2] E84AYCPM communication module (PROFIBUS)
E84YCPM001C
S200 DIP switches for setting the station address
Setting the station address ( 32)
X201 PROFIBUS connection
• 9-pin Sub-D socket
Network topology ( 25)
PROFIBUS connection ( 29)
MS
ME
BS
BE
DE
5 LED status displays for diagnostics
Module status displays ( 85)
Fieldbus status displays ( 86)
