Commissioning
6.3
Setting node addresses by means of rotary coding switches
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

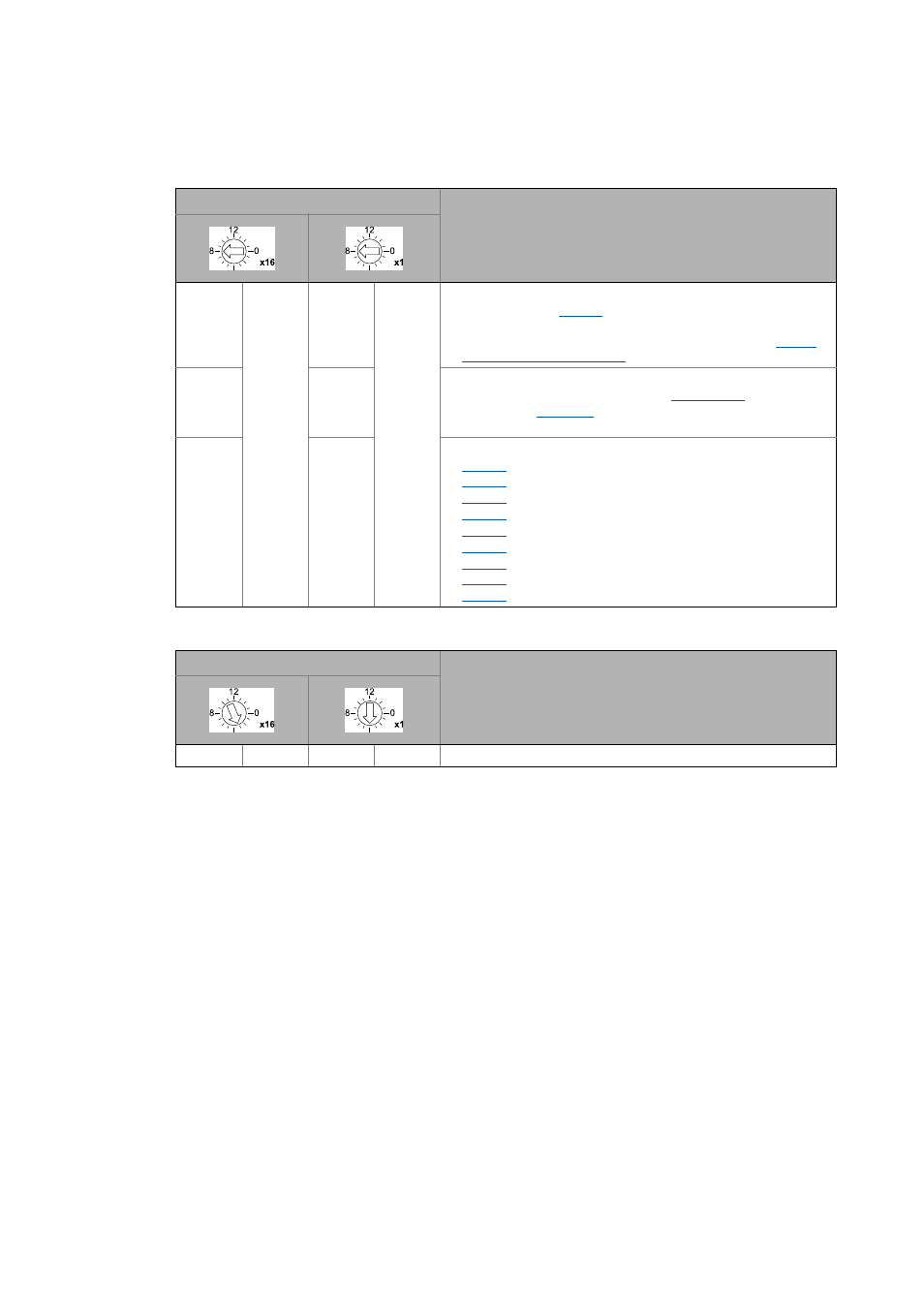

Possible settings of the rotary coding switches
Example: Setting of the node address ’52’
Position of the rotary coding switches
Description
0
Ч
16
0
Ч
1
Default status:
• Value from code
(IP configuration reference, 1: BOOTP)
• The setting can also be made by means of write-access to
attribute 3 (Configuration Control) of instance 1 of the
Interface Object (245 / 0xF5) ( 141)
.
0 ... 15
1 ... 14
IP address 1 ... 254
• The static address stored in subcode
is used.
• The subcode
is replaced with the value of the rotary
coding switch.
15
15
This setting resets the codes for IP configuration:
•
(IP address)
•
•
(gateway address)
•
(IP configuration reference)
•
(Multicast IP start address)
•
(Ethernet setting: Autonegotiation)
•
(Multicast setting: Default algorithm)
•
(Quality of Service (VLAN tagging): deactivated)
•
(Address conflict detection (ACD): activated)
Position of the rotary coding switches
Resulting node address
3
Ч
16
4
Ч
1
(3
Ч
16) + (4
Ч
1) = 52
