Lenze 13466183 EDBSC03 v7 19

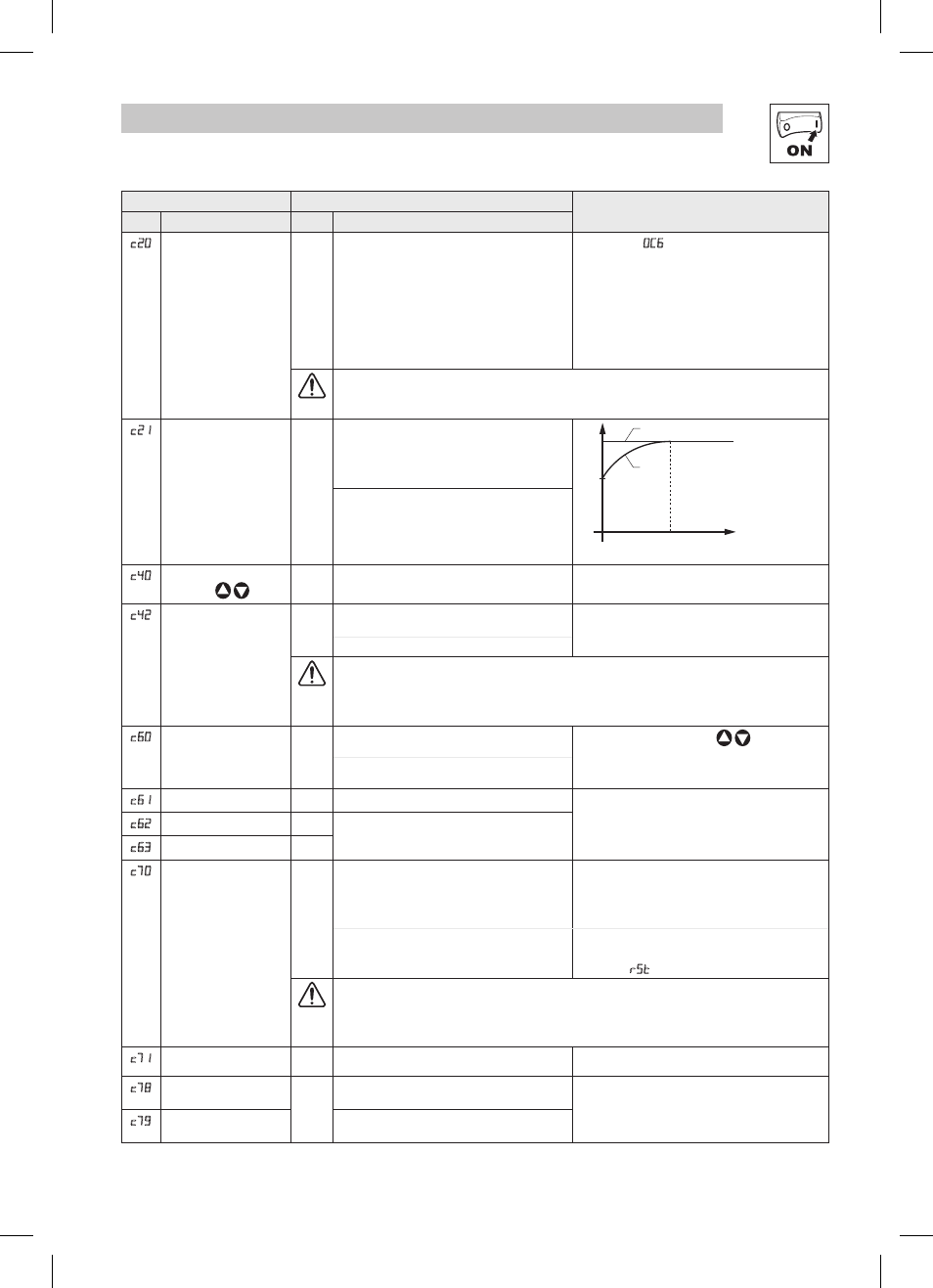

Commissioning
Code Possible Settings
IMPORTANT
No. Name Lenze Selection
c20 I 2 t switch-off (thermal
motor monitoring)
100 30 {%} 100
100% = smd rated output current
• Triggers 0C6 fault when motor current
exceeds c20 for too long
• Correct setting = (motor nameplate
current) / (smd output current rating) X
100%
• Example: motor = 6.4 amps and smd =
7.0 amps; correct setting = 91%
(6.4 / 7.0 = 0.91 x 100% = 91%)
WARNING!
Maximum setting is rated motor current (see nameplate). Does not provide full
motor protection!
c21 Motor Overload Type 00 00 Speed Compensation
Reduces the allowable continuous
current when operating below
30Hz.
Ir
100%
60%
30 f
1
0
Ir: rated current (%), f: motor frequency (Hz)
01 No Speed Compensation
Example: Motor is cooled by forced
ventilation as apposed to shaft
mounted, self cooling fans.
c40 Frequency setpoint
via keys
0.0 0.0 {Hz} 240 Only active if C01 = 1
c42 Start condition
(with mains on)
1 0 Start after LOW-HIGH change at
terminal 28
See also c70
1 Auto start if terminal 28 = HIGH
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to
personnel! Automatic starting/restarting should only be used on equipment that is
inaccessible to personnel.
c60 Mode selection
for c61
0 0 Monitoring only
c60 = 1 allows the keys to adjust
speed setpoint (c40) while monitoring c61
1 Monitoring and editing
c61 Present status/error status/error message • Display
• Refer to Section 5 for explanation of
status and error messages
c62 Last error
error message
c63 Last error but one
c70 Configuration TRIP
reset (error reset)
0 0 TRIP reset after LOW-HIGH change
at terminal 28, mains switching, or
after LOW-HIGH change at digital
input “TRIP reset”
1 Auto-TRIP reset • Auto-TRIP reset after the time set in c71
• More than 8 errors in 10 minutes will
trigger rSt fault
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to
personnel! Automatic starting/restarting should only be used on equipment that is
inaccessible to personnel.
c71 Auto-TRIP reset delay 0.0 0.0 {s} 60.0 See c70
c78 Operating time
counter
Display: Total time in status “Start” 0...999 h: format xxx
1000...9999 h: format x.xx (x1000)
10000...99999 h: format xx.x (x1000)
c79 Mains connection
time counter
Display: Total time of mains = on
