Installation
a
4 x M4
1.2 Nm
10 lb-in
4 x M6
2.8 Nm
24 lb-in
c
a1
b1
b2
s2
s2
s1
s1
b
A
B
C
D

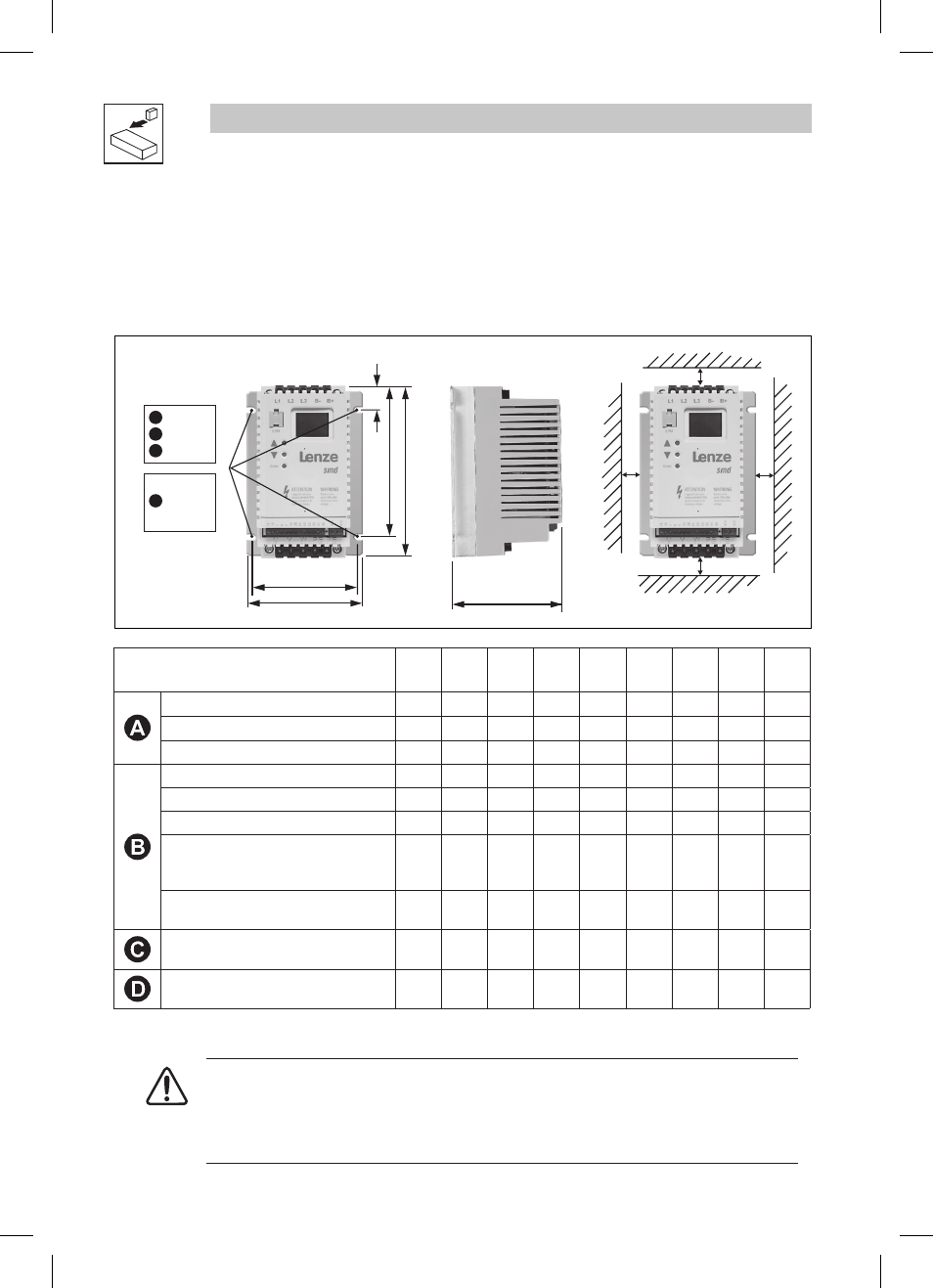

smd402
Type
a
[mm]
a1
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
s1
[mm]
s2
[mm]
m
[kg]
ESMD371C2YXA, ESMD371C4TXA
93
84
146
128
17
100
15
50
0.6
ESMD751C2YXA, ESMD751C4TXA
93
84
146
128
17
120
15
50
0.9
ESMD112C4TXA
93
84
146
128
17
146
15
50
1.0
ESMD112C2YXA
114
105
146
128
17
133
15
50
1.4
ESMD152C4TXA
114
105
146
128
17
122
15
50
1.4
ESMD222C4TXA
114
105
146
128
17
139
15
50
1.4
ESMD152C2YXA, ESMD222C2YXA
ESMD302C2TXA
ESMD302C4TXA
114
105
146
128
17
171
15
50
2.0
ESMD402C2TXA
ESMD402C4TXA, ESMD552C4TXA
114
105
146
100
17
171
15
50
2.0
ESMD552C2TXA, ESMD752C2TXA
ESMD752C4TXA, ESMD113C4TXA
146
137
197
140
17
182
30
100
3.2
ESMD113C2TXA, ESMD153C2TXA
ESMD153C4TXA... ESMD223C4TXA 195
183
248
183
23
203
30
100
6.4
3
Installation
3.1
Mechanical Installation
3.1.1 Dimensions and Mounting
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture;
excessive vibration or excessive temperatures. Contact Lenze for more information.
