2-14 F-758-R0
ASSEMBLY

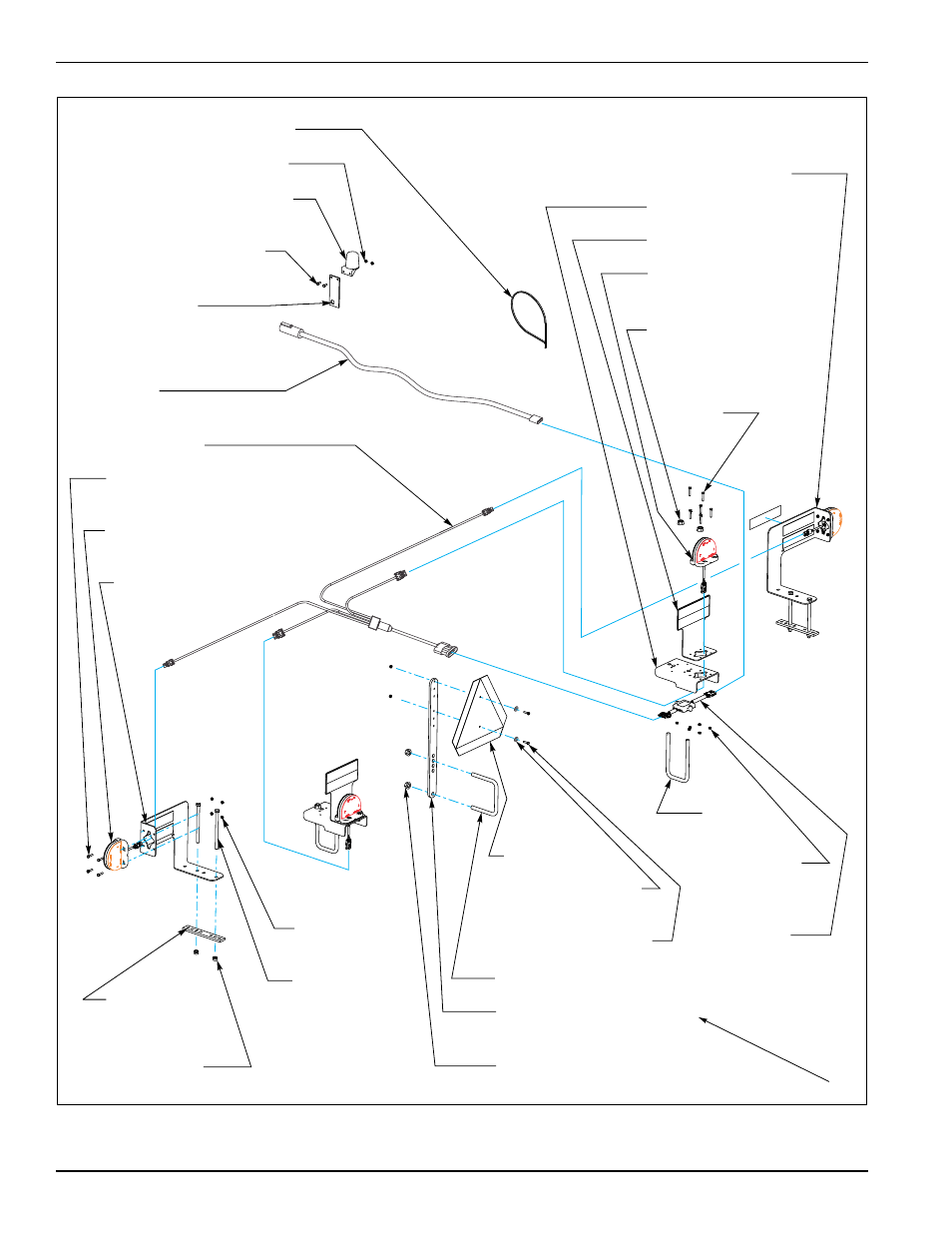

Figure 2-9: Electrical Installation
m2510 electrical op
19” SELF LOCKING TIE
1/4-20 LOCK NUT
HARNESS STOR-AWAY
1/4-20 X 3/4” HEX
HEAD CAP SCREW
STOR-AWAY HOLDER
BRACKET
7 PIN/4 PIN HARNESS,
120”
LED WARNING LIGHT
HARNESS
1/4-20 X 1-1/4” HEX
HEAD CAP SCREW
AMBER SINGLE
LED LAMP
LEFT HAND BRACKET
W/ REFLECTORS
WARNING
LIGHT BAR
1/2-13
LOCK NUT
1/4-20
LOCK NUT
12-13 X 7-1/2”
HEX HEAD
CAP SCREW
SMV EMBLEM
1/4” FLAT WASHER
1/4-20 X 1” HEX
HEAD CAP SCREW
U-BOLT
SMV MOUNTING
BRACKET
5/8-11 FLANGE HEAD
SERRATED NUT
RIGHT HAND BRACKET
W/ REFLECTORS
TAIL LIGHT MOUNT
REFLECTOR ASSEMBLY
RED SINGLE
LED LAMP
5/8-11 FLANGE HEAD
SERRATED NUT
1/4-20 X 1-1/2” HEX
HEAD CAP
SCREW
U-BOLT
1/4-20
LOCK NUT
FLASHER
CONTROL
MODULE
FRONT
