ASSEMBLY

2-9

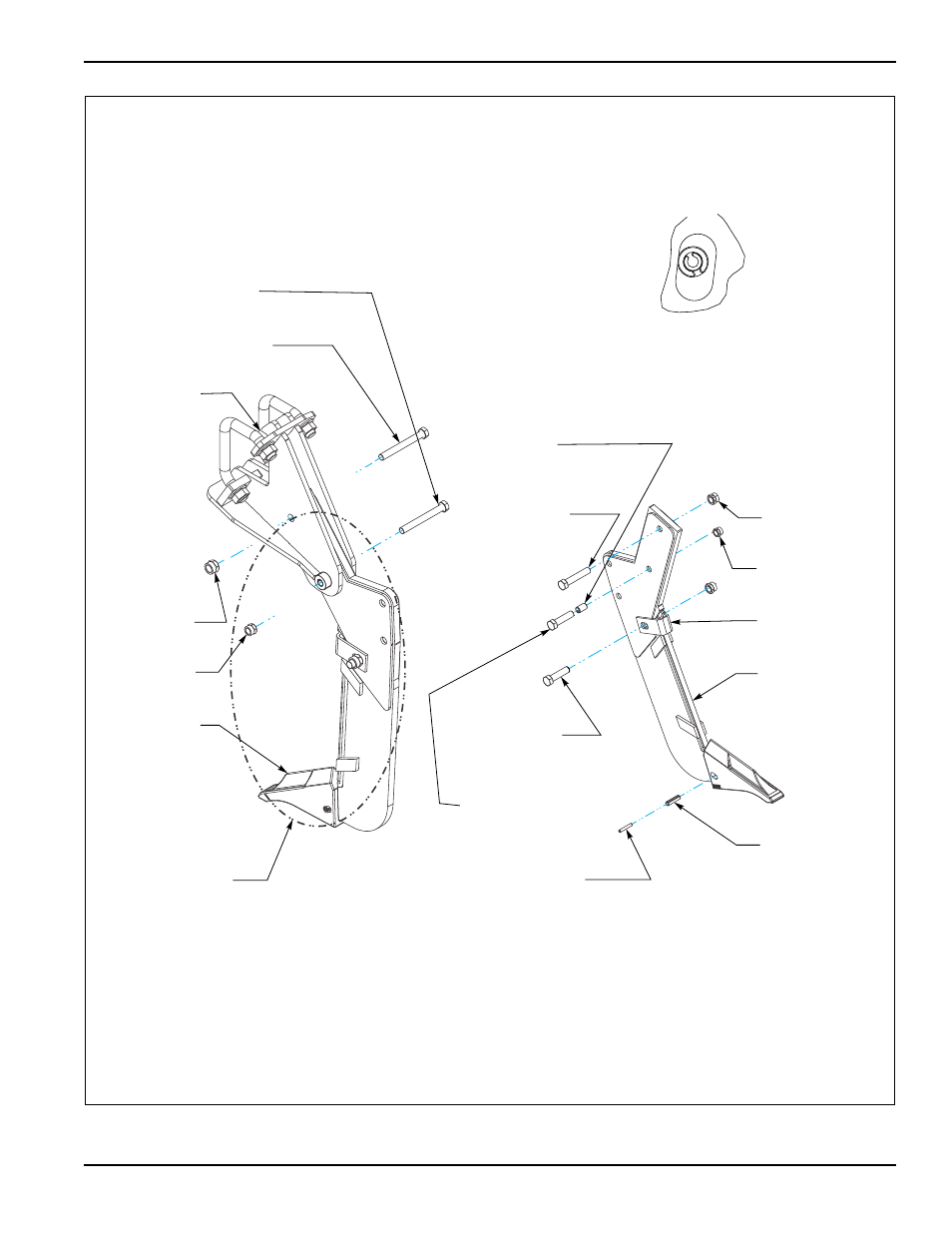

Figure 2-6: RSB Clamp and 3/4 Shank Assembly

5/8-11 X 5-1/2” HEX
HEAD CAP SCREW

3/4-10 X 4” HEX
HEAD CAP SCREW

RIGID CLAMP
ASSEMBLY

3/4-10
LOCK NUT

5/8-11
LOCK NUT

SHANK POINT
ASSEMBLY

SEE DETAIL A

m179965 op

DETAIL A

3/4-10
LOCK NUT

5/8-11
LOCK NUT

WEARSTRIP
BRACKET

WEARSTRIP

½ X 2” SPRING
SLOTTED PIN

CONNEX
BUSHING

3/4-10 X 4”
HEX HEAD
CAP SCREW

3/4-10 X 3”
HEX HEAD
CAP SCREW

5/8-11 X 5-1/2”
HEX HEAD
CAP SCREW

5/16 X 2” SPRING
SLOTTED PIN

PLACE PINS WITH
ENDS OPPOSITE
EACH OTHER
