Landoll SS/SSB/SSP/SSBP 8, 10, 12 Sure Stand Seeder - Manual (Page 22)

2-12 1P480
ASSEMBLY INSTRUCTIONS
Optional Equipment
Electronic Acre Meter Kit 5K745
Installation:
The acre meter, consisting of three main parts: the acre
meter, the pick-up and the magnet wheel, is mounted on
the left side of the front seedbox.
1. Use the acre meter bracket as a guide and drill two
13/32” holes into seedbox at location shown in
illustration. Then attach the acre meter bracket as
shown with two 3/8-16 x 1” capscrews, lock washers
and nuts. See Figure 2-12.
2. Attach the pick up switch bracket to the front of the
transmission as shown.
3. Attach the pick up switch to the top of the 5K714
bracket with two #8-32 x 1 1/4” machine screws, flat
washers, lock washers and nuts. Do not tighten
screws at this time. See Figure 2-12.

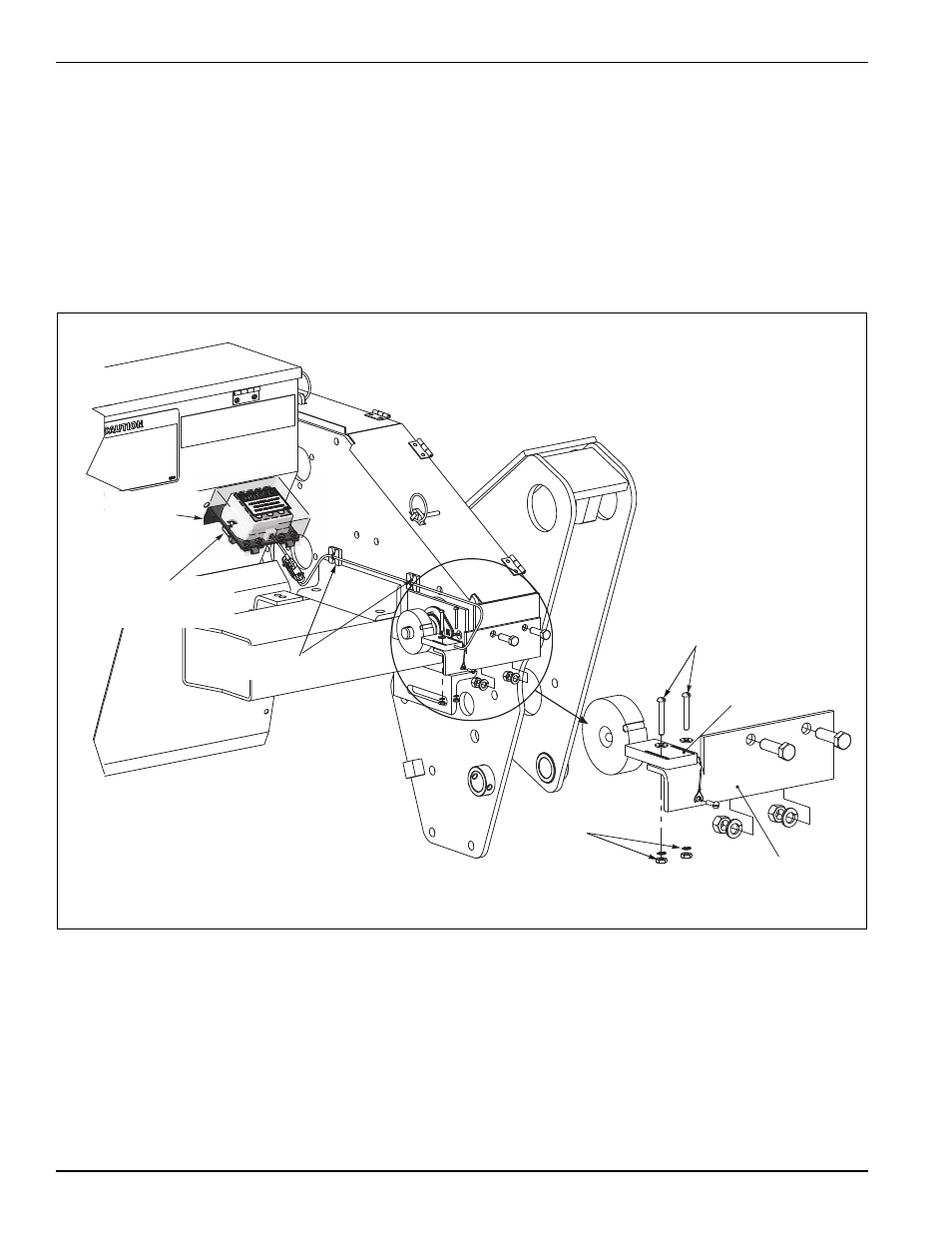

Figure 2-12: Electronic Acre Meter
4. Press the magnetic wheel onto the clutch shaft until it
is vertically centered with the pickup switch.
5. Adjust the pickup switch and bracket so the
centerline of magnet wheel and pick up switch are
horizontally and vertically aligned with maximum 1/8”
between magnet wheel and pick up switch. Firmly
tighten all screws. See Figure 2-13.
HHCS, 3/8-16 x 1”
Lock Washer, 3/8
Nut, 3/8-16
Pick up
Switch
Bracket
Screw,
#8-32 x 1 1/4”
Flat Washer, #8
Pick up
Switch
Adhesive
Mount Base
Acre Meter
Bracket
Lock Washer, #8
Nut, #8-32
