SAFETY INFORMATION

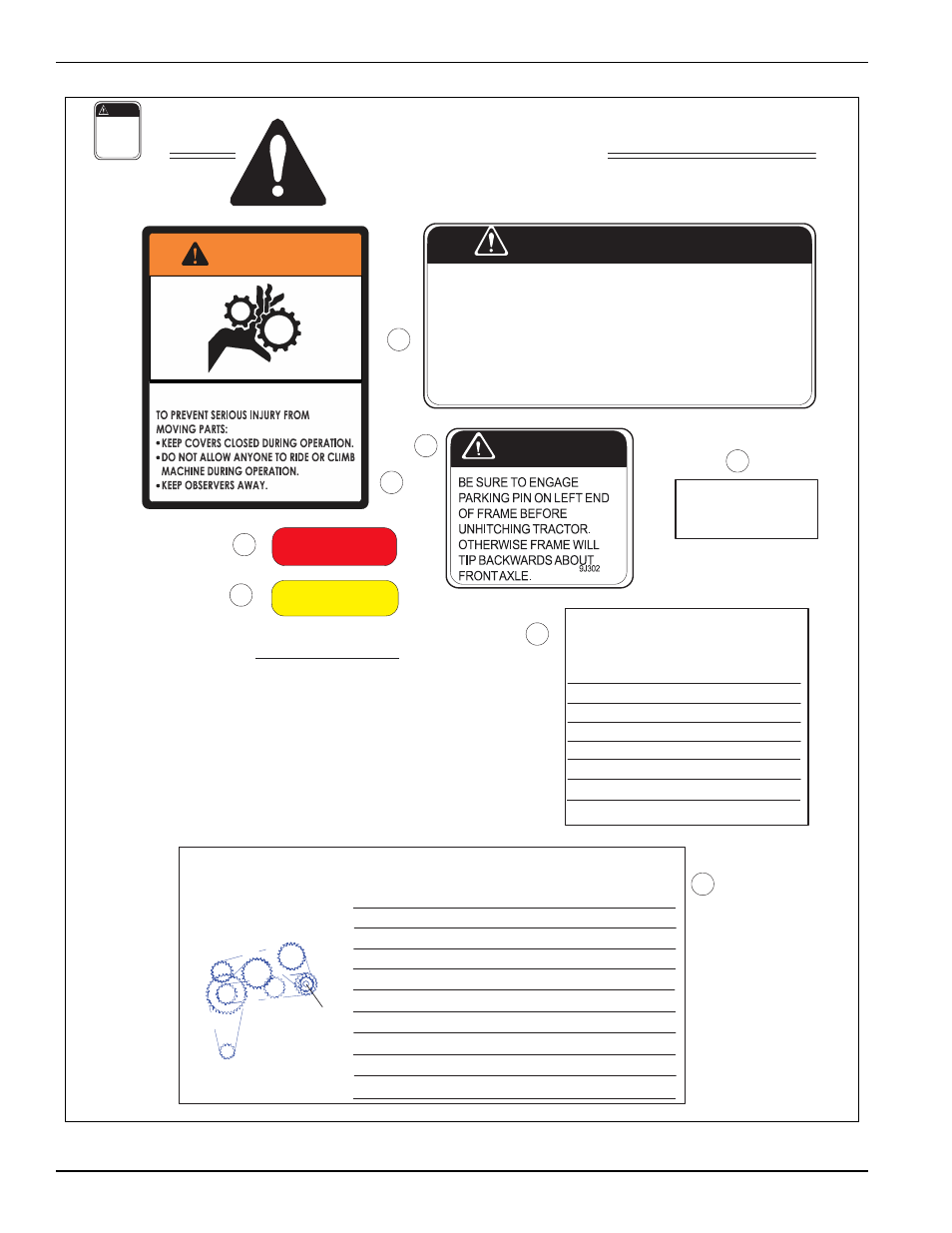

Figure 1-2: Safety Signs (1 of 2)
SAFETY DECALS
1.2K123 - Moving Parts Warning
2.8J310 -Caution Decal
3.9J302 -Caution, Engage Parking Pin
4.2J430 -Reflective Red
5.2J431 -Reflective Amber
6.9J301 - Parking Pin
7.7K434 - Rear Seed Chart
8.7K433 - Front Seed Chart (6 ft.)
7K454A - Front Seed Chart (4 ft., 5 ft.)
7
3
2
1
4
6
5
8
CAUTION
1. DO NOT LUBRICATE, ADJUST OR REPAIR WHEN MACHINE IS IN MOTION.
2. DO NOT TOW OR TRANSPORT FASTER THAN 15 MILES PER HOUR.
3. DO NOT RIDE OR ALLOW OTHERS TO RIDE ON THE MACHINE.
4.BLOCK UP ALL HYDRAULICALLY OR MECHANICALLY RAISED COMPONENTSTO
PREVENT UNINTENDED LOWERING OR LOWER THE MACHINE TO THE GROUND TO
MAKE ADJUSTMENT OR REPAIRS WHEN NOT IN USE.
5. KEEP ALL PERSONS AWAY FROM MACHINE DURING HITCHING AND OPERATING.
6. SLOW DOWN BEFORE MAKING SHARP TURNS OR USING THE BRAKES.
DRIVE SLOWLY OVER ROUGH GROUND, SIDE HILLS, AND AROUND CURVES TO AVOID TIPPING.
7. COMPLY WITH ALL LAWS WHEN TRANSPORTING THE MACHINE ON PUBLIC ROADWAYS.
8. INSTRUCT ALL OPERATORS IN THE SAFE OPERATION OF THE MACHINE.
REVIEW THE OPERATOR’S MANUAL FOR CORRECT PROCEDURES.
9. BLOCK IMPLEMENT TO PREVENT MOVEMENT WHEN UNHITCHED FROM TRACTOR.
10.KEEP ALL GUARDS AND SHIELDS IN PLACE WHILE MACHINE OR PARTS ARE IN MOTION.
8J310
CAUTION
PLANTING RATES FOR SEED METER (FRONT BOX) IN POUNDS PER ACRE
CALIBRATION
1.Rates are for 13-Tooth Driver Sprocket.
2.Rates are intended as a guide only. Variations in size and cleanliness will affect rates.
Check acreage & pounds of seed used for best results.
Machine May Be Calibrated for Unlisted Seed as Follows:
1.Remove chain between 17 Tooth and 19 Tooth Sprockets.
2.Raise machine & lock in transport position.
3.Place a canvas or tarp in position to catch seed.
4.Turn 3/4 Hex on Sprocket shaft 795 revolutions counter-
clockwise. 159 turns be used if results are adjusted as
shown in Step #5.
5.Weigh seed for approximate planting rate.
Multiply weight by 5 if only 159 Turns were used.
7K433 For 6 Foot Sure Stand Seeder
-
1
5
7
8
11
12
13
1*
8*
13
20
25
31
36
43
4
8
11
15
20
24
27
31
1 2 3
4
5
6
7
8
4
8
15
23
27
35
41
46
1
7
12
17
23
27
32
36
4
8
15
24
29
36
41
48
4
11
17
24
36
43
53
61
1
4
5
8
11
13
16
17
1
5
8
13
17
23
25
29
4
11
15
23
29
36
41
48
4
8
13
20
29
33
41
51
-
1
4
5
7
8
11
12
4
12
19
25
35
41
49
58
4
8
13
17
23
28
32
36
1
7
11
15
19
24
27
31
4
8
17
23
31
39
48
52
1
7
12
17
24
29
36
41
4
8
15
23
27
36
43
48
1
5
8
13
19
23
25
29
4
11
17
25
32
41
49
55
1
11
17
23
29
37
44
52
4
8
13
19
25
32
39
46
4
11
17
24
31
37
44
52
1
4
7
8
11
12
13
15
1
4
7
11
12
15
17
23
-
4
7
8
12
15
19
23
4
7
12
19
24
31
37
43
Indicator Setting
Alfalfa (Uncoated
Bahia
Bermuda (Hulled)
Birdsfoot Trefoil (Broadleaf)
Blue Grass (Kentucky)
Blue Grass (Park Kentucky)
Blue Grass (Sherman Big)
Canola
Centipede
Clover (Alsike, Ladino, Sweet, Red)
Clover (Alyce, Calif. Bur., Crimson, Hubam)
Crested Wheat
Crown Vetch
Flax
Harding Grass
Klein Grass
Lespedeza (Korean Unhulled)
Lespedeza (Korean Hulled)
Lespedeza (Sericea Unhulled)
Lespedeza (Sericea Hulled)
Love Grass (Weeping)
Love Grass (Sand)
Millet
Red Top
Reed Canary Grass
Switch Grass (Cleaned and Hulled)
Timothy
*WILL CRACK SOME SEEDS AT
THESE SETTINGS
NOT RECOMMENFDED: LENTILS,
SORGUM, SUDAN GRASS
Tightener
Driver
13T
Idler
3/4
Hex
23T
26T
18T
19T
13T
18T
17T
34T
SS6 & SS4 SERIES DECALS
PARKING
PIN
9J301
CAUTION
PLANTING RATES FOR AGITATOR (REAR BOX) IN POUNDS PER ACRE
1.Rates are for 13-Tooth Driver Sprocket.
2.Rates are intended as a guide only. Variations in size and
cleanliness
will affect rates. Check acreage & pounds
of seed used for best results.
3.Calibration Procedure is the same as for Meter Box.
1 2 3
4
5
6
Indicator Setting
Bent (Highland)
Bluegrass (Sherman Big)
Blue Stem (Pawnee Big)(w/Beards)
Bluestem (Bonilla Big)(w/o Beards)
Brome (Erect Meadow)
Brome (Northern)
Brome (Southern)
Buffalo Grass
Dahlia Grass
Dallis Grass
Fescue
Grama (Side Oats)
Indian Grass
Johnson Grass
Orchard Grass (Unhulled)
Rescue Grass
Rye Grass
Triticale
Triticale
5799
2
11
32
1
2
3
4
8
9
-
1
3
8
15
23
2
5
12
21
30
2
3
7
12
15
1
2
6
9
11
2
16
42
107
2
8
25
2
9
24
51
2
7
23
69
119
-
2
4
6
10
14
-
1
2
3
3
5
1
2
3
7
1
5
15
36
2
3
8
13
18
1
7
23
58
94
64
120
293
Requires
Brush
Agitator
7K434
Not Recommended:Bluestems other than shown, Zoro
Yes
No
Yes
Yes
No
No
No
No
No
No
No
No
Yes
No
No
No
No
No
Yes
WARNING
MOVING PART HAZARD
2K123
