Landoll SSP6 SURE STAND GRASS SEEDER - Manual (Page 15)

ASSEMBLY OF OPTIONAL EQUIPMENT
2-5
5. At the rear of the seeder, mount the L-shaped
bracket to the end plate with a 5/8-11 NC x 1 1/2”
capscrew and locknut as shown. See Figure 2-5. The
small shoulder on the bracket should butt up against
the end plate of the seeder frame. On top of this
bracket mount the pickup with two #8-32 x 1 1/4”
machine screws, flat washers, lockwashers, and
nuts. 6. Extend its longer wire up toward the side of the
seedbox to meet the wire from the acre meter. Attach
its shorter wire to the ground on the bracket.
(Remove paint under the terminal to assure a good
electrical connection.)
7. Press the magnet wheel firmly onto the shaft.
IMPORTANT
There should be a gap of 1/8” between the pickup
and the magnet wheel.
8. Plug the acre meter cable into the pick-up box cable.

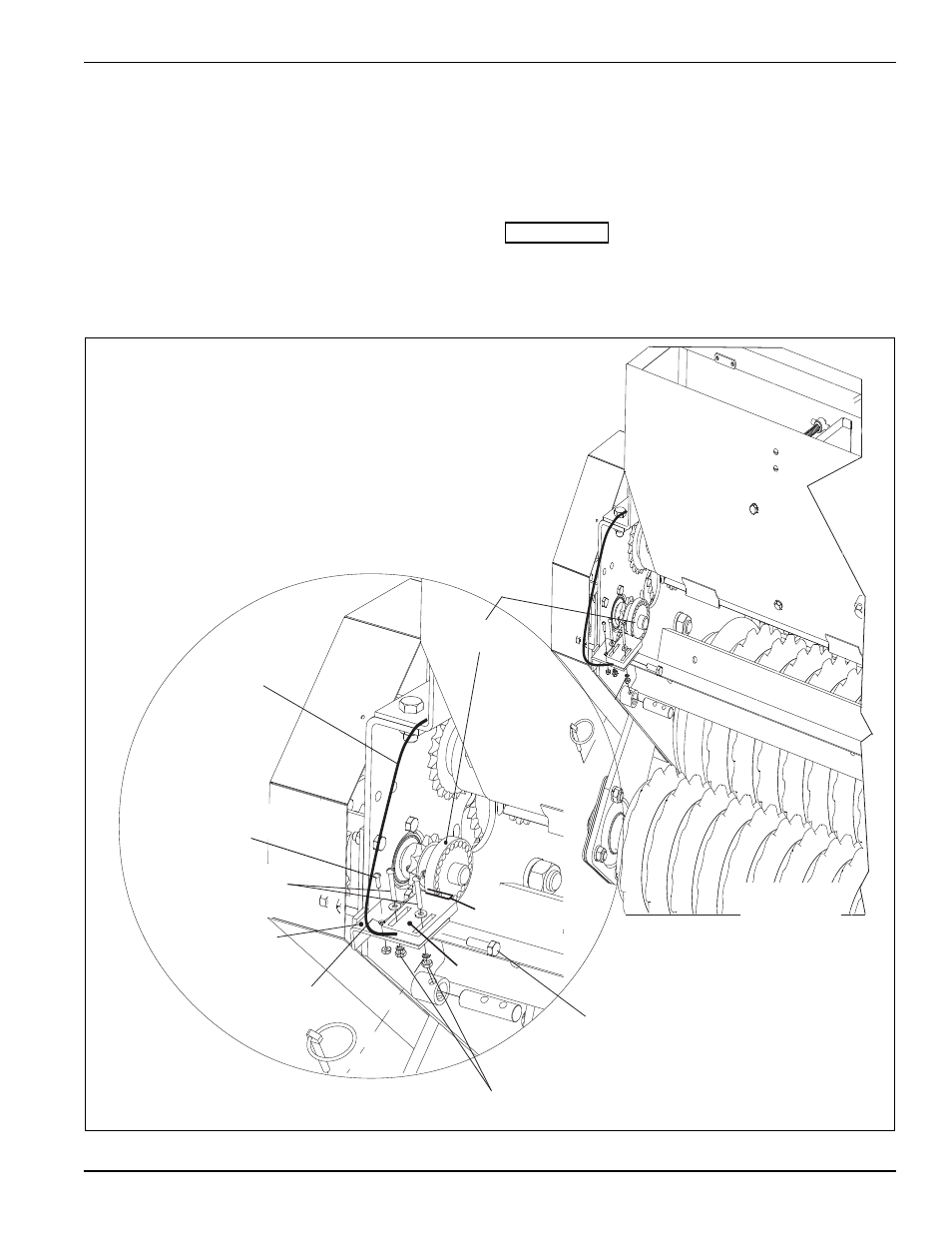

Figure 2-5: Acre Meter Rear Installation (2 of 2)
#8 LOCKWASHER
GROUND
WIRE
CAPSCREW,
5/16-18 NC x 1”
LOCKWASHER, 5/16”
STOVER NUT, 5/16”
BRACKET
MAGNET
WHEEL
MACHINE SCREW,
#8-32 x 1 1/4”
#8 FLAT WASHER REAR OF
SEEDER
PICK-UP
NUT, #8-32
MACHINE SCREW,
#6-32 x 1/2”
NUT, #6-32
1/8” GAP
PICK-UP BOX
CABLE
