OPERATION
Adjustment of the Wheel Track
Remover
The depth of the wheel track removers can be adjusted.
Loosen the (4) 1/2” capscrews, lockwashers and nuts
that secure the clamps to the coil tine supports. Adjust
the supports up or down to the desired depth and then
retighten the nuts on the screws. Do this for each pipe
and tine assembly. See Figure 3-7.

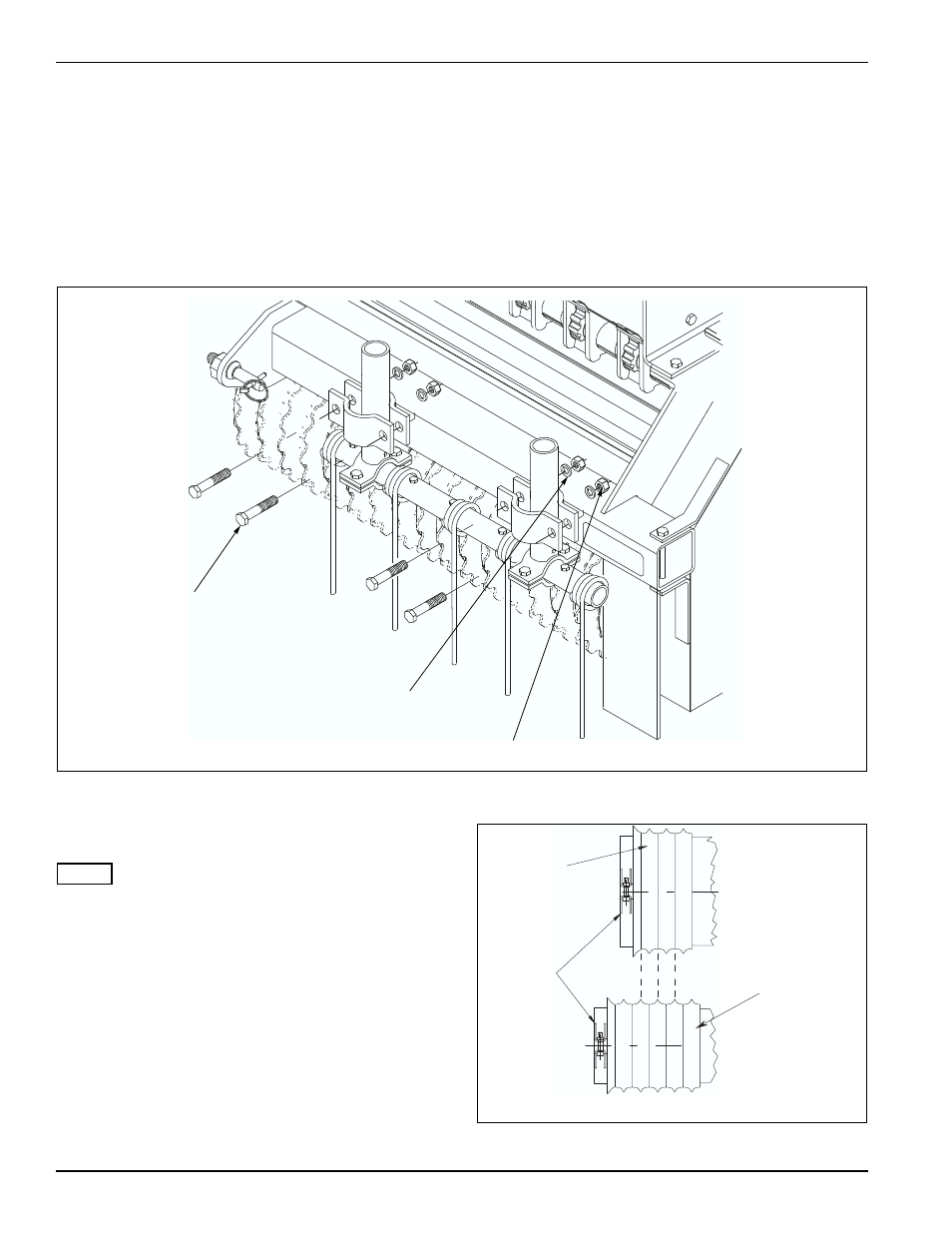

Figure 3-7: Wheel Track Remover
Roller Wheels
NOTE
Failure to locate the clamp band bolt over the weld will
cause the clamp band to loosen and slide.
Adjust the front roller wheels first. Loosen clamp bands
and slide the wheels snug against each other, centering
the entire assembly under the deflector shields. Locate
the bolt in the clamp band over the weld on the pipe.
Slide the clamp band against the end wheel and tighten
the clamp band bolt.
To adjust the rear roller wheels follow the front wheel
procedure. Start aligning the peaks of the rear wheels
with the valley of the front wheels at the center of the rear
roller. This will provide the best alignment of worn
wheels. See Figure 3-8.
Figure 3-8: Roller Wheels
CAPSCREW
1/2-13 NC x 1 1/2”
LOCKWASHER, 1/2”
NUT, 1/2”
FRONT
ROLLERS
REAR
ROLLERS
AXLE
CLAMPS
