2-4 7K555
ASSEMBLY OF OPTIONAL EQUIPMENT
Acre Meter (Optional)
The acre meter, consisting of three main parts; the acre
meter, the pick-up, and the magnet wheel, is mounted on
the left front side of the seedbox.
1. Drill 13/32” holes into seedbox at location shown.
See Figure 2-4.
2. Next, use 3/8-16 NC x 1” capscrews, lockwashers,
and nuts to attach the bracket which holds the acre
meter, as shown, onto the left front of the seedbox.
3. Mount the acre meter onto this bracket with #10-24 x
1” machine screws, lockwashers and nuts.
4. Then run the wire from the bottom of the meter down
the side of the seed box and along its left side. Use
mounting bases to hold the wire in place. Direct it
across the plate which attaches the seedbox to the
endplate. See Figure 2-4.

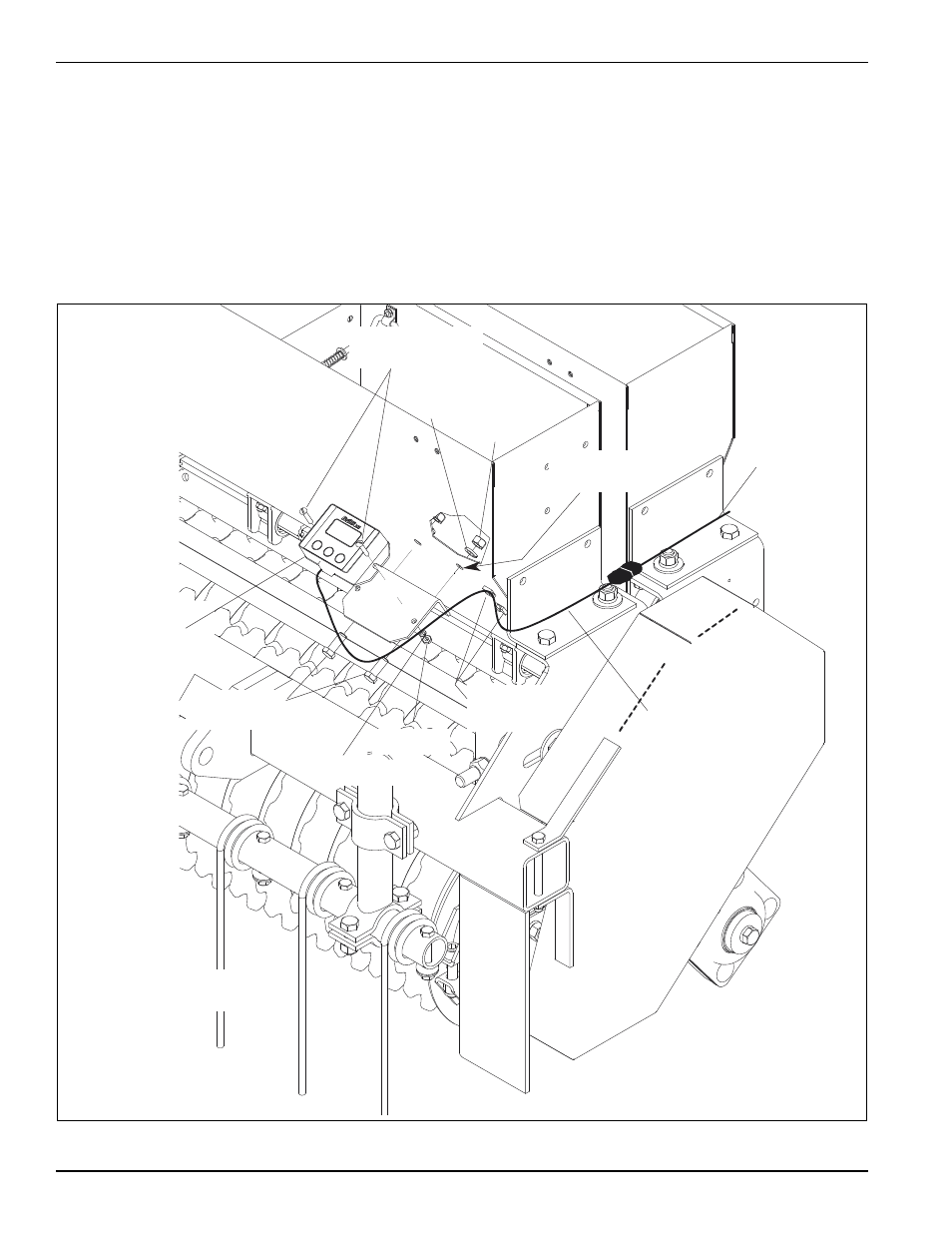

Figure 2-4: Acre Meter (1 of 2)
NUT, 3/8”
DRILL 13/32”
HOLES
LOCKWASHER, 3/8”
#10
LOCKWASHER
NUT, #10-24
PICK-UP BOX
CABLE
ACRE METER
CABLE
MOUNTING
BASE CAPSCREW,
3/8-16NC x 1”
FRONT OF
SEEDER
ACRE METER
ASSEMBLY
MACHINE SCREW,
#10-24 x 1”
