PREVENTIVE MAINTENANCE & ADJUSTMENT
Roller Wheels
Occasionally it is necessary to loosen clamp bands and
tighten roller wheel assemblies. As nearly as possible,
peaks on rear wheels should line up with valleys on the
front wheels. This requires adjusting both end clamps on
the rear axle drum.
Adjustment Procedure
Adjust the front roller wheels first. Loosen clamp bands
and slide wheels snug against each other, centering the
entire assembly under the deflector shields. Locate the
bolt in the clamp band over the weld on the pipe. Slide
the clamp band against the end wheel and tighten the
clamp band bolt. See Figure 4-6.
To adjust the rear roller wheels follow the front wheel
procedure. Start aligning the peaks of the rear wheels
with the valley of the front wheels at the center of the rear
roller. This will provide the best alignment of worn
wheels.

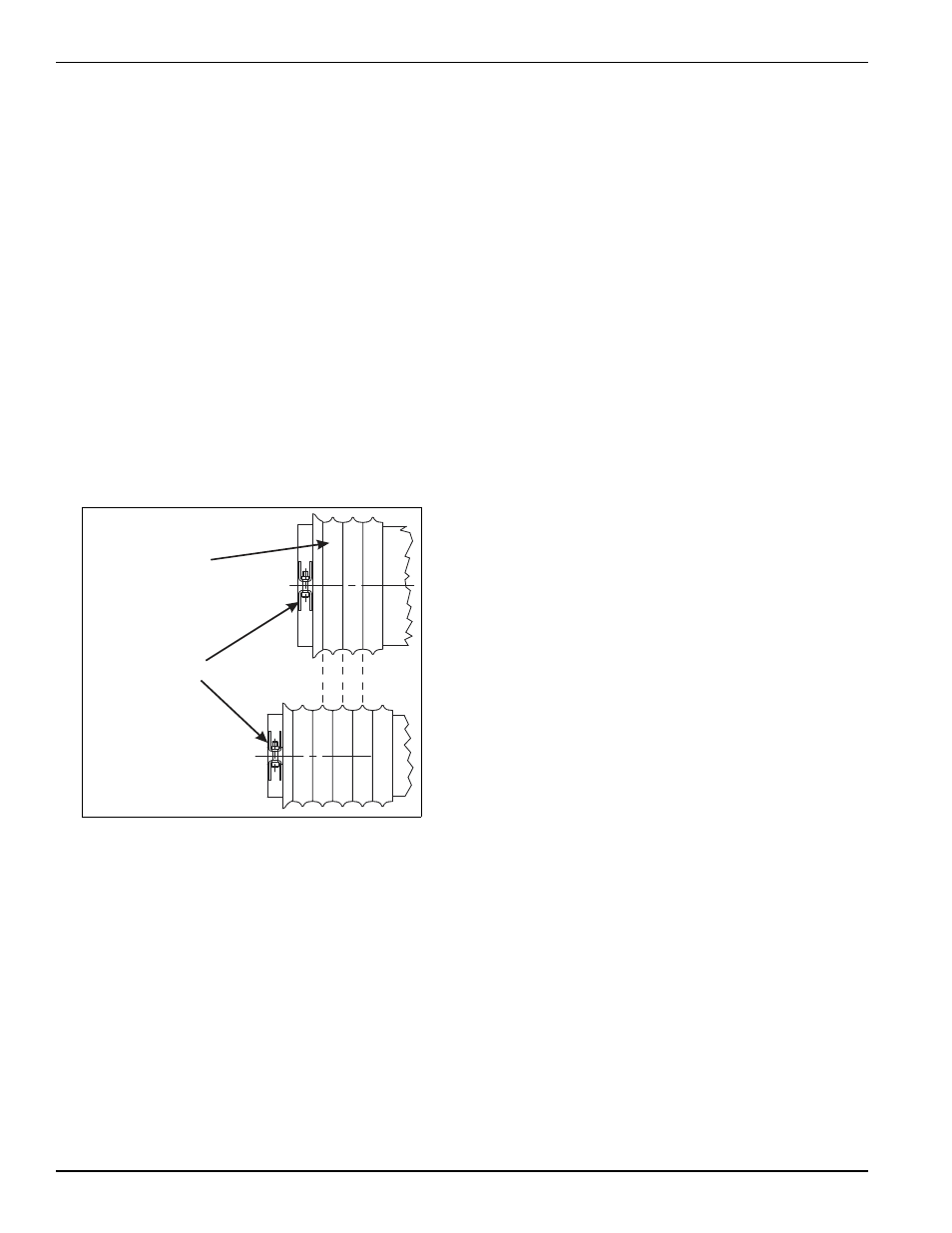

Figure 4-6: Roller Wheel Adjustment
FRONT
ROLLERS
CLAMP BANDS
