2-16 1P342
ASSEMBLY INSTRUCTIONS
Electronic Acre Meter Kit
(Optional)
NOTE
The acre meter consists of three main parts, the acre
meter, the pick-up and the magnet wheel.
1. Use the acre meter bracket as a guide and drill two
13/32” holes into seedbox at location shown in
illustration. Then attach the acre meter bracket as
shown with two 3/8-16 x 1” capscrews, lock washers
and nuts. See Figure 2-16.
2. Attach the pick up switch to the top of the 5K714
bracket with two 8 -32 x 1 1/4 machine screws, flat
washers, lock washers and nuts. Do not tighten
screws at this time. See Figure 2-17.
3. Press the magnetic wheel onto the clutch shaft until it
is vertically centered with the pickup switch.

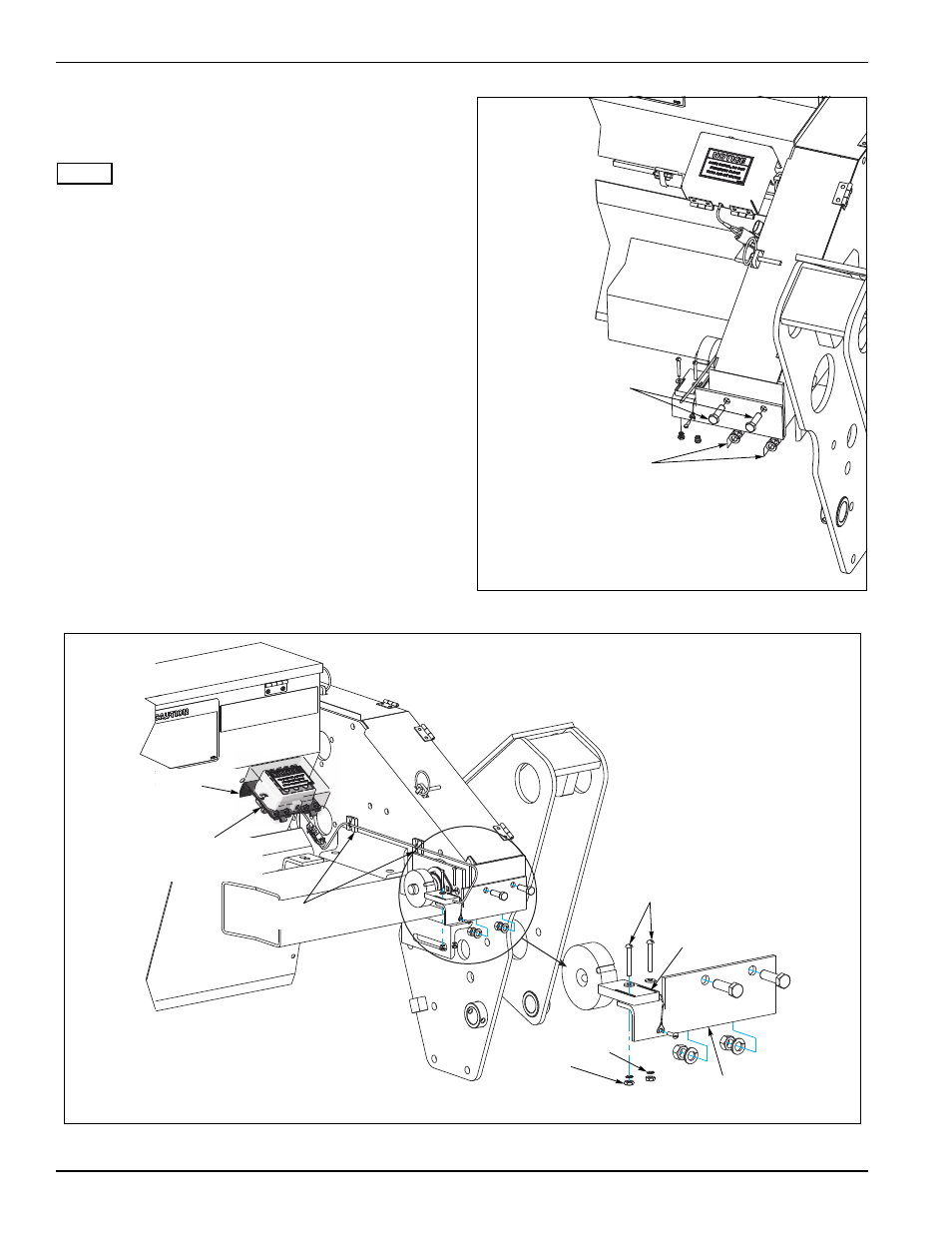

Figure 2-16: Electronic Acre Meter (1 of 3)
Figure 2-17: Electronic Acre Meter (2 of 3)
HHCS,
3/8-16 X 1 1/4”
Lock Washer, 3/8”
Nut, 3/8”
HHCS, 3/8-16 X 1”
Lock Washer, 3/8
Nut, 3/8-16
Pick Up
Switch
Bracket
Machine Screw,
#8-32 X 1 1/4”
Flat Washer, #8
Pick Up
Switch
Adhesive
Mount Base
Acre Meter
Bracket
Lock Washer, #8
Nut, #8-32
