2-4 1P342
ASSEMBLY INSTRUCTIONS
4. After the drawbar is attached route the hoses along
drawbar toward the tractor.
Use the hose clamps
provided to anchor the hoses to the drawbar. See
Figure 2-4.

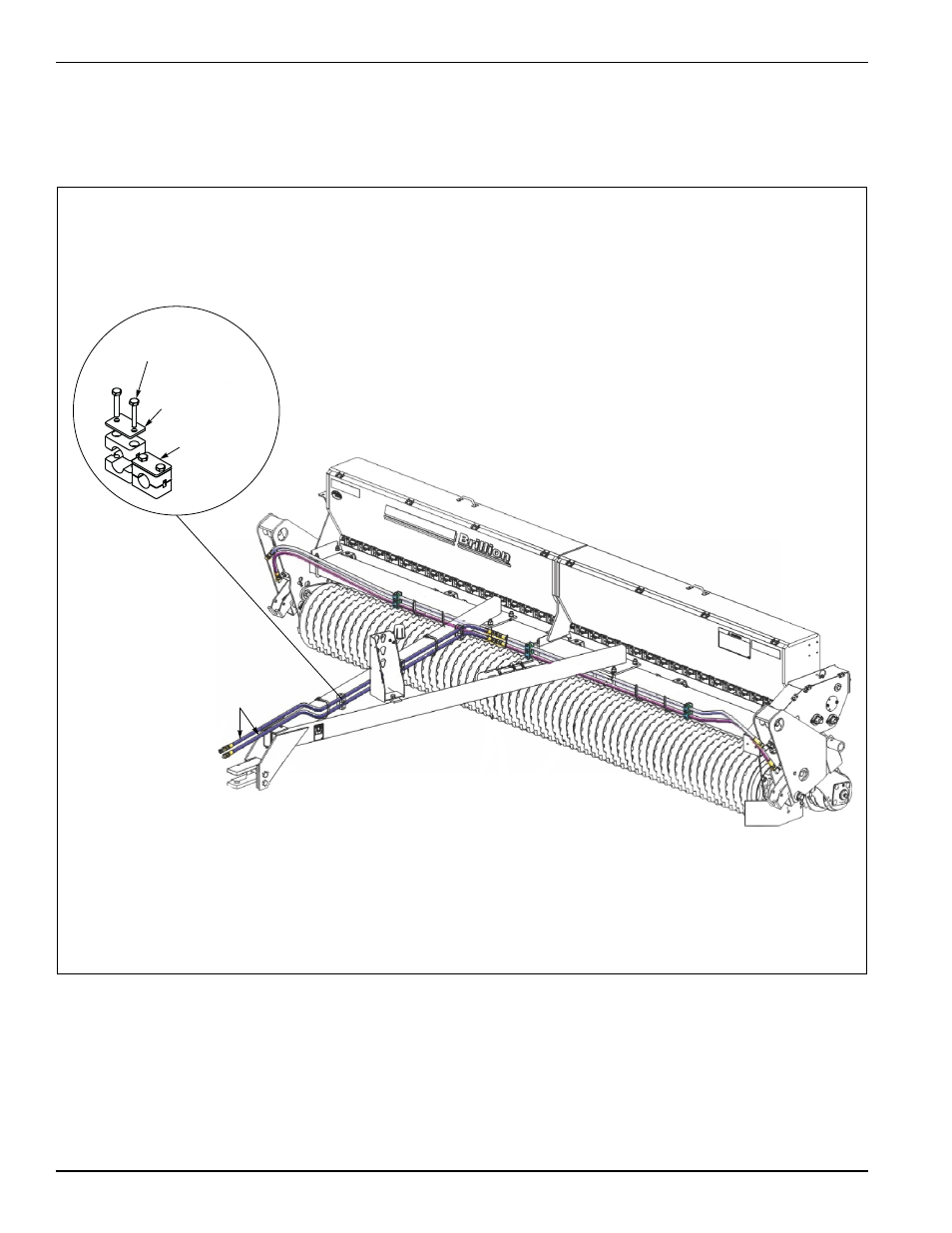

Figure 2-4: Drawbar Hydraulic Hoses
5. Install hub and spindles into the wheel arms and
secure in outside hole farthest from the hub. Secure
with 1/2-13 x 3” Screws and Locknuts. See
Figure 2-5.
6. Install wheels and tires to hubs using (10) 1/2-20 x 1
Wheel Bolts.
Charge the Hydraulic System.
For a more detailed view, refer to the Hydraulic
Schematic Diagram. See Figure 4-7.
Top Plate
Clamp Pair
HHCS, 1/4-20 x 1/2
Hydraulic
Hoses
