ASSEMBLY INSTRUCTIONS
2-19
S-Tine Tire Track Remover
(Optional)
1. Attach brackets to frame with u-bolts (1/2” x 4-1/2”
centers x 7-1/2” deep), lock washers, and nuts. Note
that long ends of brackets are downward. Brackets
should be about 53” from center of machine. See
Figure 2-20.
2. Attach tube to brackets using straps and bolts
(1/2” x 6”), lock washers, and nuts.
3. Locate and install S-tines as needed to cover tractor
tire tracks. Suggested pattern is to use 1-3/8” point
on center tine and 2-1/2” points on each side. If
needed, additional tines may be purchased and
installed. This kit must be used with standard 9J442
long three point hitch on pickup machines. The Wheel
Track Remover is furnished with 6 S-tines. More or less
tines may be used as required.
NOTE
S-tines should not be operated any deeper than
necessary to remove tractor tire tracks. Otherwise, moist
soil is brought up which will stick to the rollers, draft load
is increased, and under some conditions, tines may
deflect back to rollers and break.

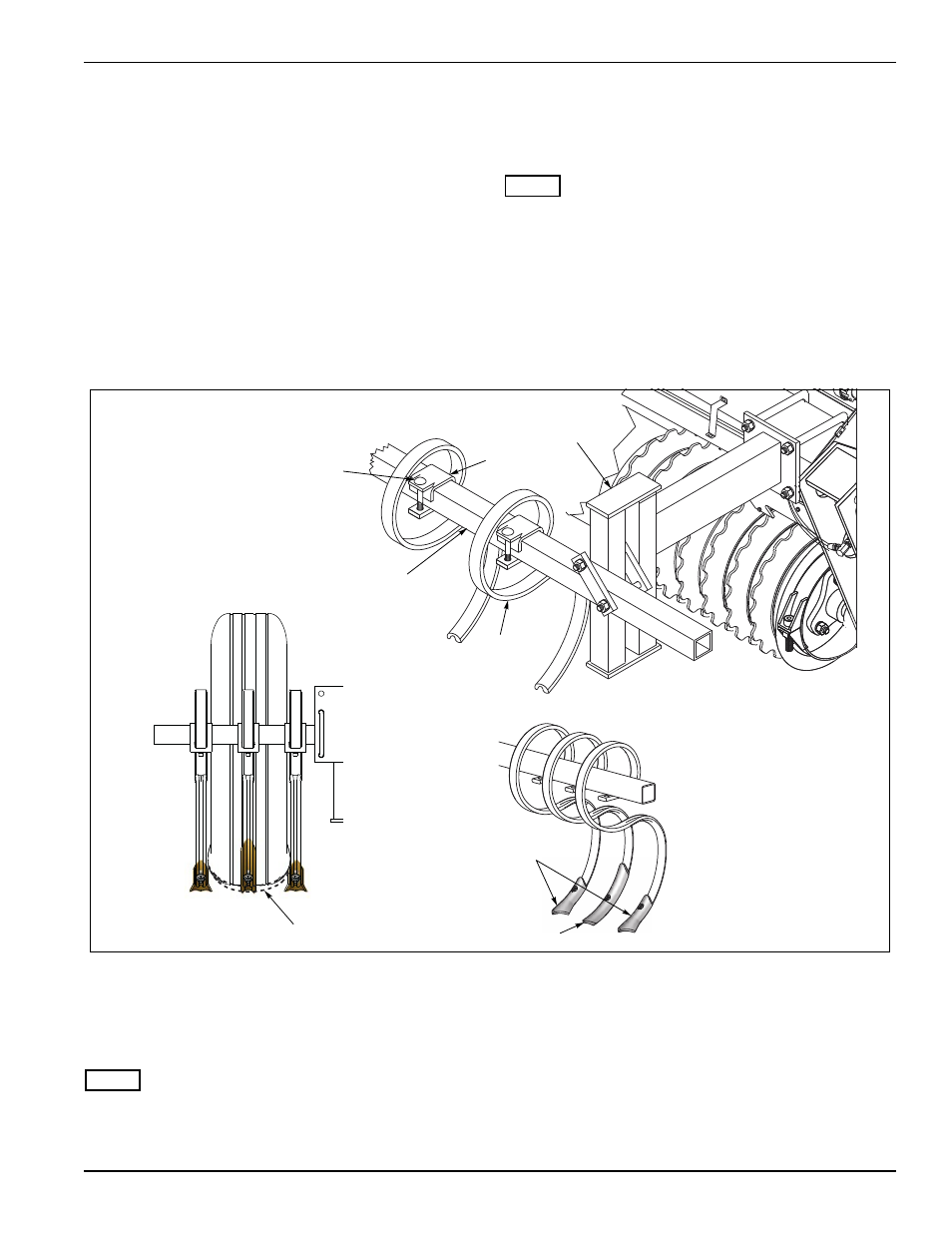

Figure 2-20: S-Tine Setup
Coil Tine Track Remover
(Optional)
NOTE
Cannot be used with the Scraper Kit
1. Assemble the coil tines and arm weldments to the
1-1/2” diameter x 29” bar. The arm weldments may
be placed anywhere along the bar, but it is suggested
that they be mounted in the second hole from the
right end, and the third hole from the left end. (Left
end and right end designations are those related to
the operator when sitting in the operating position).
2. Mount 6 of the coil tines to the bar with 3/8” x 2- 1/2”
capscrews, flat washers, lockwashers, and nuts.
Tractor Tire Depression
Tooth Tube
Bracket
Assembly
S-Tine
Clamp Carriage
Bolt
2 1/2 Point
1 3/8 Point
SUGGESTED SETTING
