LCS13151
INSTALL SPACERS ON
DISC CYLINDER TO PREVENT COMPLETE
RETRACTION OF CYLINDER. DISC SCRAPER
BAR WILL HIT SHANK MOUNT IF CYLINDER
IS COMPLETELY COLLAPSED.

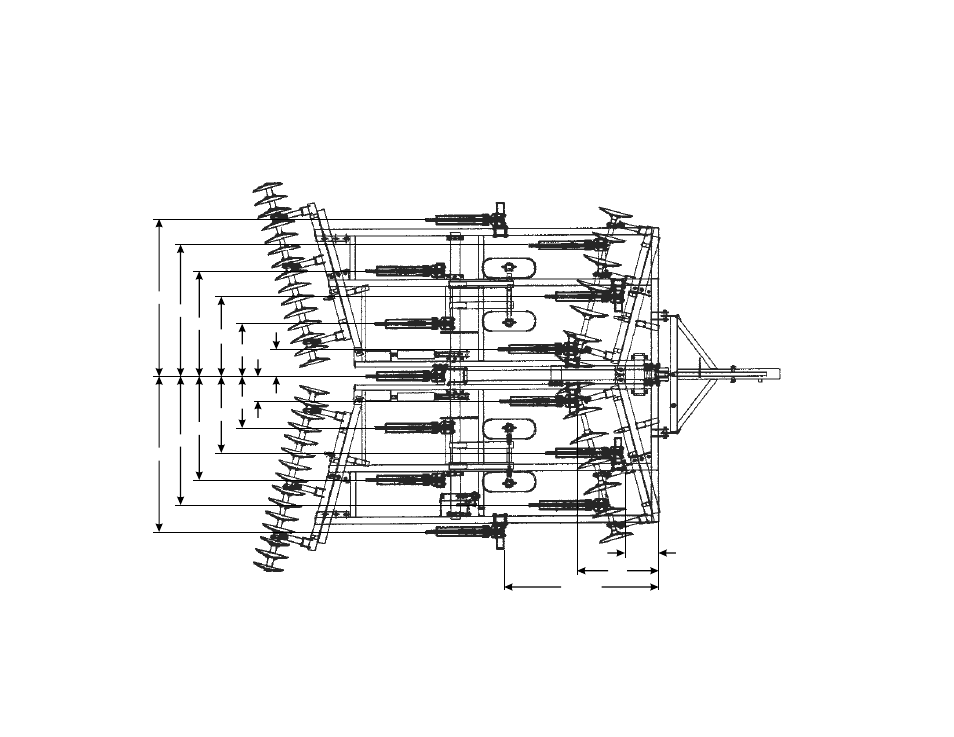

SHANK LOCATIONS FOR LCS13151
13 SHANKS WITH 15 INCH SPACING
89-1/2”
47”
21”
15”
15”
30”
30”
45”
45”
60”
60”
75”
75”
90”
90”
