INSTALL SPACERS ON
DISC CYLINDER TO PREVENT COMPLETE
RETRACTION OF CYLINDER. DISC SCRAPER
BAR WILL HIT SHANK MOUNT IF CLYINDER
IS COMPLETELY COLLAPSED.

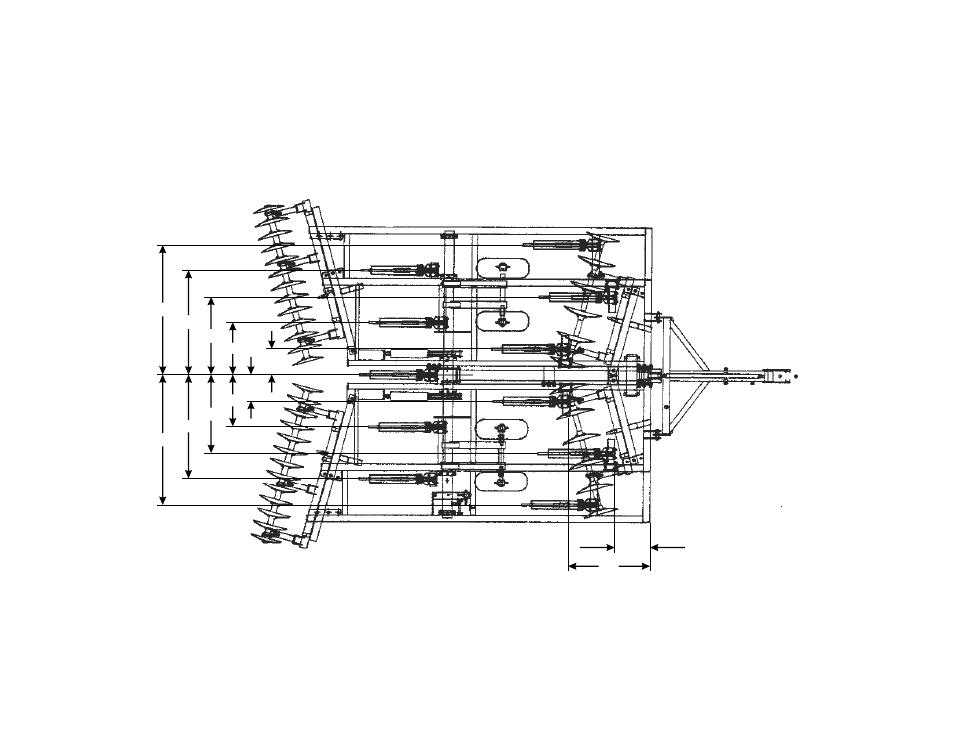

SHANK LOCATIONS FOR LCS11151
11 SHANKS WITH 15 INCH SPACING
21”
47”
15”
15”
30”
30”
45”
45”
60”
60”
75”
75”
