Lcs9151 – Landoll LCS13151 LANDCOMMANDER User Manual
Page 2

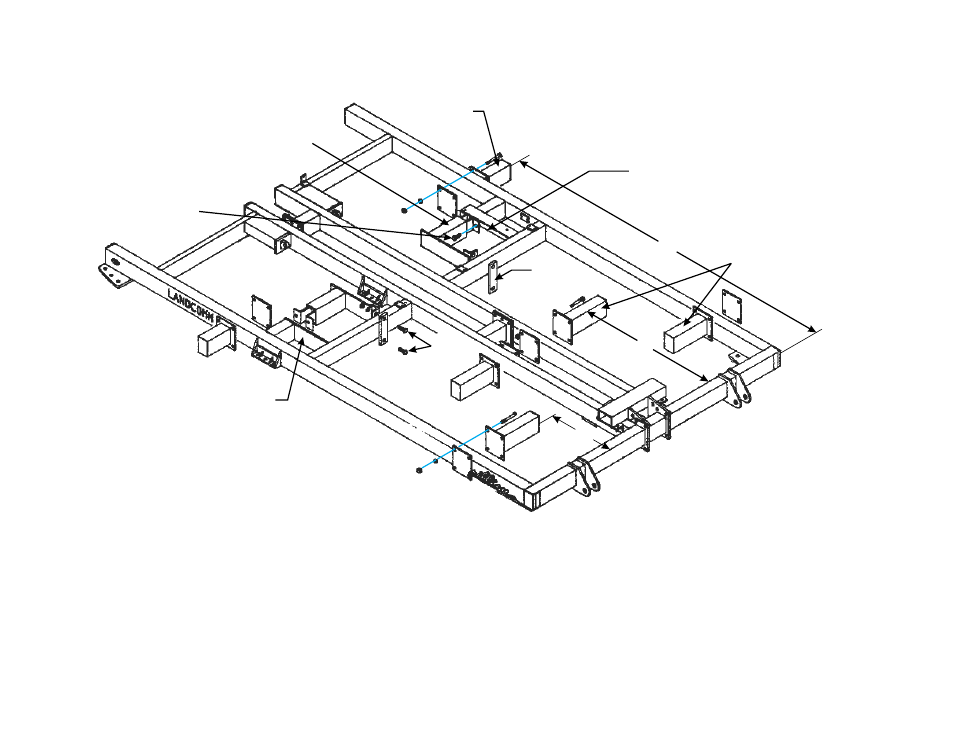

LCS9151
1K733
EXT. 9”
DRILL HOLES THROUGH LEG OF
ANGLE TO ATTACH THIS MOUNTING
BRACKET TO FRAME, OR WELD
MOUNTING BRACKET TO THE ANGLE.
1K806
EXT. 14”
124”
47”
3K672
21-1/2”
1J588
3/4 X 5
DRILL HOLES THROUGH THIS
PLATE TO ATTACH THIS MOUNTING
BRACKET TO FRAME, OR WELD
MOUNTING BRACKET TO THE FRAME.
1D423
3/4 X 1-3/4
3K862
BRACKET
TO ASSEMBLE AN LCS9151, FOLLOW ALL THE ASSEMBLY INSTRUCTIONS FOR LCS5301 EXCEPT:
1. DO NOT ASSEMBLE FRAME TUBES TO THE FRAME.
2. USE PLATES, BOLTS AND NUTS FROM FRAME TUBES TO ATTACH EXTRA EXTENSIONS.
3. ATTACH MOUNTING BRACKETS TO THE FRAME AS SHOWN.
4. SEE PAGES 2 AND 3 OF REPAIR PARTS CATALOG FOR IDENTIFICATION OF FRAME PARTS.
